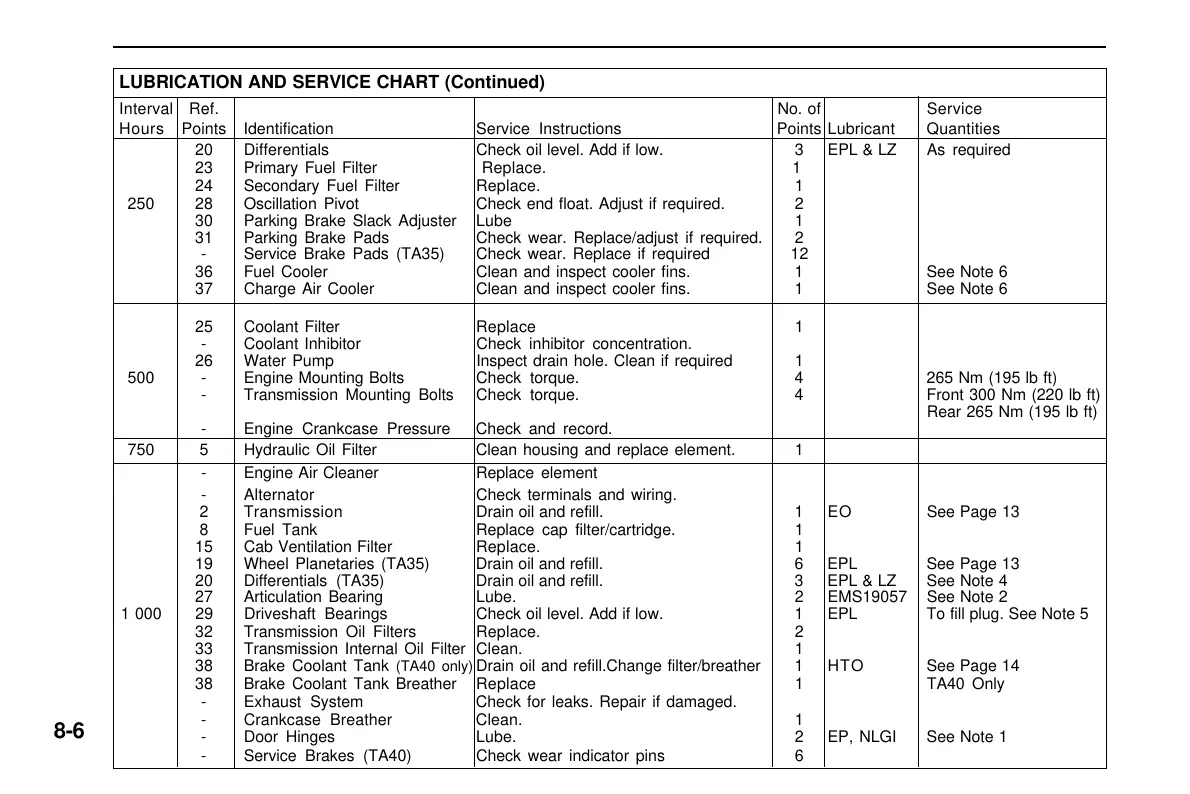

LUBRICATION AND SERVICE CHART (Continued)
Interval Ref. No. of Service
Hours Points Identification Service Instructions Points Lubricant Quantities
20 Differentials Check oil level. Add if low. 3 EPL & LZ As required
23 Primary Fuel Filter Replace. 1
24 Secondary Fuel Filter Replace. 1
250 28 Oscillation Pivot Check end float. Adjust if required. 2
30 Parking Brake Slack Adjuster Lube 1
31 Parking Brake Pads Check wear. Replace/adjust if required. 2
- Service Brake Pads (TA35) Check wear. Replace if required 12
36 Fuel Cooler Clean and inspect cooler fins. 1 See Note 6
37 Charge Air Cooler Clean and inspect cooler fins. 1 See Note 6
25 Coolant Filter Replace 1
- Coolant Inhibitor Check inhibitor concentration.
26 Water Pump Inspect drain hole. Clean if required 1
500 - Engine Mounting Bolts Check torque. 4 265 Nm (195 lb ft)
- Transmission Mounting Bolts Check torque. 4 Front 300 Nm (220 lb ft)
Rear 265 Nm (195 lb ft)
- Engine Crankcase Pressure Check and record.
750 5 Hydraulic Oil Filter Clean housing and replace element. 1
- Engine Air Cleaner Replace element
- Alternator Check terminals and wiring.
2 Transmission Drain oil and refill. 1 EO See Page 13
8 Fuel Tank Replace cap filter/cartridge. 1
15 Cab Ventilation Filter Replace. 1
19 Wheel Planetaries (TA35) Drain oil and refill. 6 EPL See Page 13
20 Differentials (TA35) Drain oil and refill. 3 EPL & LZ See Note 4
27 Articulation Bearing Lube. 2 EMS19057 See Note 2
1 000 29 Driveshaft Bearings Check oil level. Add if low. 1 EPL To fill plug. See Note 5
32 Transmission Oil Filters Replace. 2
33 Transmission Internal Oil Filter Clean. 1
38 Brake Coolant Tank (TA40 only) Drain oil and refill.Change filter/breather 1 HTO See Page 14
38 Brake Coolant Tank Breather Replace 1 TA40 Only
- Exhaust System Check for leaks. Repair if damaged.
- Crankcase Breather Clean. 1
- Door Hinges Lube. 2 EP, NLGI See Note 1
- Service Brakes (TA40) Check wear indicator pins 6
