9-11

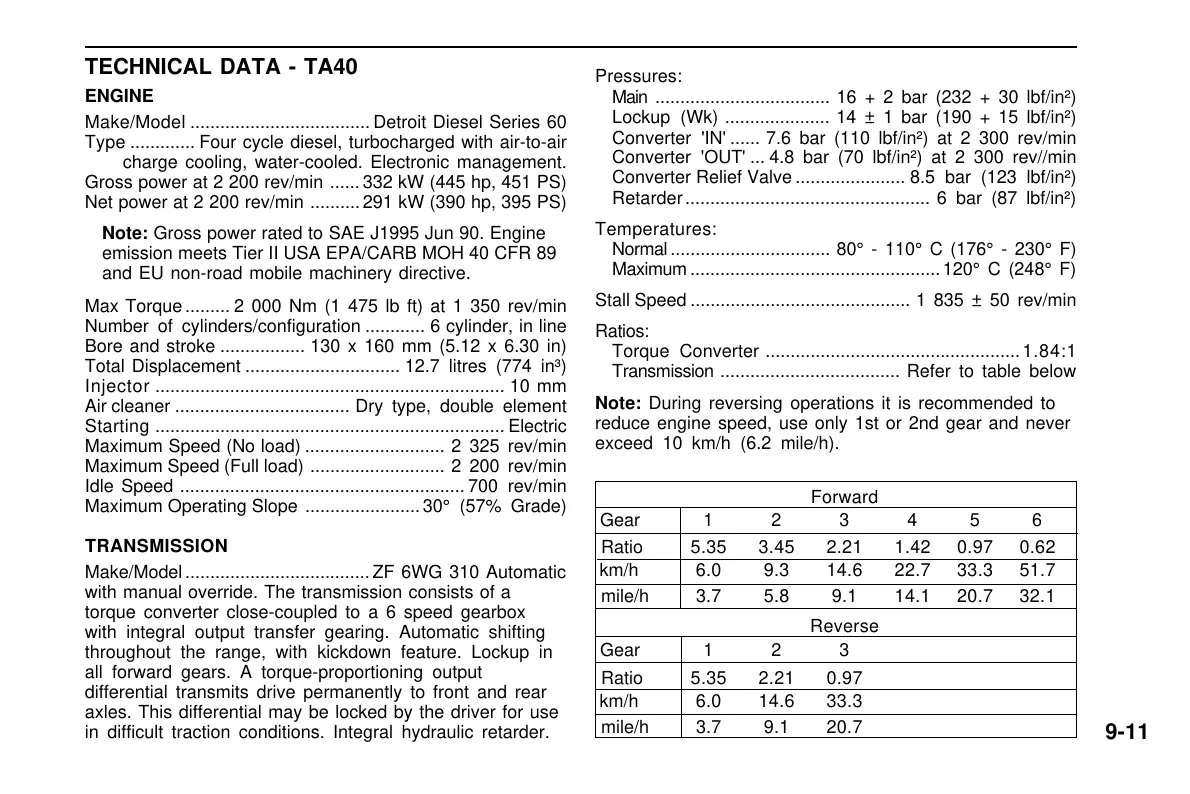

TECHNICAL DATA - TA40
ENGINE
Make/Model .................................... Detroit Diesel Series 60
Type ............. Four cycle diesel, turbocharged with air-to-air
charge cooling, water-cooled. Electronic management.
Gross power at 2 200 rev/min ...... 332 kW (445 hp, 451 PS)
Net power at 2 200 rev/min .......... 291 kW (390 hp, 395 PS)
Note: Gross power rated to SAE J1995 Jun 90. Engine
emission meets Tier II USA EPA/CARB MOH 40 CFR 89
and EU non-road mobile machinery directive.
Max Torque......... 2 000 Nm (1 475 lb ft) at 1 350 rev/min
Number of cylinders/configuration ............ 6 cylinder, in line
Bore and stroke ................. 130 x 160 mm (5.12 x 6.30 in)
Total Displacement ............................... 12.7 litres (774 in³)
Injector ...................................................................... 10 mm
Air cleaner ................................... Dry type, double element
Starting ...................................................................... Electric
Maximum Speed (No load) ............................ 2 325 rev/min
Maximum Speed (Full load) ........................... 2 200 rev/min
Idle Speed ......................................................... 700 rev/min
Maximum Operating Slope ....................... 30° (57% Grade)
TRANSMISSION
Make/Model.....................................ZF 6WG 310 Automatic
with manual override. The transmission consists of a
torque converter close-coupled to a 6 speed gearbox
with integral output transfer gearing. Automatic shifting
throughout the range, with kickdown feature. Lockup in
all forward gears. A torque-proportioning output
differential transmits drive permanently to front and rear
axles. This differential may be locked by the driver for use
in difficult traction conditions. Integral hydraulic retarder.
Pressures:
Main ................................... 16 + 2 bar (232 + 30 lbf/in²)
Lockup (Wk) ..................... 14 ± 1 bar (190 + 15 lbf/in²)
Converter 'IN' ...... 7.6 bar (110 lbf/in²) at 2 300 rev/min
Converter 'OUT' ... 4.8 bar (70 lbf/in²) at 2 300 rev//min
Converter Relief Valve...................... 8.5 bar (123 lbf/in²)
Retarder................................................. 6 bar (87 lbf/in²)
Temperatures:
Normal ................................ 80° - 110° C (176° - 230° F)
Maximum ..................................................120° C (248° F)
Stall Speed ............................................ 1 835 ± 50 rev/min
Ratios:
Torque Converter ...................................................1.84:1
Transmission .................................... Refer to table below
Note: During reversing operations it is recommended to
reduce engine speed, use only 1st or 2nd gear and never
exceed 10 km/h (6.2 mile/h).
Ratio 5.35 3.45 2.21 1.42 0.97 0.62
Forward
Gear 1 2 3 4 5 6
km/h 6.0 9.3 14.6 22.7 33.3 51.7
mile/h 3.7 5.8 9.1 14.1 20.7 32.1
Gear 1 2 3
Ratio 5.35 2.21 0.97
km/h 6.0 14.6 33.3
mile/h 3.7 9.1 20.7
Reverse
