9-3

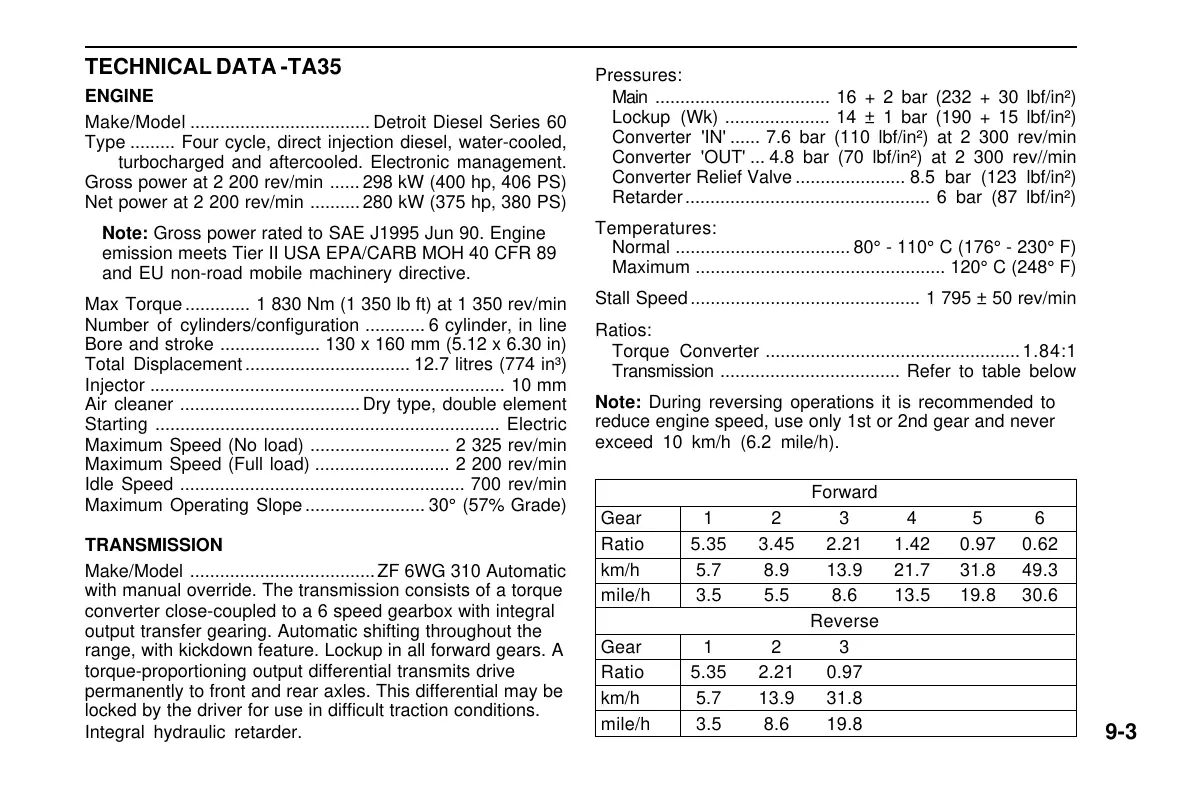

TECHNICAL DATA -TA35
ENGINE
Make/Model .................................... Detroit Diesel Series 60
Type ......... Four cycle, direct injection diesel, water-cooled,
turbocharged and aftercooled. Electronic management.
Gross power at 2 200 rev/min ...... 298 kW (400 hp, 406 PS)
Net power at 2 200 rev/min .......... 280 kW (375 hp, 380 PS)
Note: Gross power rated to SAE J1995 Jun 90. Engine
emission meets Tier II USA EPA/CARB MOH 40 CFR 89
and EU non-road mobile machinery directive.
Max Torque............. 1 830 Nm (1 350 lb ft) at 1 350 rev/min
Number of cylinders/configuration ............ 6 cylinder, in line
Bore and stroke .................... 130 x 160 mm (5.12 x 6.30 in)
Total Displacement................................. 12.7 litres (774 in³)
Injector ....................................................................... 10 mm
Air cleaner .................................... Dry type, double element
Starting ..................................................................... Electric
Maximum Speed (No load) ............................ 2 325 rev/min
Maximum Speed (Full load) ........................... 2 200 rev/min
Idle Speed ......................................................... 700 rev/min
Maximum Operating Slope........................ 30° (57% Grade)
TRANSMISSION
Make/Model .....................................ZF 6WG 310 Automatic
with manual override. The transmission consists of a torque
converter close-coupled to a 6 speed gearbox with integral
output transfer gearing. Automatic shifting throughout the
range, with kickdown feature. Lockup in all forward gears. A
torque-proportioning output differential transmits drive
permanently to front and rear axles. This differential may be
locked by the driver for use in difficult traction conditions.
Integral hydraulic retarder.
Pressures:
Main ................................... 16 + 2 bar (232 + 30 lbf/in²)
Lockup (Wk) ..................... 14 ± 1 bar (190 + 15 lbf/in²)
Converter 'IN' ...... 7.6 bar (110 lbf/in²) at 2 300 rev/min
Converter 'OUT' ... 4.8 bar (70 lbf/in²) at 2 300 rev//min
Converter Relief Valve...................... 8.5 bar (123 lbf/in²)
Retarder................................................. 6 bar (87 lbf/in²)
Temperatures:
Normal ................................... 80° - 110° C (176° - 230° F)
Maximum .................................................. 120° C (248° F)
Stall Speed.............................................. 1 795 ± 50 rev/min
Ratios:
Torque Converter ...................................................1.84:1
Transmission .................................... Refer to table below
Note: During reversing operations it is recommended to
reduce engine speed, use only 1st or 2nd gear and never
exceed 10 km/h (6.2 mile/h).
Forward
Gear 1 2 3 4 5 6
Ratio 5.35 3.45 2.21 1.42 0.97 0.62
km/h 5.7 8.9 13.9 21.7 31.8 49.3
mile/h 3.5 5.5 8.6 13.5 19.8 30.6
Reverse
Gear 1 2 3
Ratio 5.35 2.21 0.97
km/h 5.7 13.9 31.8
mile/h 3.5 8.6 19.8
