Terex TA40 - Page 126

9-2
1649

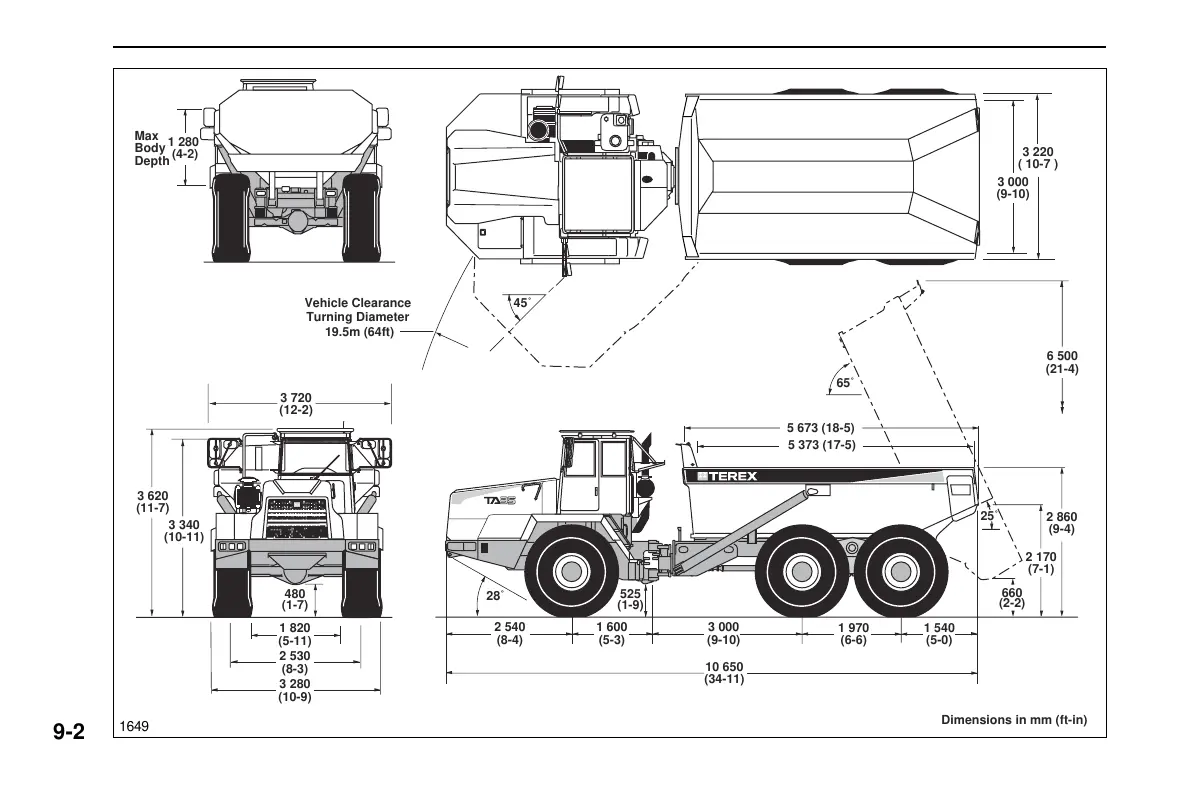

Dimensions in mm (ft-in)
3 000
(9-10)
3 220
( 10-7 )
45˚
Vehicle Clearance
Turning Diameter
19.5m (64ft)
3 280
(10-9)
480
(1-7)
3 340
(10-11)
3 620
(11-7)
2 540
(8-4)
1 600
(5-3)
3 000
(9-10)
10 650
(34-11)
6 500
(21-4)
5 673 (18-5)
65˚
2 170
(7-1)
2 860
(9-4)
25˚
1 540
(5-0)
1 970
(6-6)
5 373 (17-5)
2 530
(8-3)
1 820
(5-11)
525
(1-9)
660
(2-2)
3 720
(12-2)
28˚
Max
Body
Depth
1 280
(4-2)
