BASIC DATA

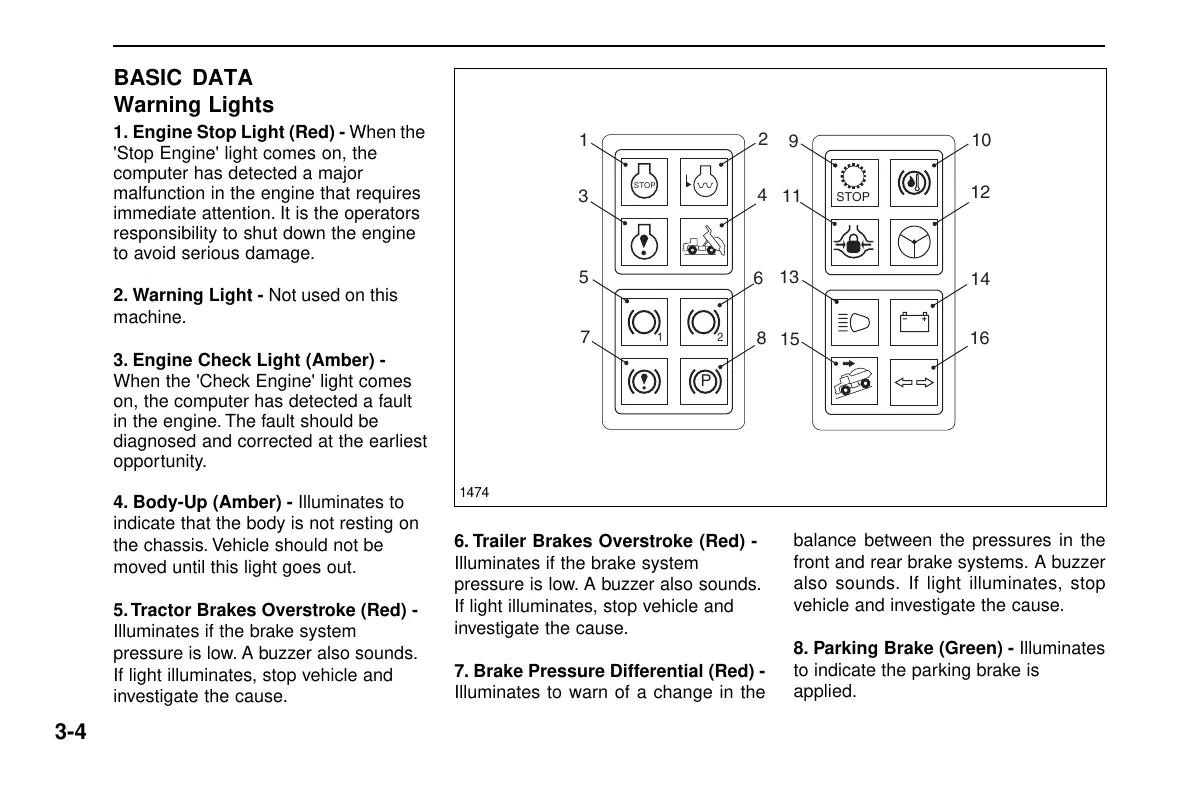

Warning Lights
1. Engine Stop Light (Red) - When the
'Stop Engine' light comes on, the
computer has detected a major
malfunction in the engine that requires
immediate attention. It is the operators
responsibility to shut down the engine
to avoid serious damage.
2. Warning Light - Not used on this
machine.
3. Engine Check Light (Amber) -
When the 'Check Engine' light comes
on, the computer has detected a fault
in the engine. The fault should be
diagnosed and corrected at the earliest
opportunity.
4. Body-Up (Amber) - Illuminates to
indicate that the body is not resting on
the chassis. Vehicle should not be
moved until this light goes out.
5. Tractor Brakes Overstroke (Red) -
Illuminates if the brake system
pressure is low. A buzzer also sounds.
If light illuminates, stop vehicle and
investigate the cause.
1474
6. Trailer Brakes Overstroke (Red) -
Illuminates if the brake system
pressure is low. A buzzer also sounds.
If light illuminates, stop vehicle and
investigate the cause.
7. Brake Pressure Differential (Red) -
Illuminates to warn of a change in the
balance between the pressures in the
front and rear brake systems. A buzzer
also sounds. If light illuminates, stop
vehicle and investigate the cause.
8. Parking Brake (Green) - Illuminates
to indicate the parking brake is
applied.
