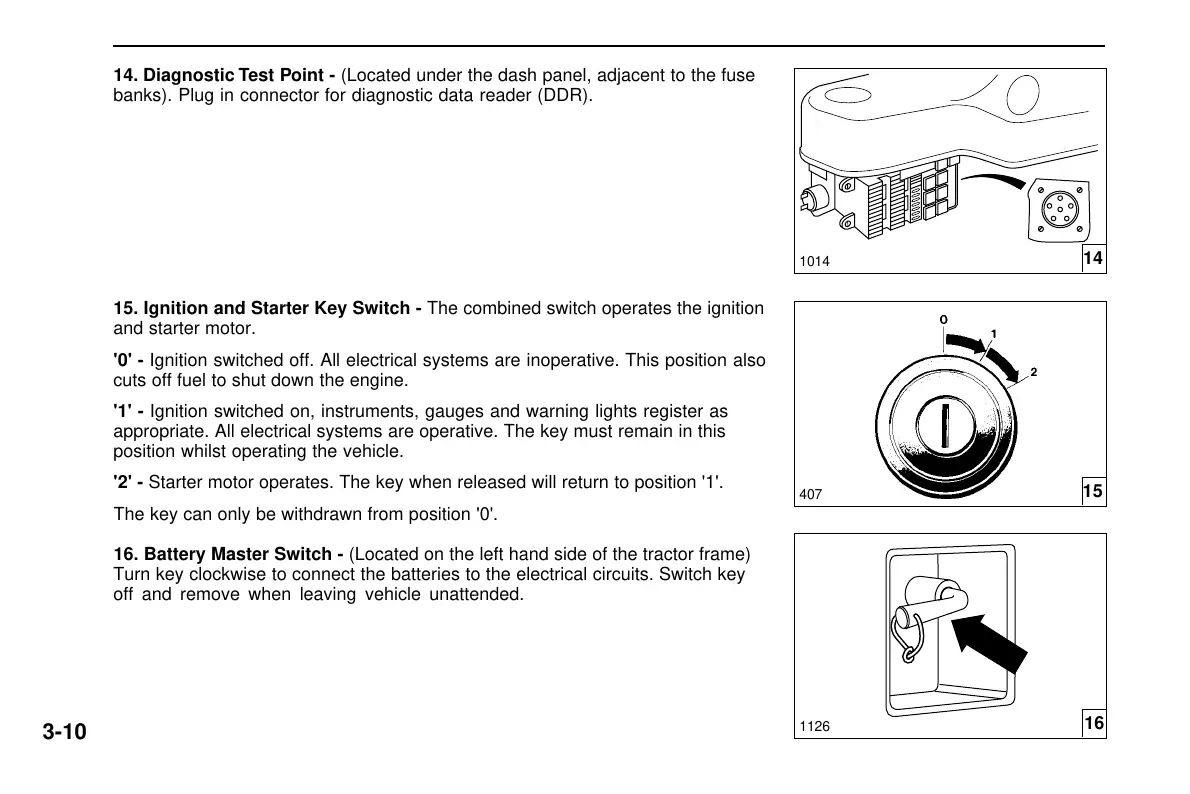

14. Diagnostic Test Point - (Located under the dash panel, adjacent to the fuse
banks). Plug in connector for diagnostic data reader (DDR).
15
16
14
15. Ignition and Starter Key Switch - The combined switch operates the ignition
and starter motor.
'0' - Ignition switched off. All electrical systems are inoperative. This position also
cuts off fuel to shut down the engine.
'1' - Ignition switched on, instruments, gauges and warning lights register as
appropriate. All electrical systems are operative. The key must remain in this
position whilst operating the vehicle.
'2' - Starter motor operates. The key when released will return to position '1'.
The key can only be withdrawn from position '0'.
16. Battery Master Switch - (Located on the left hand side of the tractor frame)
Turn key clockwise to connect the batteries to the electrical circuits. Switch key
off and remove when leaving vehicle unattended.
