4-5
472
9

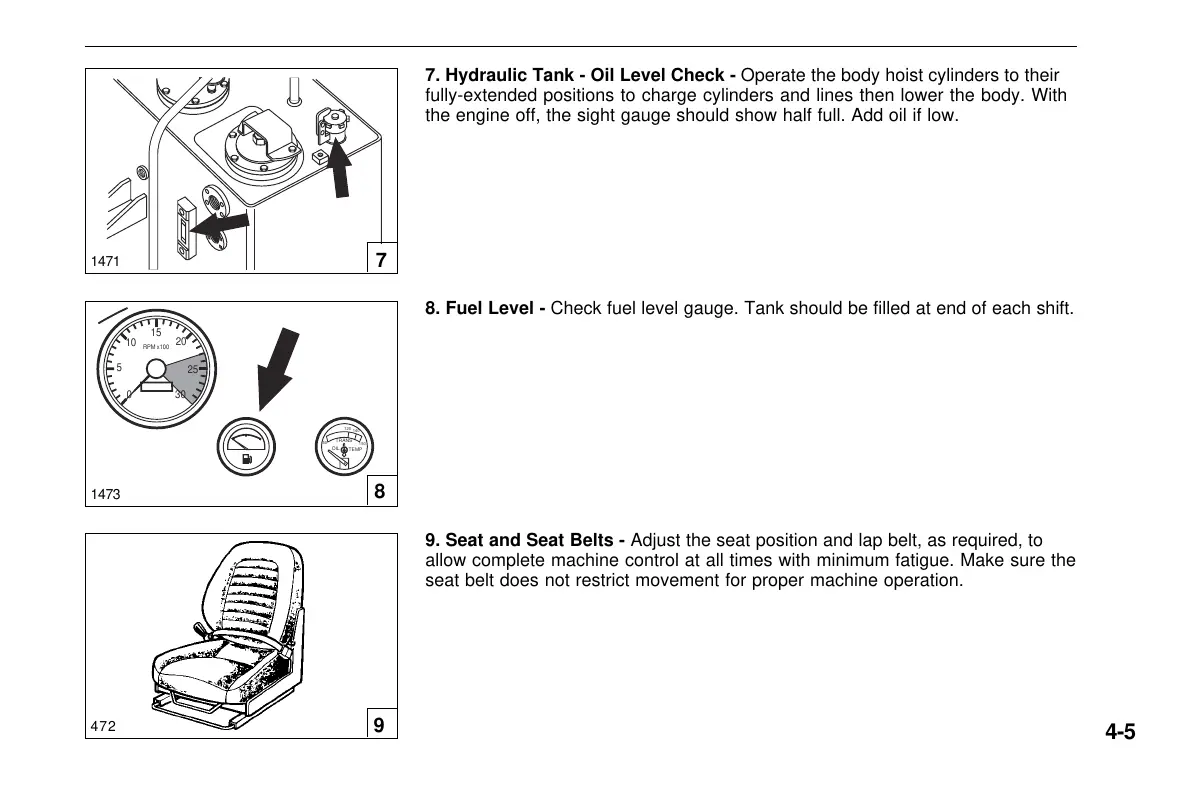

7. Hydraulic Tank - Oil Level Check - Operate the body hoist cylinders to their
fully-extended positions to charge cylinders and lines then lower the body. With
the engine off, the sight gauge should show half full. Add oil if low.
8. Fuel Level - Check fuel level gauge. Tank should be filled at end of each shift.
9. Seat and Seat Belts - Adjust the seat position and lap belt, as required, to
allow complete machine control at all times with minimum fatigue. Make sure the
seat belt does not restrict movement for proper machine operation.
1471
7
0
5
10
15
20
25
RPM x100
30
OIL
TEMP
TRANS
50
150
120
140
1473
8
