Mowers & Spindles
60-B. Spindle Asy Repair
blade screwdriver to remove the seal retaining ring (Fig-H).
Pry out the lower seal. BE CAREFUL NOT TO DAMAGE THE SPINDLE HOUSING.
A new seal is required for rebuild of the spindle (Fig-I).
Remove the bearing and check it for damage or excessive wear (Fig-J).

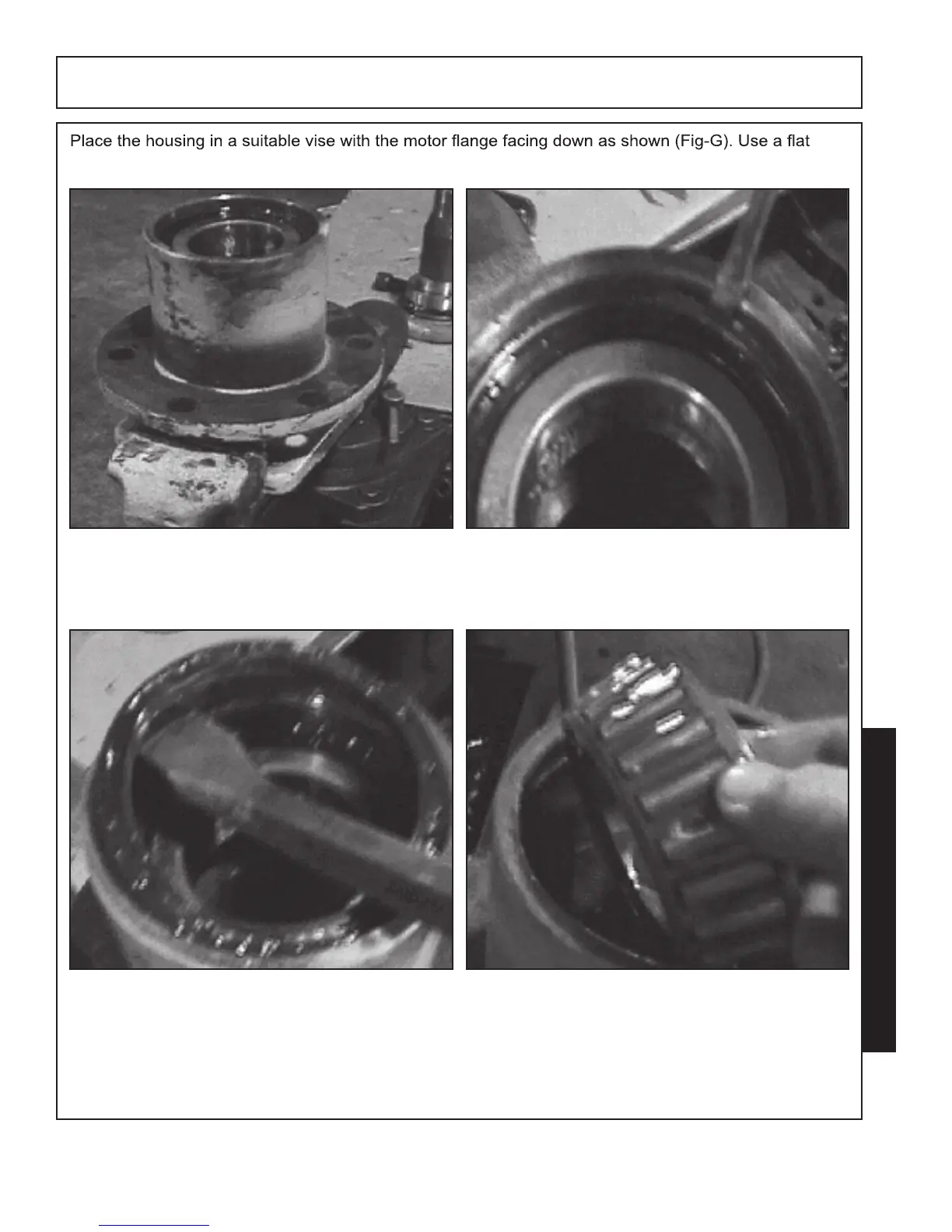

FIGURE - G FIGURE - H
FIGURE - I FIGURE - J
