19

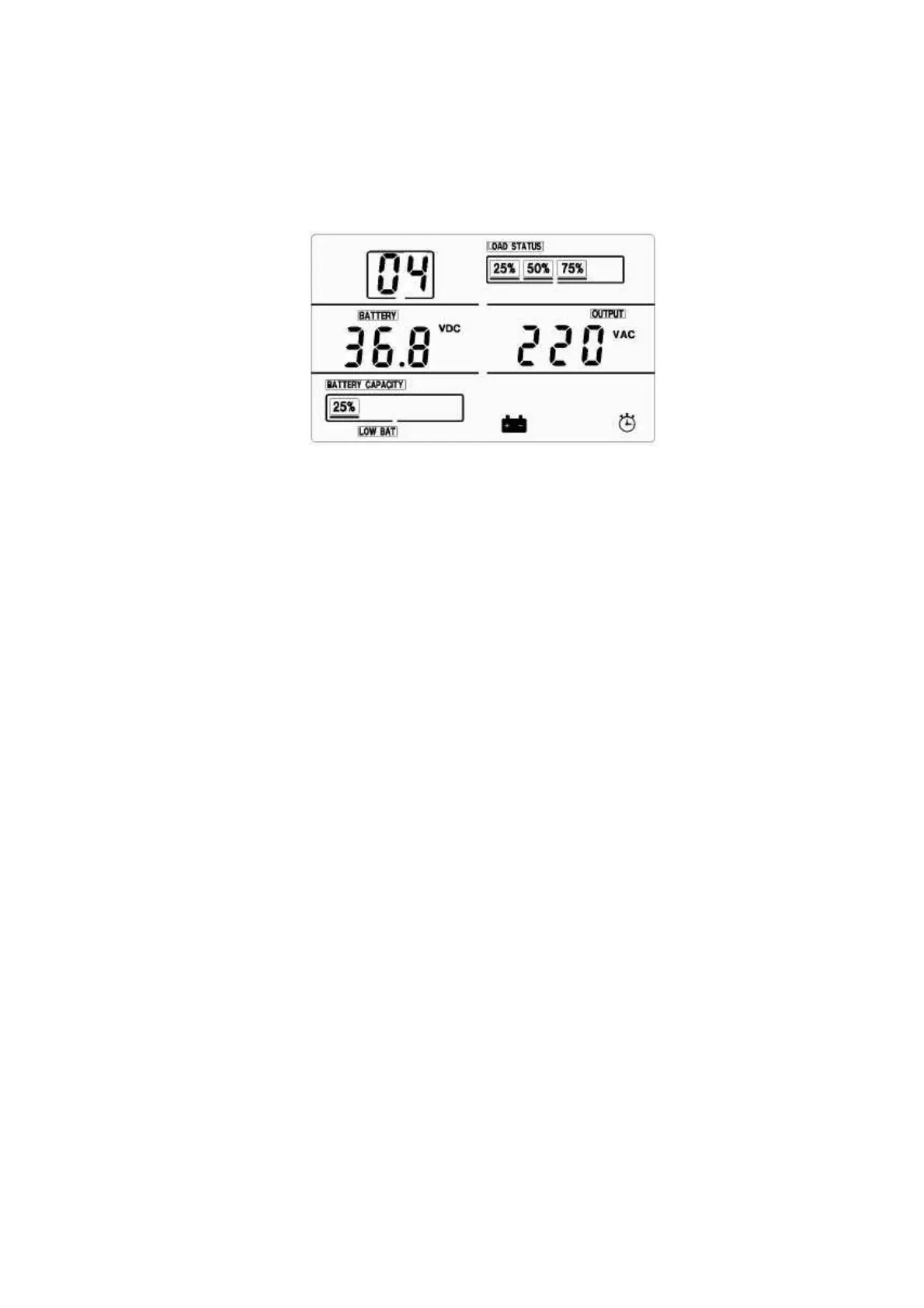

The LCD display in battery mode is shown in the following diagram. The information about the tility
power, the battery, the temperature and load could be displayed. The operating mode code of the
UPS is "04".
When the UPS is running in battery mode, the buzzer beeps once every 4 seconds.
Battery mode
4.3. Operating Instructions
4.3.1 Turning On and Completely Powering Down the UPS
Note：The battery is fully charged before delivery. However, storage and transportation will
inevitably cause some charge loss. Therefore, it is advisable to charge the battery for 10 hours
before using it, so as to ensure adequate battery autonomy.
1. Turning on the UPS
The operation of turning on the UPS contains: turning on with utility power and turning on without
utility power.
1) Turning on with utility power:
