3.3 Cable Connections
3.3.1 Connecting Input and Output Cables
1. Input cable connection
If the UPS is connected via the power cable, please use a proper socket with protection against
electric current, and pay attention to the capacity of the socket: over 10A for NEOLINE 1000(XL)
and NEOLINE 2000(XL),over 16A for NEOLINE 3000(XL). The wiring configuration is shown
in the following diagram.

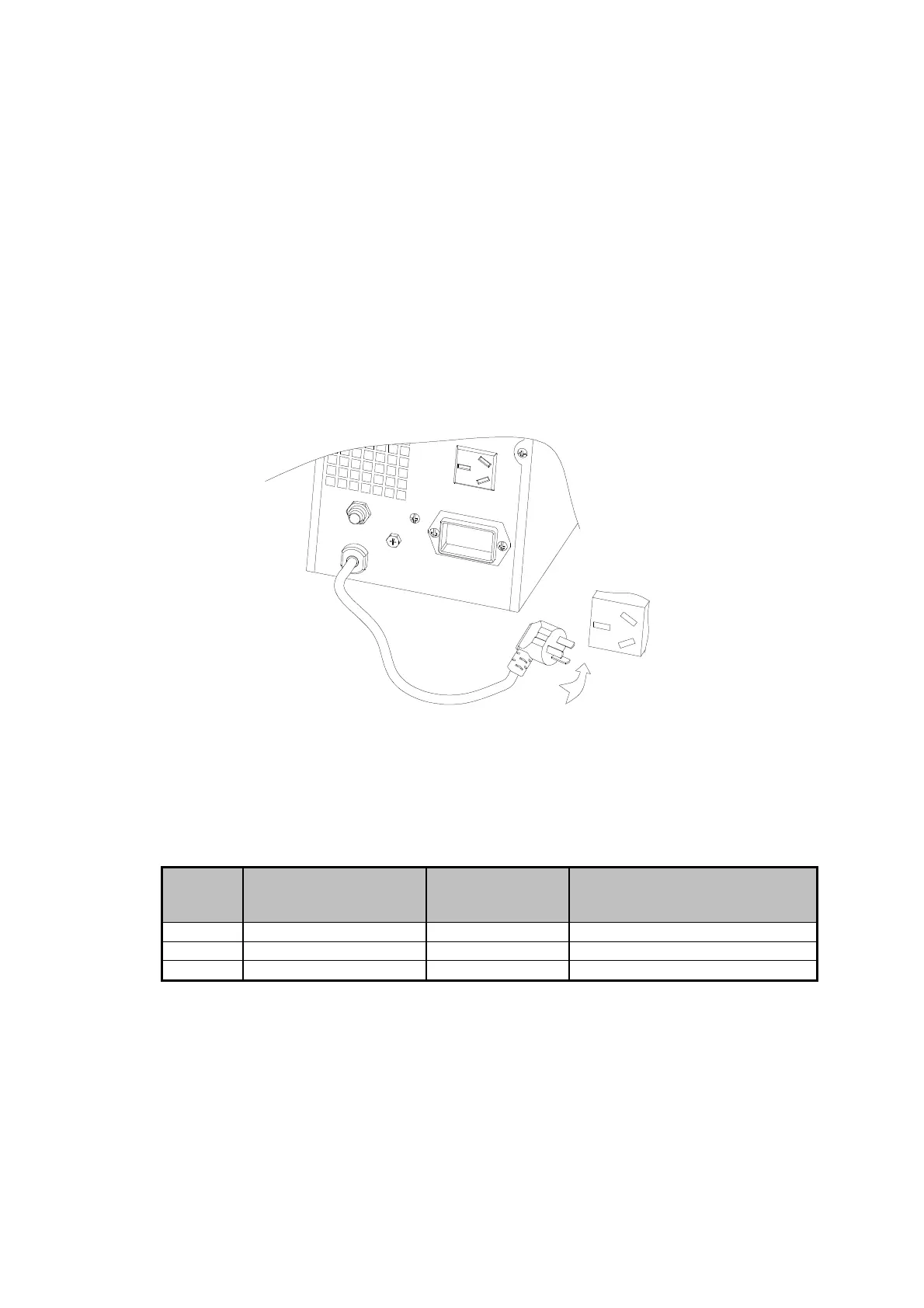

Figure 3-1 Connection Method of Input for NEOLINE 1000(XL)~3000(XL)
1. Output cable connection
Table 3-2 Output way of UPS
Rating Model
Quantity of
output
socket
Output Terminal Block
1kVA NEOLINE 1000(XL) 2 Nil
2kVA NEOLINE 2000(XL) 4 Nil
3kVA NEOLINE 3000(XL) 3 Available
The output of NEOLINE 1000(XL)/ NEOLINE 2000(XL)/ NEOLINE 3000(XL) all available to
uses sockets.the total output power shall not exceed 1kVA/0.8kW,2kVA/1.6kW , 3kVA/2.4kW.
Simply plug the load power cable to the output sockets of UPS to complete connection as shown in
the following diagram
