14
2. Alternative connection of communication

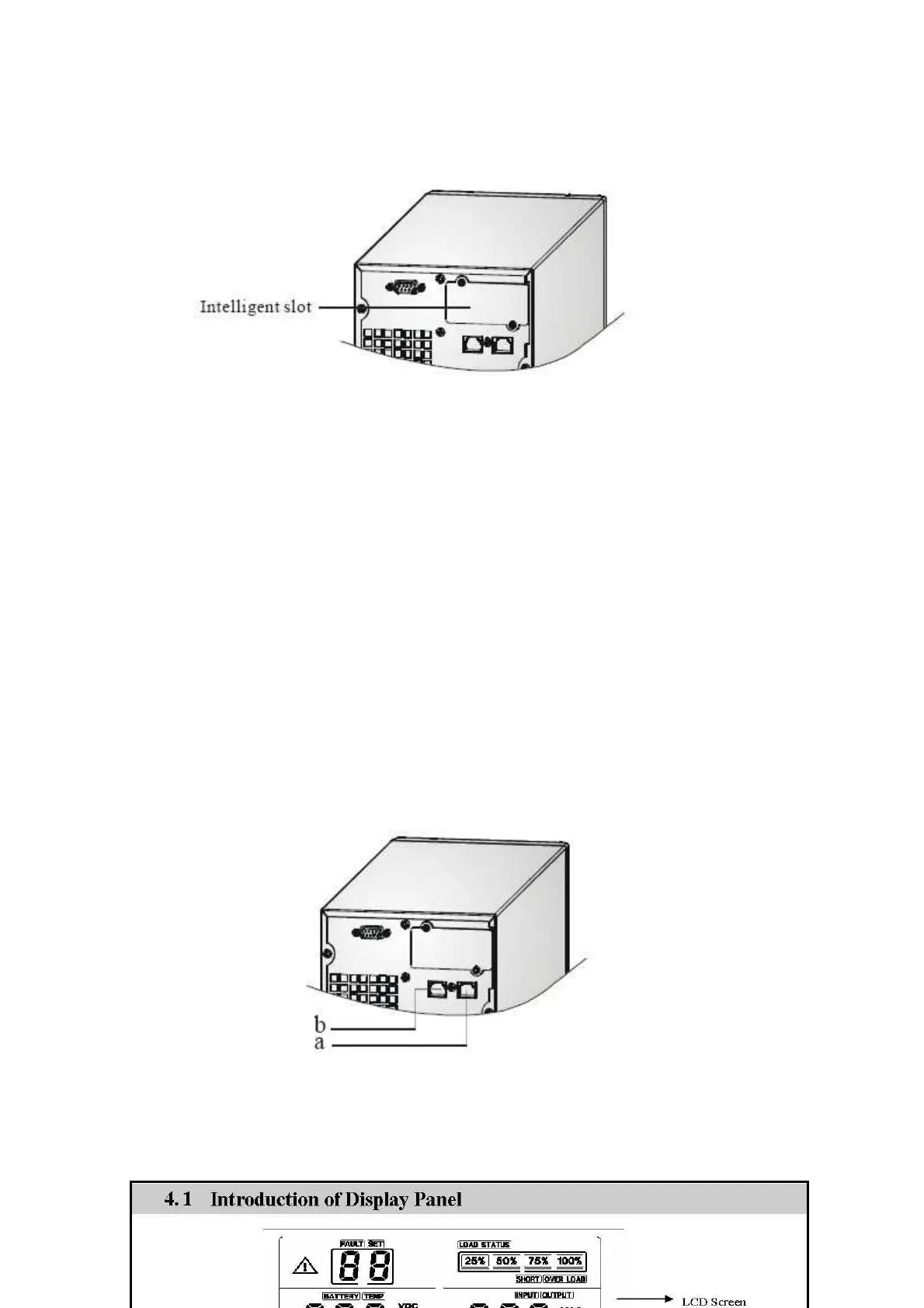

Intelligent Slot－
The intelligent slot is designed for installing the AS400 card，SNMP card and CMS card. You can
choose for one of them to install.
a－AS400: You can utilize AS400’s monitor function to manage the power supply directly.
b－SNMP: It enables you monitor the UPS remotely through Internet
c－CMS:Central monitor card
Note
：
1. Remove the cover board of the intelligent slot before any card is installed
2. Refer to some other relative documents for the use of the Winpower software and the
AS400 and SNMP and CMC cards, If you have any question about the above communication ports,
please contact customer service center.
3. There are two type of card for intelligent slot: short card and long card, theUPS this
manual described match for the short card.
3. Surge-protection connection
a－Output: Connects the equipment to be protected.
b－Input: Connects the telephone line or network
4. Operation
