1.3 Keys and Interfaces
The design and speciication take actual products as standard.
1 2
4
5
6
7
8
9
10
12
11 11
USB
USB2
Rf IN EARPHONE
HDmI1 HDmI2 HDmI3
COAXIAL
SCART PC AUDIO PC (VGA)
13 14 15
16 17 18 19 20 21 22 23 24 25

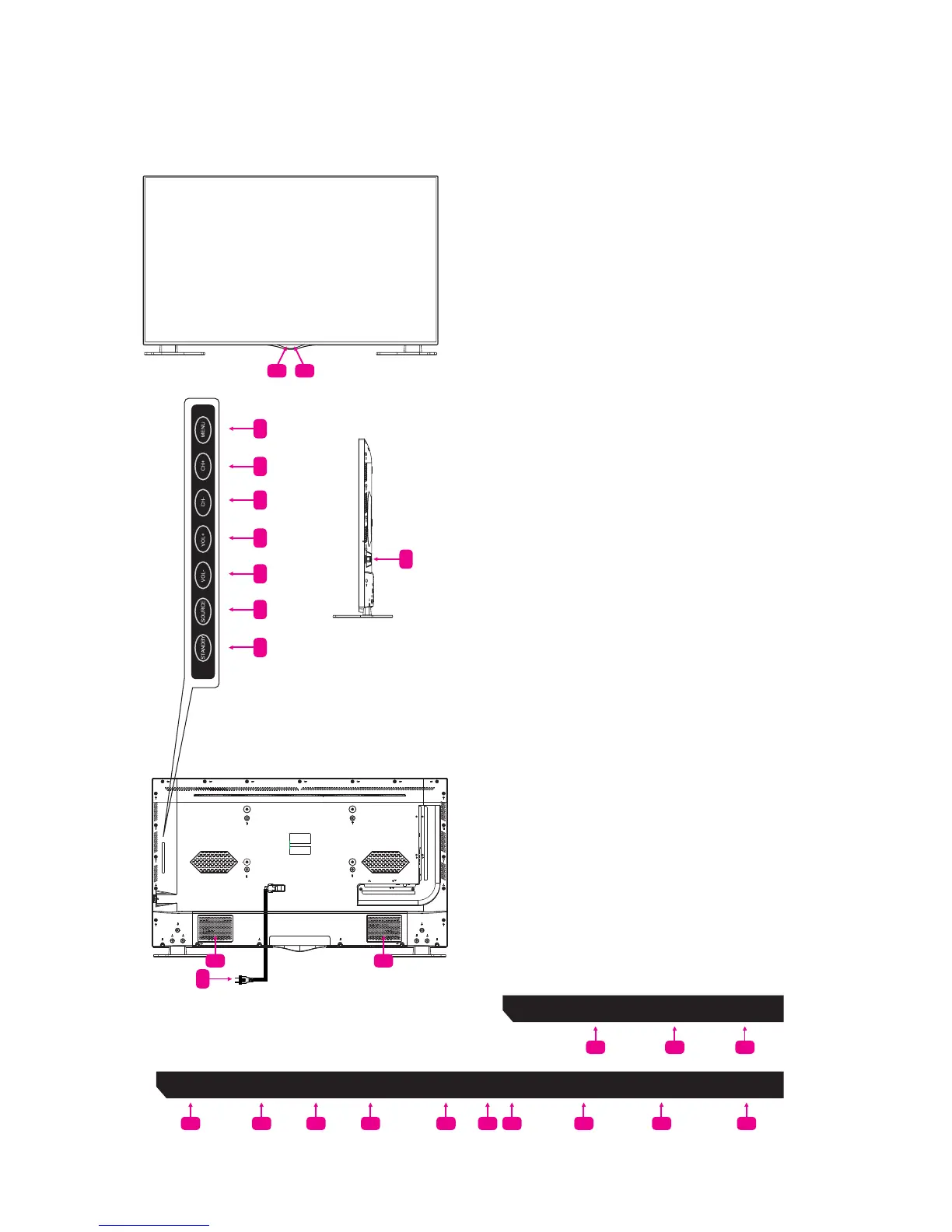

1. Remote sensor window
2. Power indicator
3. Power switch
4. Menu key
5. Program+ key
6. Program- key
7. Volume+ key
8. Volume- key
9. Source key
10. Standby key
11. Speaker
12. Power plug input
13. SCART input
14. PC AUDIO input
15. PC (VGA) input
16. RF input
17. HDMI1
18. HDMI2
19. HDMI3
20. MINI AV/YPbPr L/R IN
21. CI card input
22. MINI YPbPr input
23. Coaxial
24. USB1/USB2
25. EARPHONE output
3
mINI AV IN
m
INI YPbPr L/R
USB1
USB2
m
INI
YPbPr
CI
