TESTO 560i - Overview of testo Smart Valve

6 Product description
7

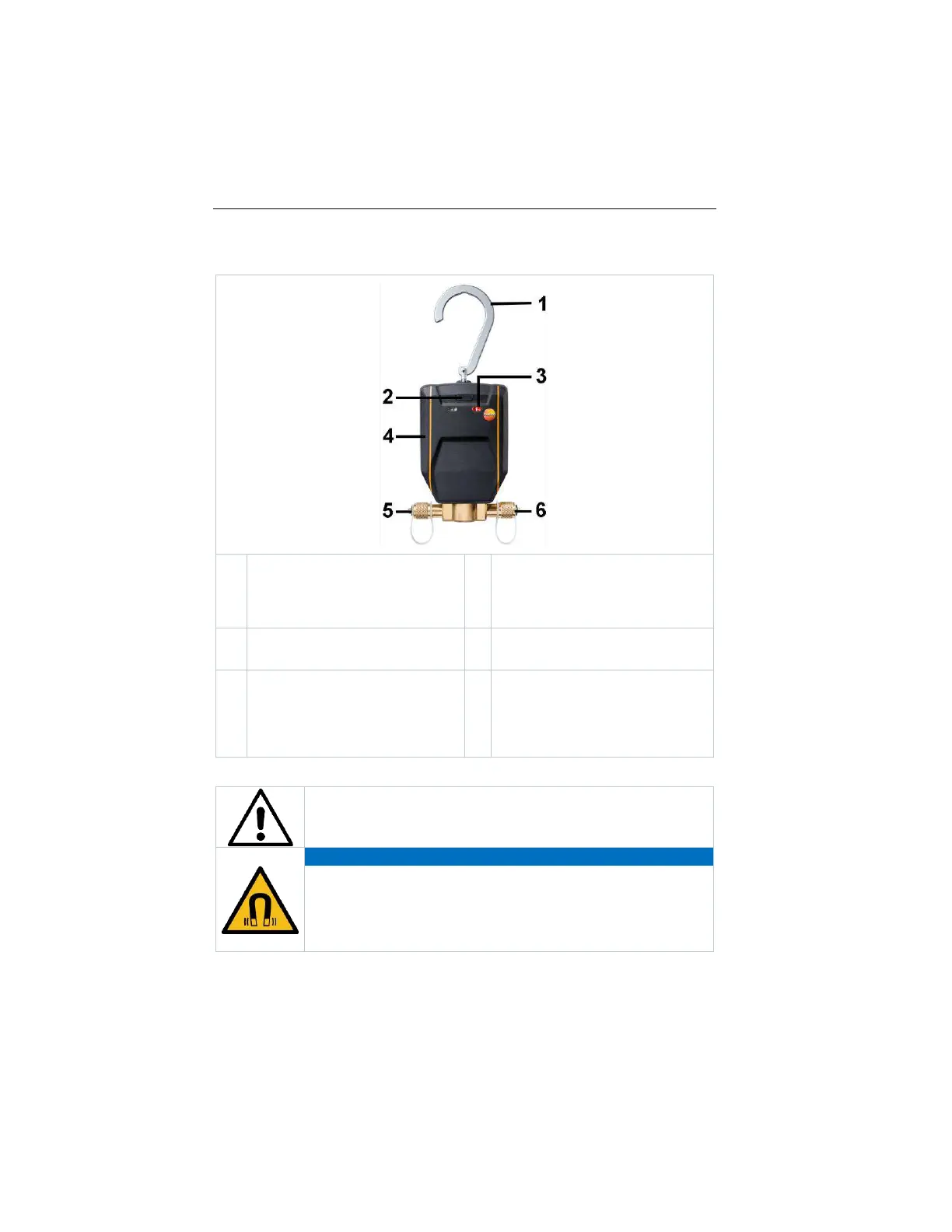

6.2 Overview of testo Smart Valve
1
Folding suspension device (rear)
2
On/off switch
- 1x click: Switch on
- Hold down: Switch off
- 3x clicks: Open valve for 1 s
3
Status LED
- Constant red: Valve open
4
Battery compartment (on rear)
5
Refrigerant outlet: Connection
7/16" UNF, brass. For refrigerant
hoses with quick-release fitting,
passage can be closed via valve
positioner.
6
Refrigerant inlet: Connection
7/16" UNF, brass. For refrigerant
hoses with quick-release fitting,
passage can be closed via valve
positioner.
Symbol explanation
Observe operating instructions
ATTENTION
Magnetic field
Damage to other devices!
- Keep a safe distance from products that can be
damaged by magnetism (e.g. monitors, computers,
credit cards).
