TESTO 570 Series User Manual

7 Using the product
32
2

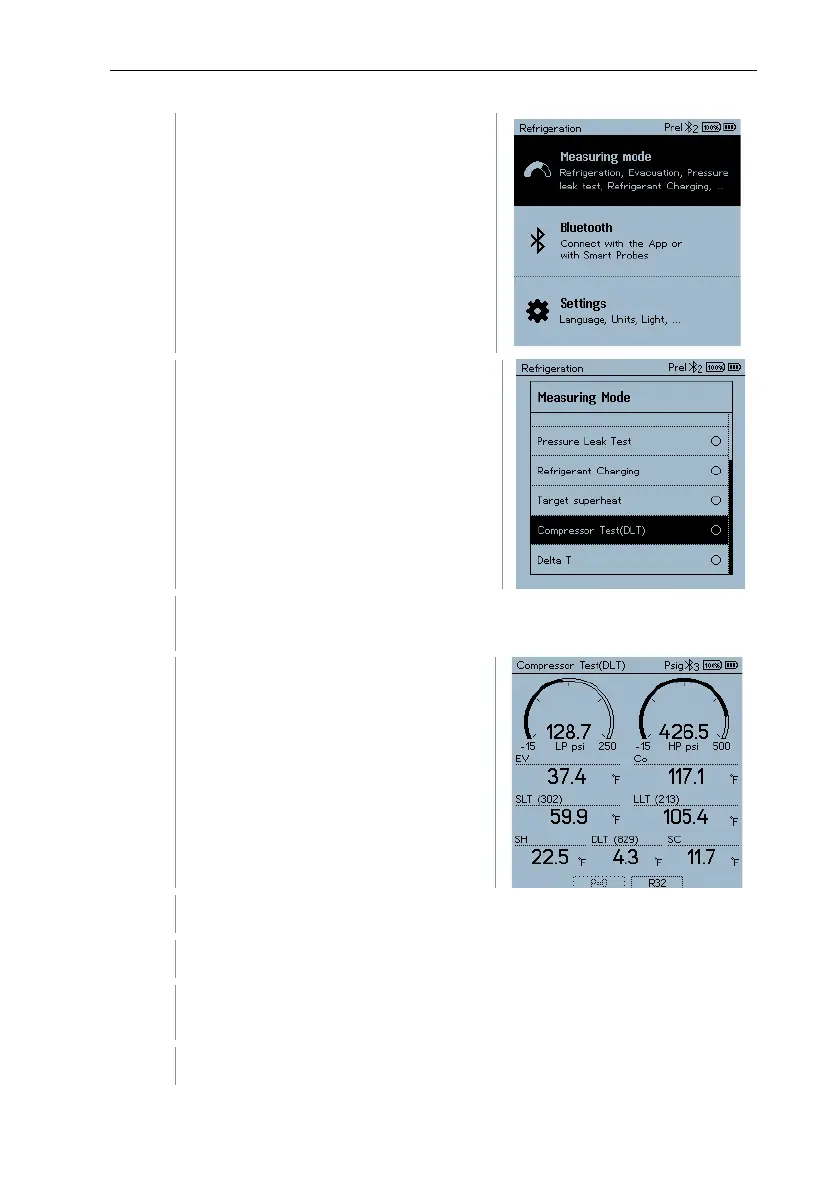

Press [▲] / [▼] to select Measuring
Mode and press [Menu/Enter] to
confirm.

The Measuring Mode menu is
displayed.
3
Press [▲] / [▼] to select Compressor Test (DLT) and press
[Menu/Enter] to confirm.

The measurement menu is
displayed.
The DLT temperature is shown on the
display.
4
Connect the refrigerant hoses.
4.1
Close the valve positioners.
4.2
Connect the refrigerant hoses for low-pressure side (blue) and high-
pressure side (red) to the measuring instrument.
4.3
Connect the refrigerant hoses to the system.

TESTO 570 Series Specifications

General

Temperature Accuracy	±0.5 °C
Temperature Measurement Range	150°C
Vacuum Measurement	Yes
Data Logging	Yes
Display	LCD
Interfaces	Bluetooth, USB
Storage Temperature	-20 to +60 °C
Operating Temperature	-10 to 50°C
