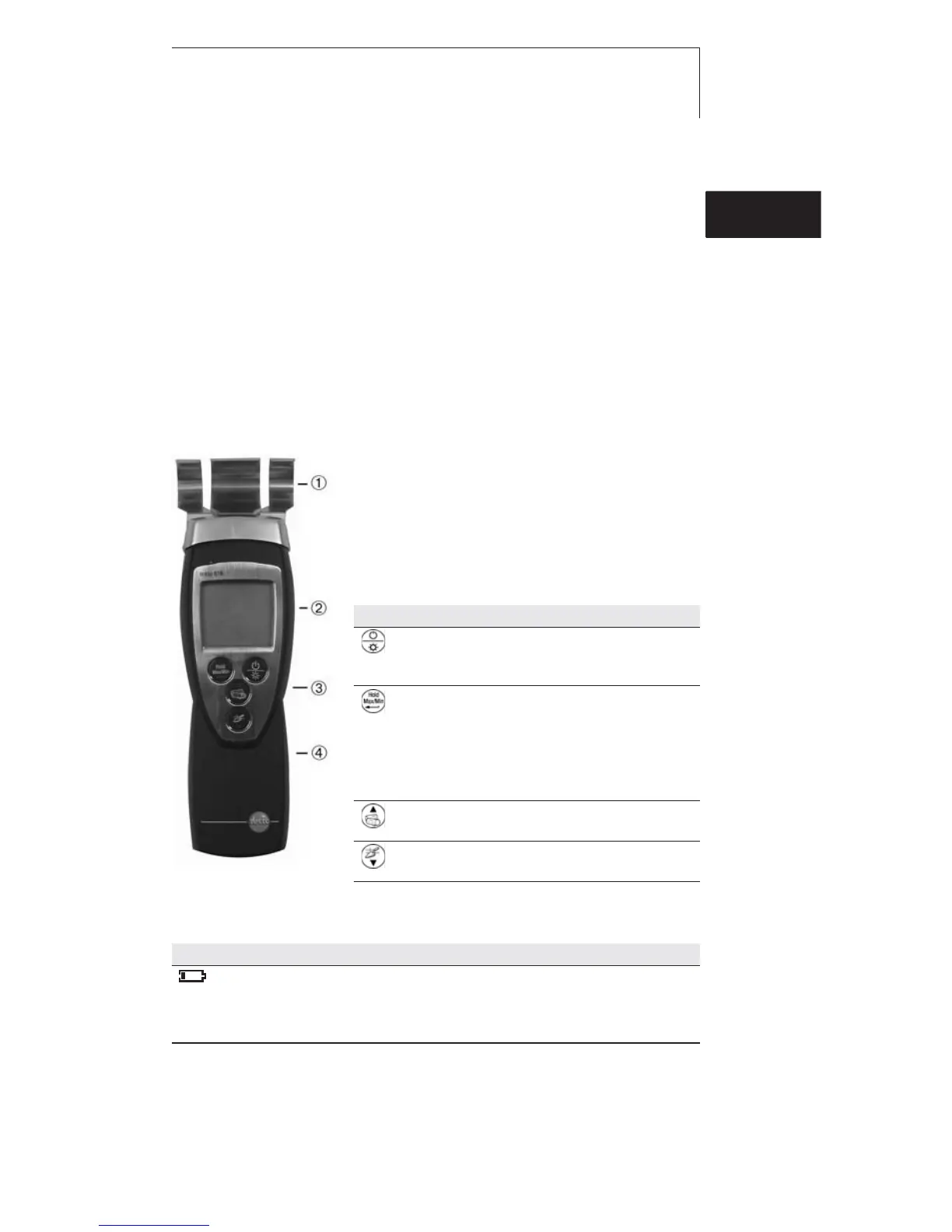

3.1 Display and control
elements
Overview
Contact plates
Display
Control keys
Battery compartment (rear)
Key functions
Key Functions
Switch instrument on;
switch instrument off (press and hold)
Switch display light on/off
Keep reading, display
maximum/minimum value
Open/leave configuration mode (press
and hold);
In configuration mode:
Confirm input
In configuration mode:
Increase value, select option
In configuration mode:
Decrease value, select option
Important displays
Display Meaning
Battery capacity (bottom right in display):
· 4 segments in the battery symbol are lit: Instrument battery is fully
charged
· No segments in the battery symbol are lit: Battery is almost spent
