Assembly distances for SMA Sunny Islands/Bat fuse and connecting cable lengths
When using the BatFuse to Sunny Island (10 m) DC connector kit
17
,
the components must be
arranged in a specific order as this is the only way to maintain the calculated lengths for the connect-
ing cables.
Refer to the table below for the calculated lengths of the connecting cables. The assembly arrange-
ment and the distances between the components are shown in the figure below.
LENGTH POLE POINT OF CONNECTION  POINT OF CONNECTION 
200 cm Positive BatFuse Master Sunny Island
200 cm Negative BatFuse Master Sunny Island
100 cm Positive BatFuse Slave 1 Sunny Island
100 cm Negative BatFuse Slave 1 Sunny Island
200 cm Positive BatFuse Slave 2 Sunny Island
200 cm Negative BatFuse Slave 2 Sunny Island
Table 7.1. Lengths of connecting cables when using the Bat Fuse to Sunny Island DC connector kit
30 30
35
All dimensions in cm.
Master Slave 2
Slave 1

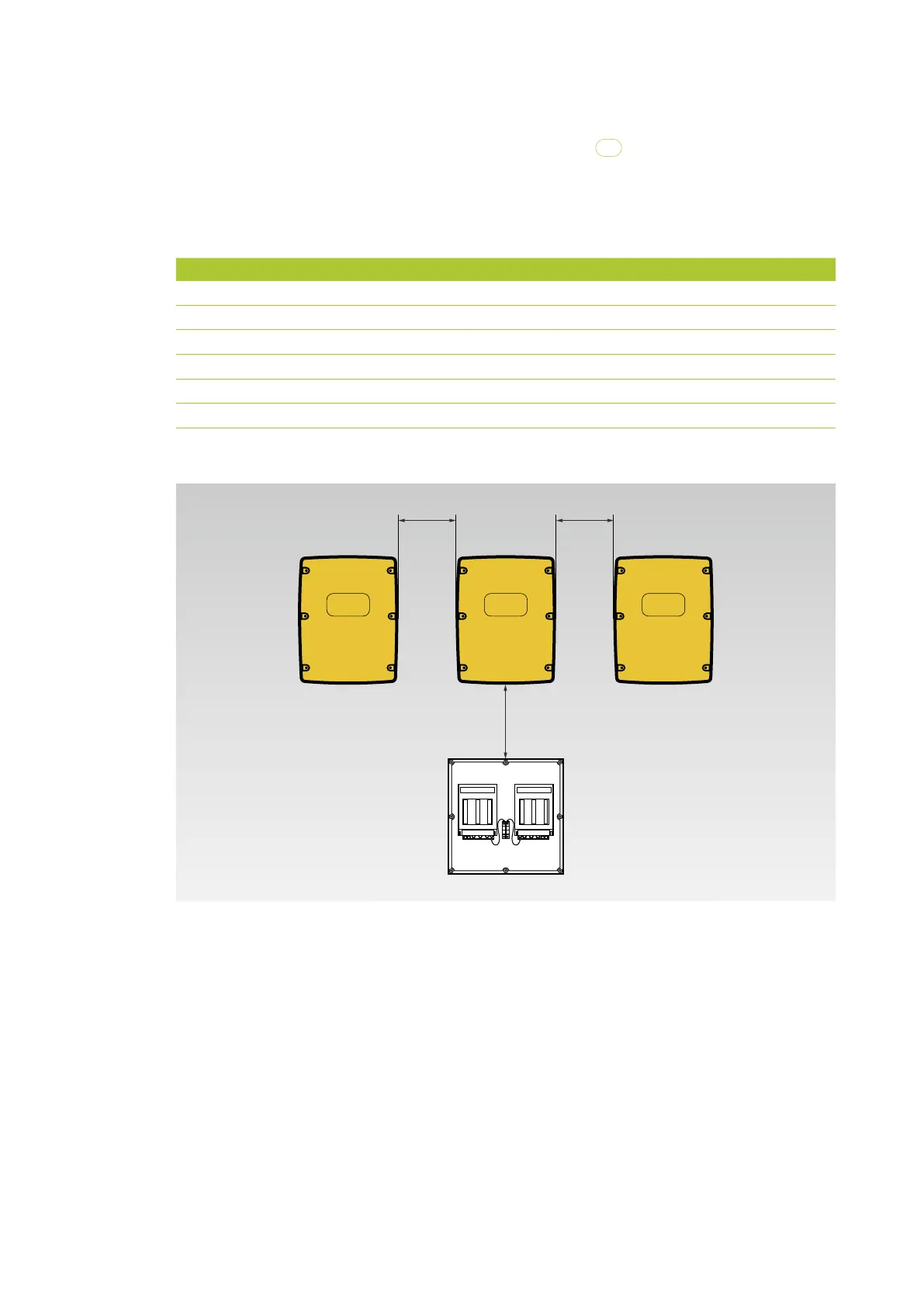

Figure 7.2 Correct distances between the components for fitting the Bat Fuse to the Sunny Island using the DC connector kit
