Teufel DecoderStation 5 - Connection

12
 · Decoderstation 5

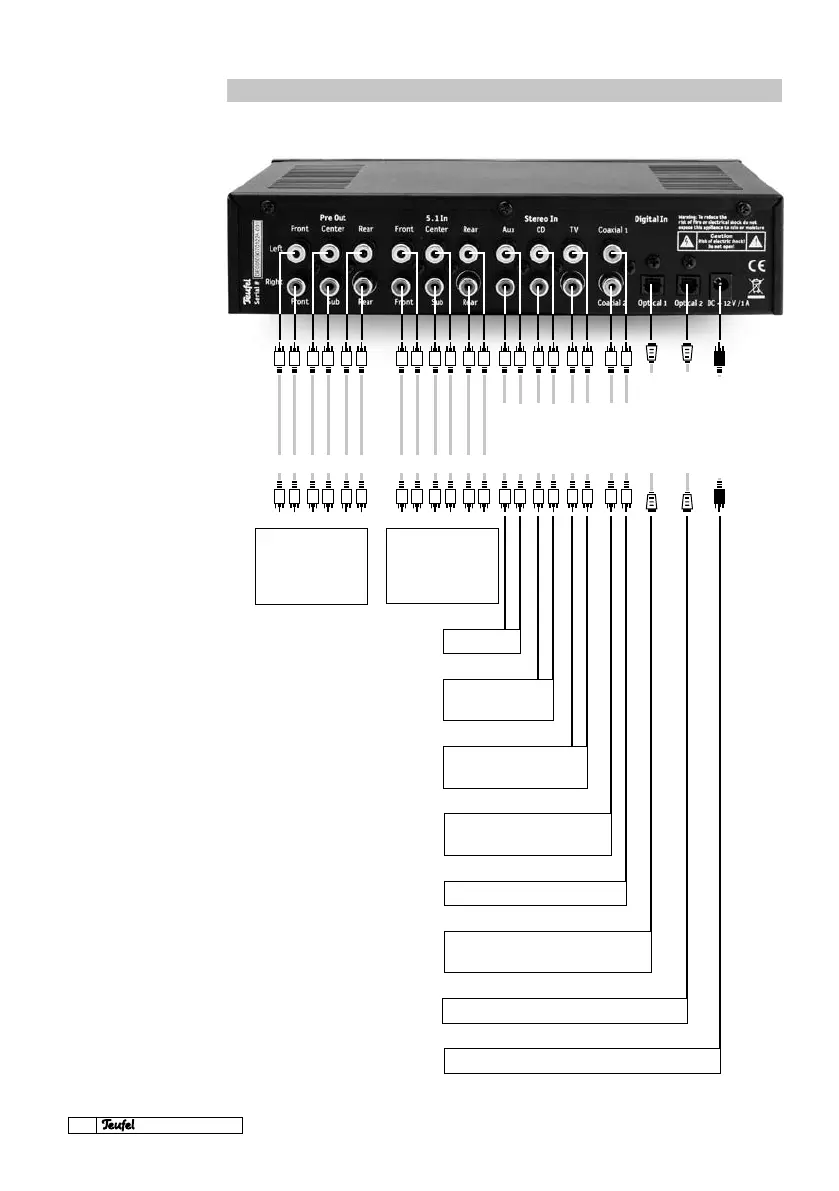

Example allocation of
inputs and outputs of the
Decoderstation 5
Connection
Note
You can vary the
allocation of inputs.
For example, the audio
output of a TV set can
also be operated from
Aux (here: MP3 player).
6 x Cinch cable 6 x Cinch cable
5.1 amplifier
system, e.g. multi-
channel subwoofer
with 5.1 input
Analogue 5.1 signal
source, e.g. profes-
sional sound card
MP3-Player
CD player/
CD recorder
Video recorder /
TV set
DAT recorder /
SAT receiver
PC sound card
Digital audio cable
DVD player /
DVD recorder
Games console
Mains power cable
Mains power cable
Digital audio cable
Cinch cable Cinch cabelCinch cable
Cinch cable Cinch cable
Cinch cable Cinch cabel Cinch cable Cinch cable Cinch cable
