- 4 -
1. Remove the parts from the box and remove any tape and padding from the parts. Inspect
the parts to make sure they were not damaged in shipment.

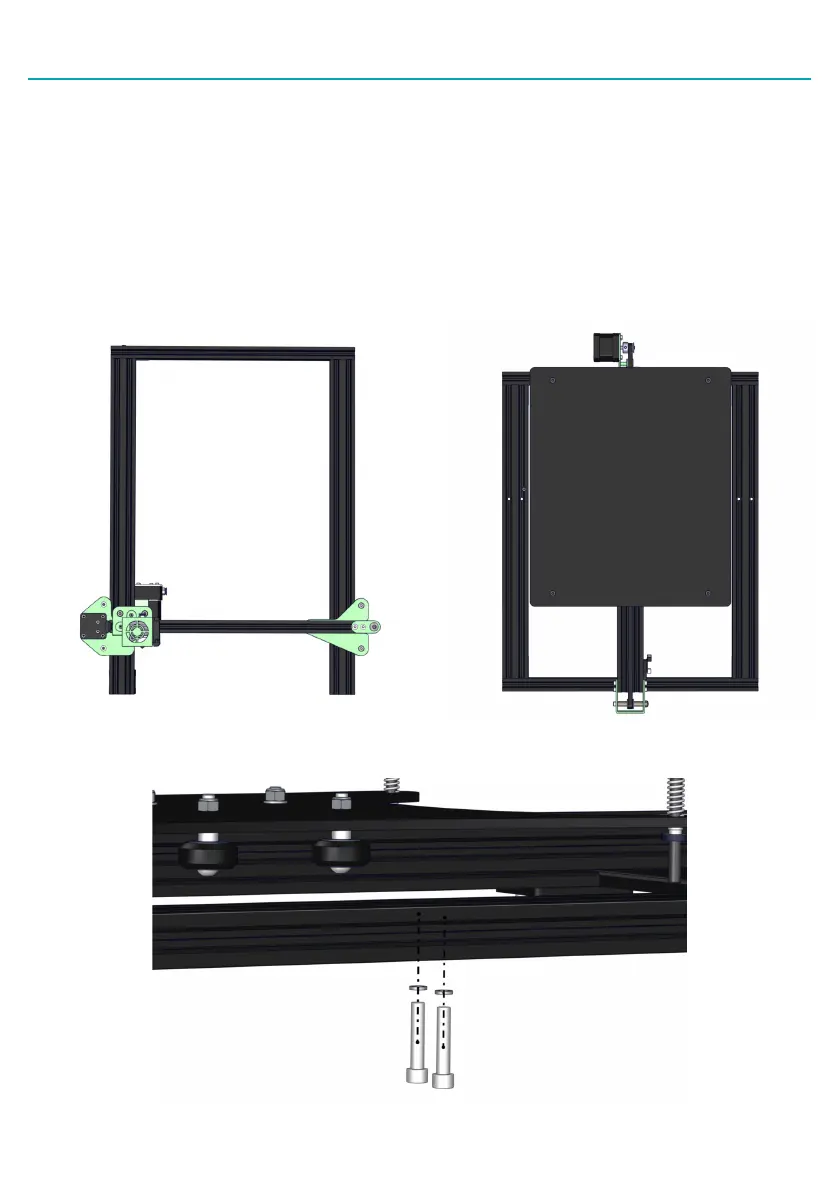

2. Install the gantry frame (A) to the base frame (B).
• On the gantry frame, make sure the nozzle assembly is to the front. On the base frame,
make sure the steppeer motor is on the back.
• Use the M5x25 screws (4 pcs) and lock washers (4 pcs). Raise the base frame above the
table. Install the screws through the base frame into the threaded holes in the gantry
frame (as shown in picture below). Tighten with M5 hex key (Allen) wrench.
Assembly
A B
To Next Page
