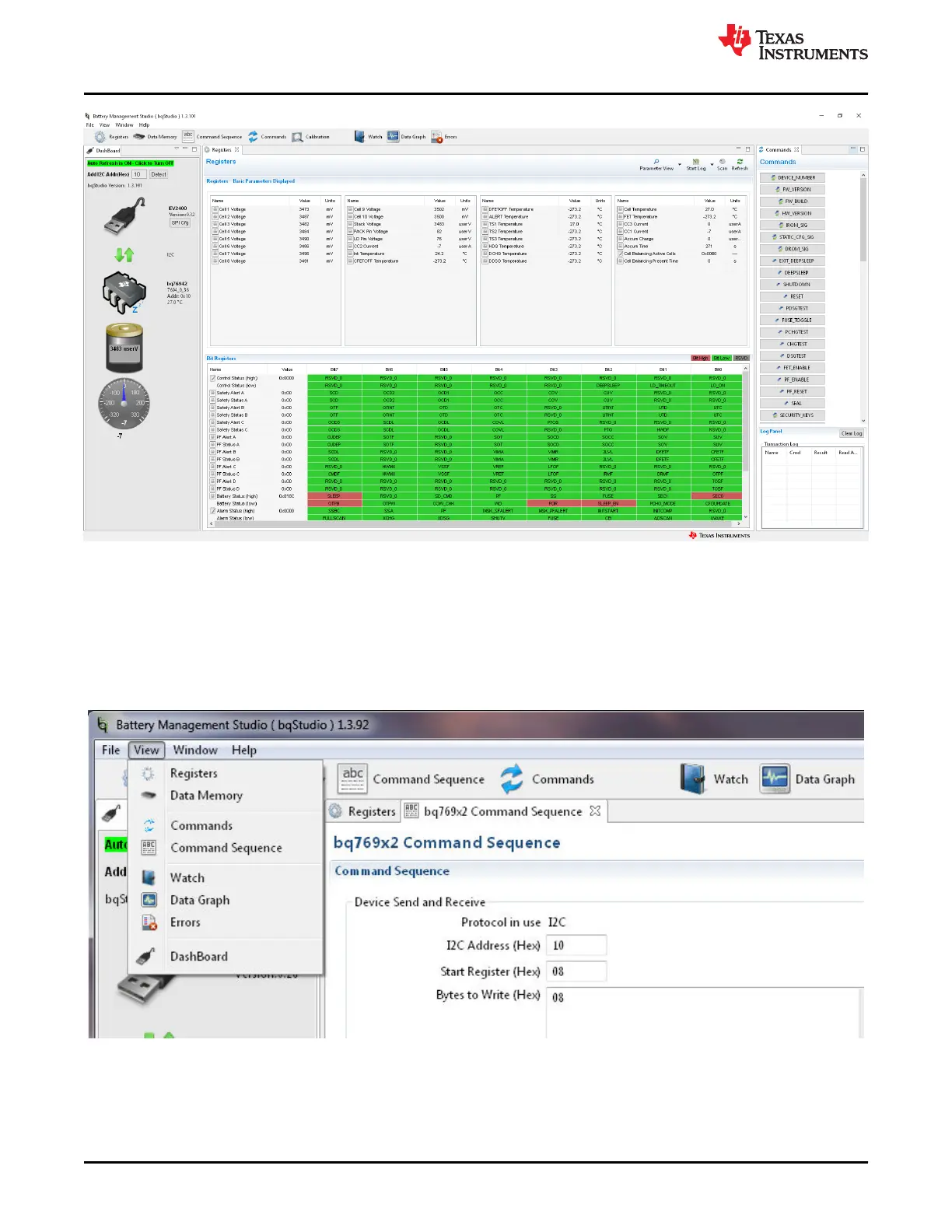

Figure 3-3. Register View with Device
The available tools for the device are shown at the top of the window and may be selected by clicking on the tool
icon. Tools may also be selected from the "View" menu as shown in Figure 3-4. Opening a new tool may change
the center tab of the window. These tools are described in following sections. Not all devices have all the tools
described. Multiple tools can be active at one time, tools which use the center pane for display are shown as a
tabs at the top of the center section. These tabs can be closed with the "X" as desired, but closing the tab may
terminate the operation running in the tab.
Figure 3-4. Tool Selections
Battery Management Studio Software
www.ti.com
10 BQ76942 Evaluation Module SLUUC32A – NOVEMBER 2019 – REVISED OCTOBER 2020
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
