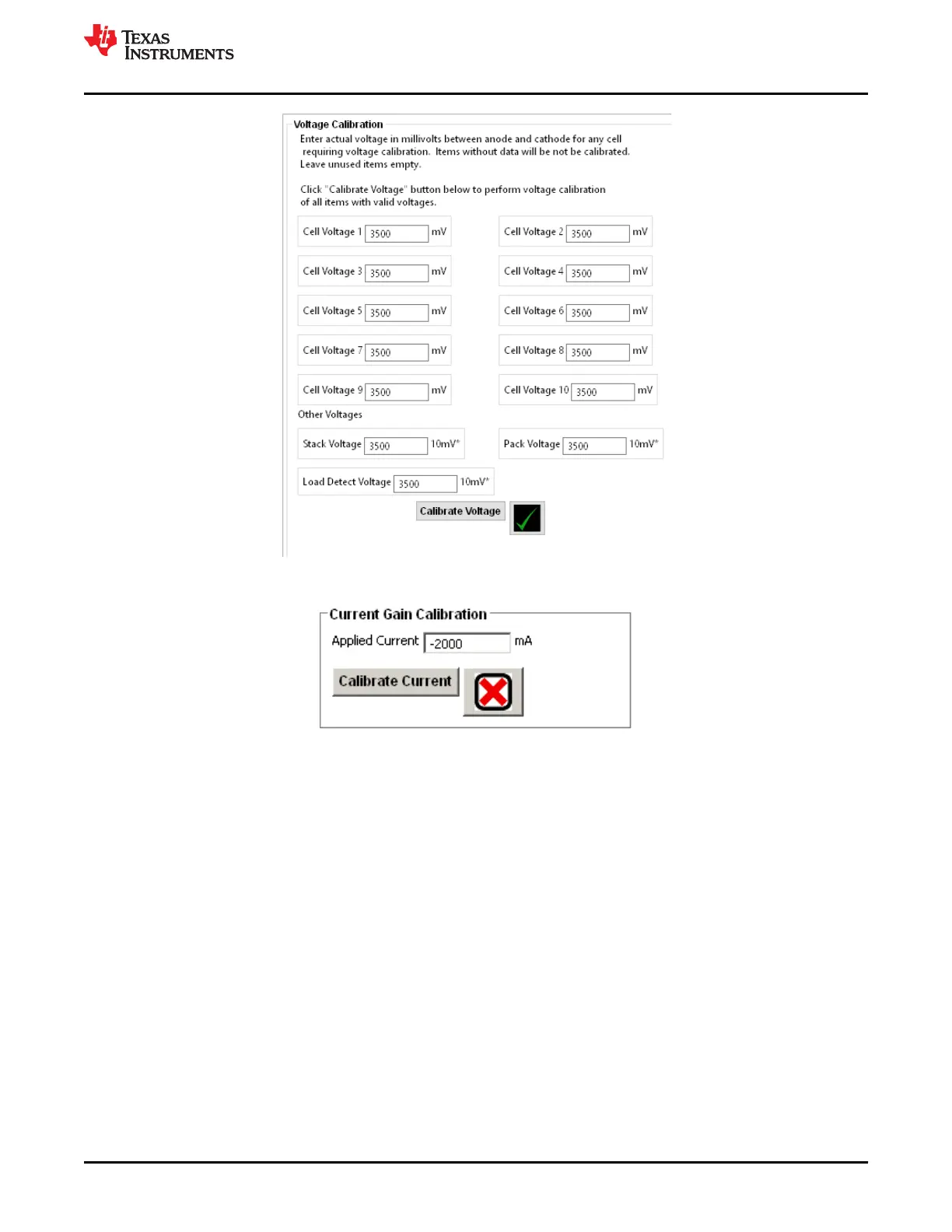

Figure 3-9. Example Voltage Calibration Success
Figure 3-10. Example Current Calibration Failure
3.8 Command Sequences
Features are controlled by commands as described in the BQ76942 data sheet. Data is available from registers,
and the registers view shows data, but a user may want to send specific commands to the device. The
Command sequences tool allows this operation and is shown in Figure 3-11. The Device Send and Receive
section allows read or write to a single or consecutive locations. The Command Sequence section allows reads
and writes to be intermixed in a sequence. Sequences may be stored to files or called from files. Files may be
assigned to buttons in the Command Sequence File Assignment Buttons section. Results can be viewed in the
Transaction Log and saved to a file if desired.
www.ti.com
Battery Management Studio Software
SLUUC32A – NOVEMBER 2019 – REVISED OCTOBER 2020
Submit Document Feedback
BQ76942 Evaluation Module 15
Copyright © 2020 Texas Instruments Incorporated
