Texecom Impaq S User Manual

INS877-4 17/26
configuration

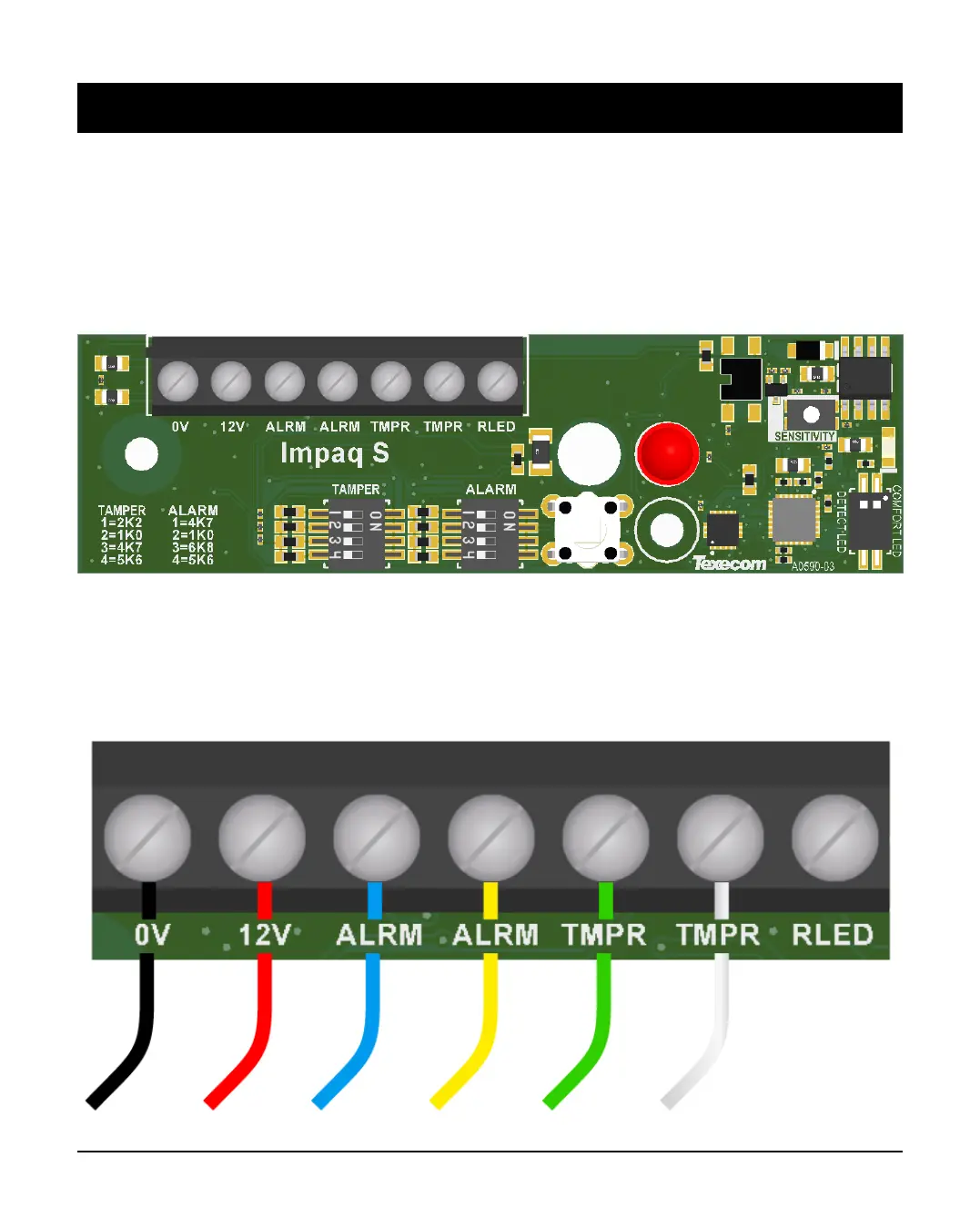

The Impaq S and S Grade 3 have three wiring options.
In all cases, power should be provided to the 0V and 12V by an EN50131 compliant
power supply.
Option 1
The alarm and tamper loops can be wired independently and function as normally
closed zone inputs.
Note: that the EOL DIP switches should all be turned OFF in this configuration
