Texi Tronic 1 User Manual

8

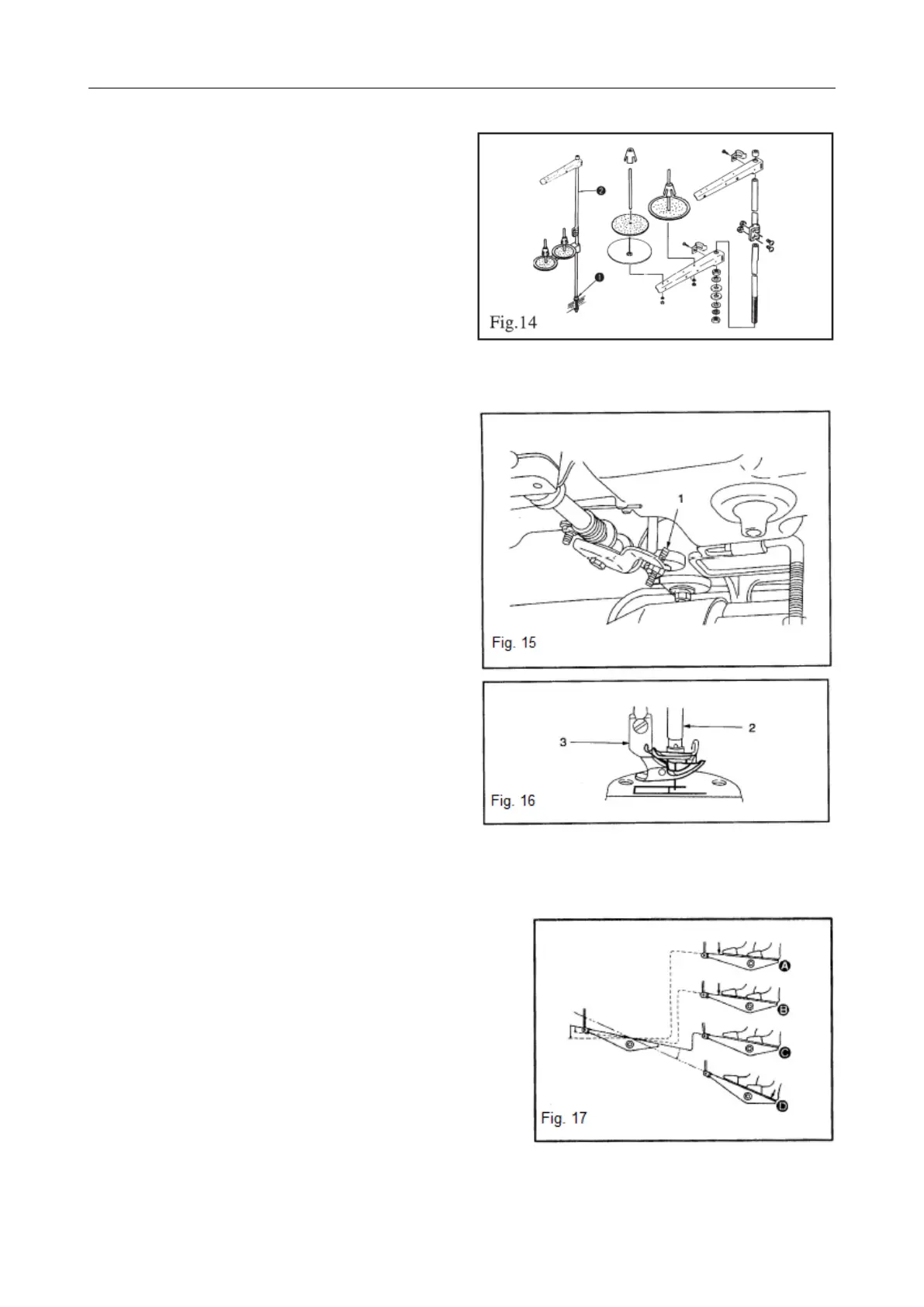

11. Installing the thread stand
1. Assemble the thread stand and insert it into the
opening in the machine table top.
2. Fasten the fixing nut (1) in order to secure the
stand.
12. Setting presser foot lifting height using the knee lifter
1. Standard presser foot raising height is equal to
6 mm.
2. It can be increased to 13 mm by means of the
regulation screw (1).
3. After setting the foot raising height to over 10 mm,
check if the lower end of the needle bar (2) does
not come into contact with the foot (3) at its low-
est point.
13. Operating the pedal
The pedal works in four stages:
1. After the pedal’s front part is pressed lightly, low
sewing speed is obtained (position B).
2. When the pedal is pressed more forcefully to the
front, speed will increase, reaching a maximum at
the lowest point (position A).
3. When the pedal is in its neutral position, the needle
stops (in the upper or lower position, position C).
4. If the needle stops in the lower position, the pedal
should be pressed in the reverse direction and the
needle will be raised (if it is stopped in the upper
position, nothing will happen, position D).
