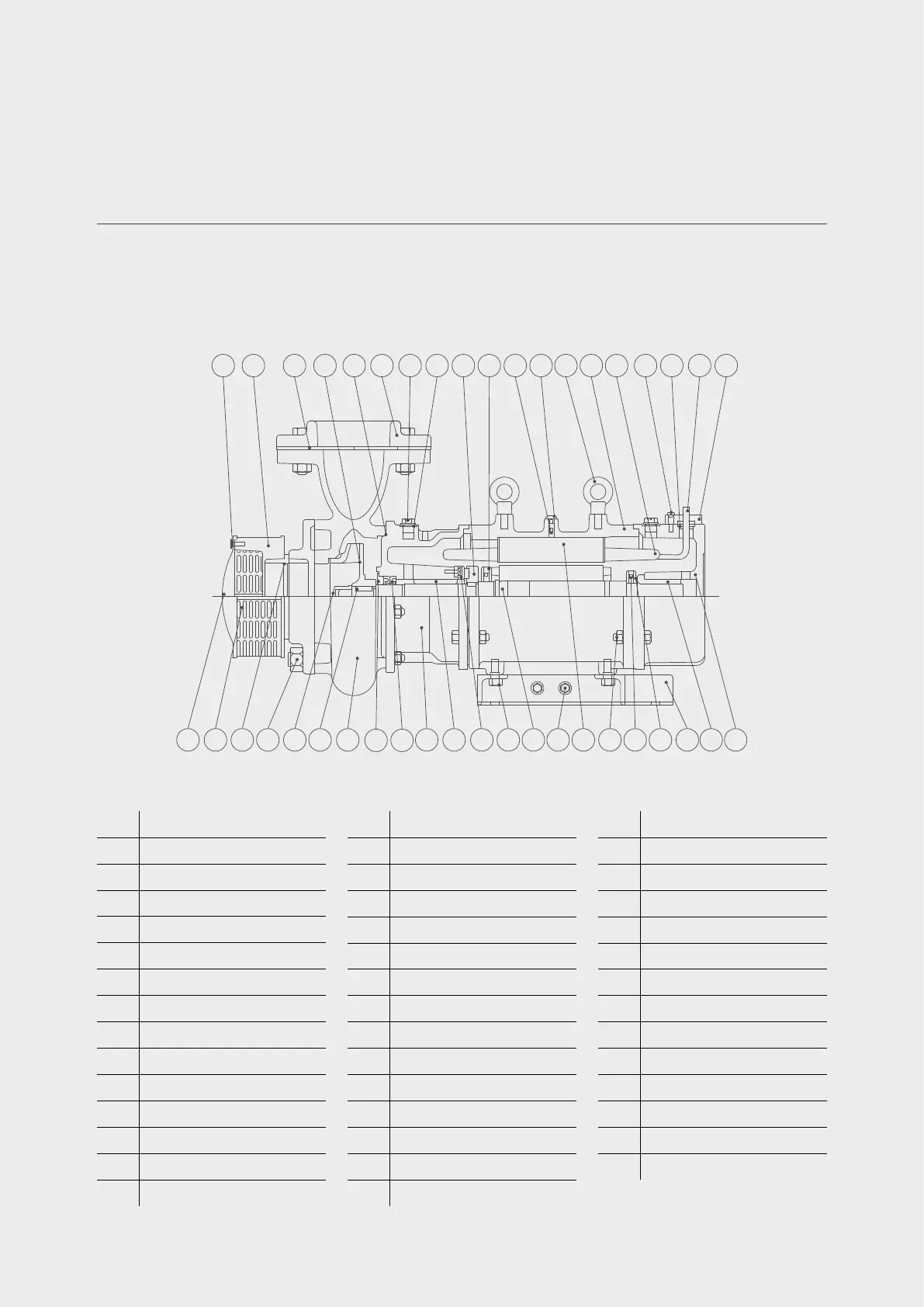

Cross-section view of a SSM Series Single Phase Openwell Submersible Monoblock is shown below in Fig. 3:
Fig. 3 Cross-section view of single phase openwell submersible monoblock “SSM” series
No. PART NAME
1 Strainer Cap
2 Strainer
3 Nipple
4 Stud & Nut
5 Hexagon Dome Nut
6 Parallel Key
7 Casing
8 Sand Guard
9 Oil Seal
10 Front Cover
11 Bush
12 Thrust Pad
13 Hex. Head Bolt
14 Rotor With Shaft
No. PART NAME
15 Hex. Head Bolt & Washer
16 Stator Stack
17 Hex. Head Bolt & Nut
18 Hex. Socket Set Screw
19 CT & BG Collar
20 Base Plate
21 Thrust Bush
22 Rear Cover
23 Cable Gland
24 PVC Insulated Cable
25 Cable Gland Bush
26 C.H Screw
27 Coil
28 Motor Body
No. PART NAME
29 Eye Bolt
30 Cap
31 Hex. Socket Set Screw
32 Rotor Balancing Collar
33 Thrust Collar
34 O-Ring
35 Drain Plug
36 Flange Circular
37 Gasket Circular
38 Impeller
39 Gasket Circular
40 Strainer Bracket
41 CSK Screw
1
2
3 4 6 10
12
13
9
15
16
11
17
18 19 20
5
21 22
8
7
14
41
40 39 38 37 36 35 3233 31 29
27
26 25
24
2334 2830
OMOW002A 10 2020.01
