8. Cross-section view

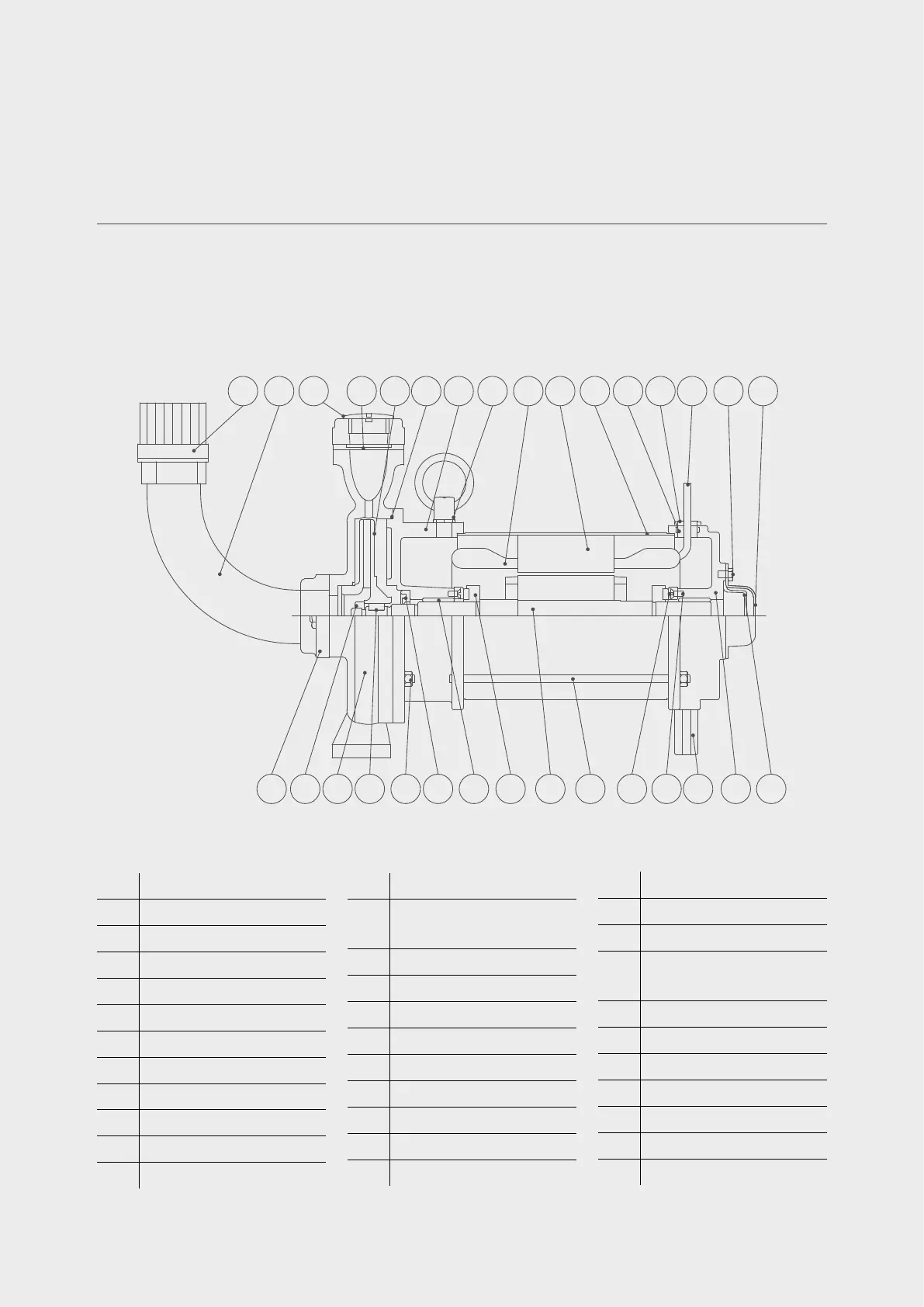

Cross-section view of TSSM Series Openwell Submersible Monoblock is shown below in Fig. 2:
Fig. 2 Cross-section view of single phase openwell submersible monoblock “TSSM” series
No. PART NAME
1 Flange Oval
2 Lock Nut
3 Casing
4 Parallel Key
5 Hex Nut
6 Oil Seal
7 Bush
8 Thrust Collar
9 Rotor With Shaft
10 Stud
11 Thrust Pad
No. PART NAME
12
Csk Head Hex Socket Set
Screw
13 Support - Rear Cover
14 Rear Cover
15 Diaphragm
16 Diaphragm Cap
17 Hexagon Head Bolt
18 Pvc Insulated Cable
19 Cable Gland
20 Cable Gland Bush
21 Stator Housing Shell
No. PART NAME
22 Stator Stack
23 Coil
24
Eye Bolt (Collapsable Ring)
& Washer
25 Front Cover
26 O-Ring
27 Impeller
28 Gasket Oval
29 Plug
30 Bend
31 Strainer
21
4
5
6
7
8 9 10
11 12 14
16
17
181920
15
2122
23
24
2526
27
3
2829
13
31
30
OMOW002A 9 2020.01
