Texmo Industries Taro Pumps SSM Series User Manual

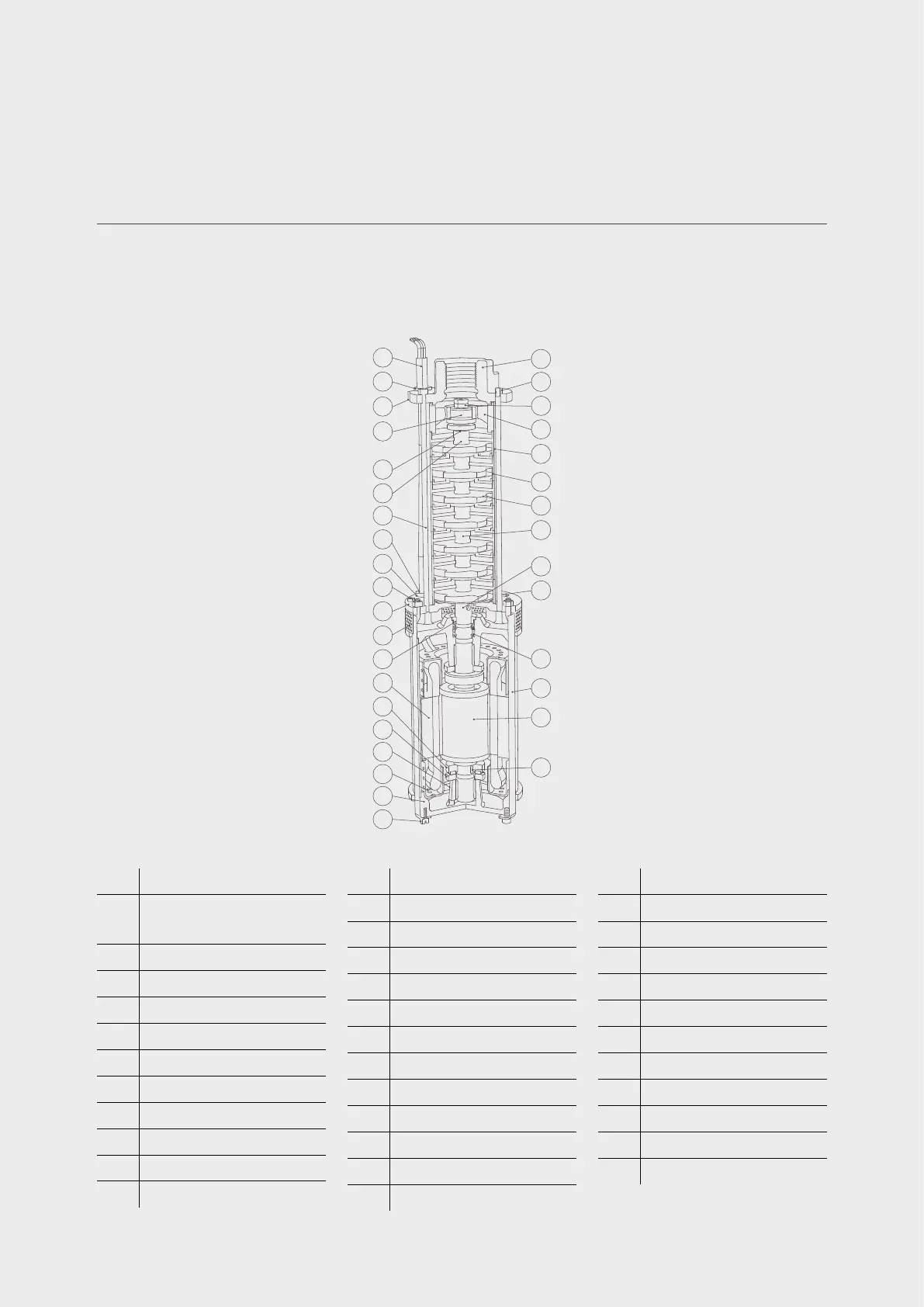

Cross-section view of a SVSM Series Single Phase Vertical Openwell Submersible Monoblock is shown below
in Fig. 4:
Fig. 4 Cross-section of a single phase vertical openwell submersible monoblock “SVSM” series
No. PART NAME
1
Hex Socket Head Cap
Screw
2 Motor Base
3 Wdg Over Hang Protector
4 Carbon Bush
5 Thrust Pad
6 Thrust Collar
7 Body With Stator
8 Sand Guard
9 Strainer
10 Suction Chamber
11 Earth Screw
No. PART NAME
12 Washer
13 Cable Gland
14 Stud
15 Sleeve
16 Lock Pin
17 Bush
18 Cable Clamp
19 Cable Protector
20 Cable
21 Delivery Chamber
22 Hexagonal Nut
23 Lock Nut
No. PART NAME
24 Intermediate Housing
25 Pump Housing Shell
26 Diffuser Housing
27 Impeller
28 Pump Shaft
29 Coupling
30 Drain Plug With Washer
31 Oil Seal
32 Tie Bar
33 Rotor With Shaft
34 Parallel Key
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
OMOW002A 11 2020.01
