TFT Tornado RC Instructions For Installation, Operation And Maintenance

©Copyright Task Force Tips LLC 2008-2021 10 LIY-300 January 13, 2021 Rev18

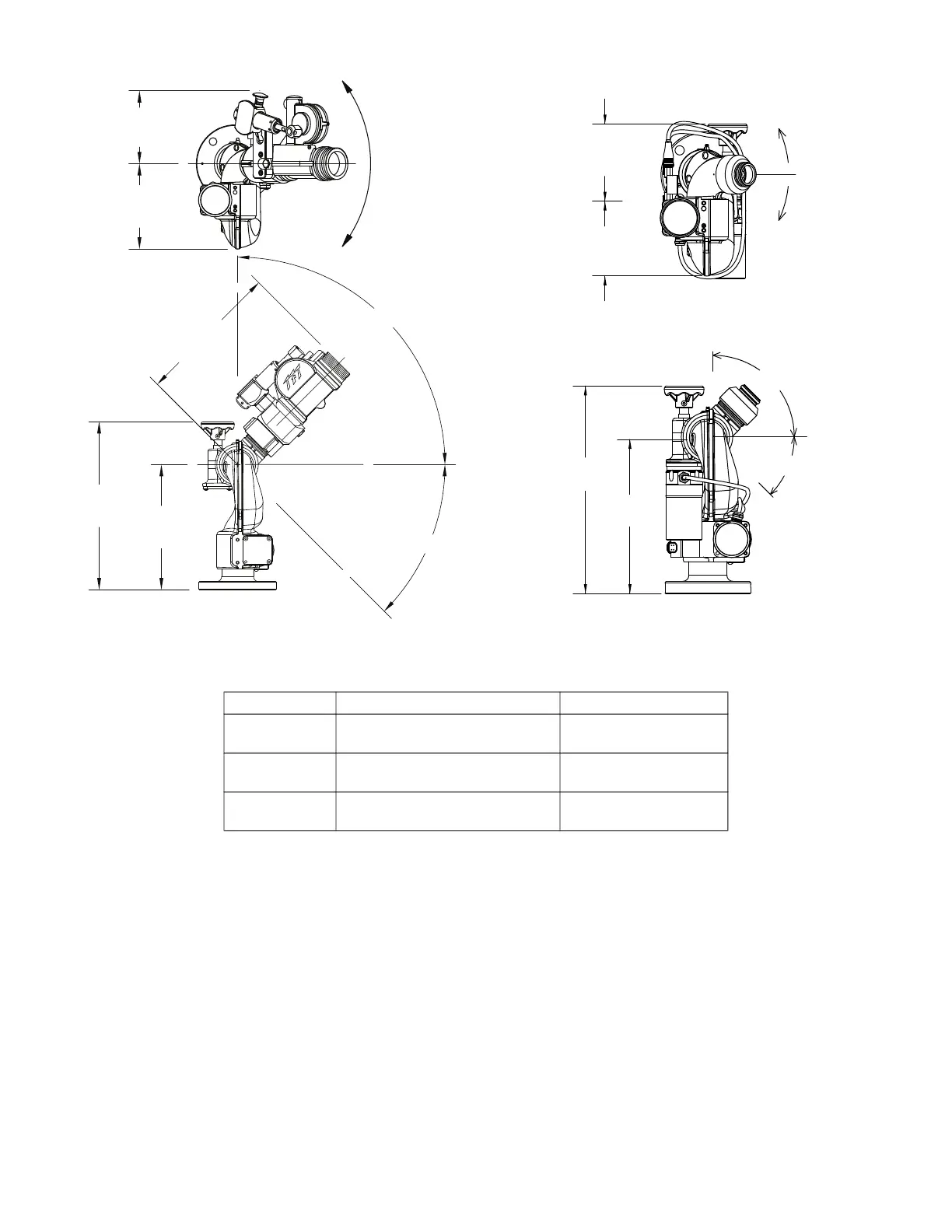

MODEL INLET FITTING TYPE ADDITIONAL HEIGHT
Y2-SD*A 2.5” ANSI 150 FLANGE 0.60”
15 mm
Y2-SF*A 3.0” ANSI 150 FLANGE 0.00”
0 mm
Y2-SG*A 4.0” ANSI 150 FLANGE
DN100 PN16
0.16”
4 mm
90°
45°
185° LEFT
185° RIGHT
[158mm]
6.20
[153mm]
6.00
[425mm]
16.70
[315mm]
12.40
Figure 3.7D
TORNADO LT
7.00” [178mm]
OSC MAX.
8.20”
[208mm]
360°
CONTINUOUS
45°
90°
16.2”
[411mm]
12.10”
[306mm]
13.80”
[351mm]
Figure 3.7C
TORNADO OSC

TFT Tornado RC Specifications

General

Brand	TFT
Model	Tornado RC
Category	Firefighting Equipment
Language	English
