3.4 USE WITH SALT WATER
Use with salt water is permissible provided the equipment is thoroughly cleaned with fresh water after each use. The service life of the
equipment may be shortened due to the effects of corrosion, and is not covered under warranty.
3.5 VARIOUS MODELS AND TERMS

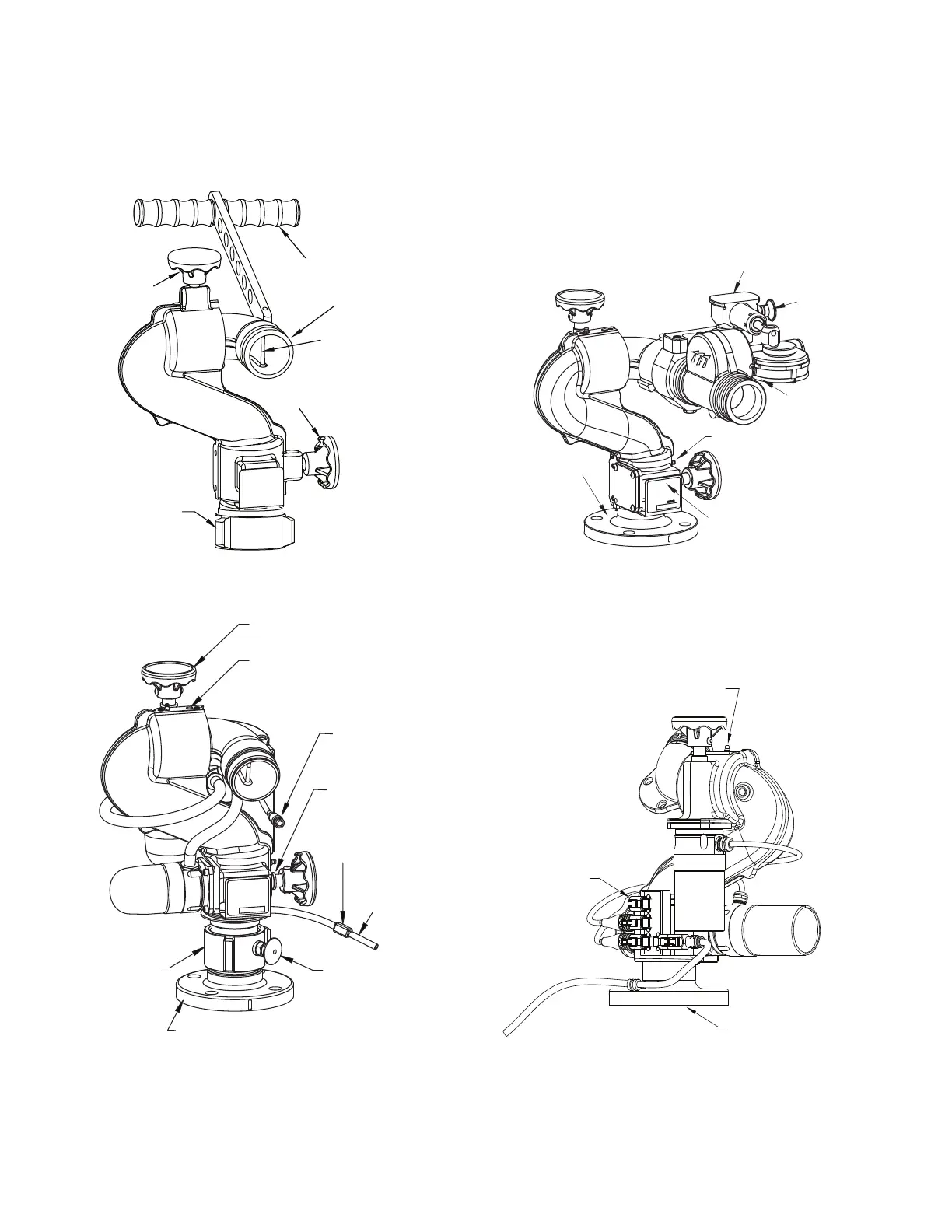

The Tornado monitor is available in several different models and inlet connections. Basic body styles are shown below, along with
various parts and controls.
The Torn ado monitor is avai lable in several different models and inlet connections. Basic body styles are shown below, along with various parts and c on tr ols.
The Monsoon Monitor comes in manual and electric remote control le d mode ls. Man ual models are available wi on both axis or a tiller bar model that uses a ti lle r bar to control horizontal rotation. Electric remote control models are ava ilable in a standard model (suitable for on top of pumpers), a Lad der model and a Platform model. The Ladder or Platform model has a smaller swing radius and has horizontal travel sto ps f act ory inst alled at 90° left and right (180° total).trol
Figure 3.5
OUTLET
TILLER BAR
TURNING
HORIZONTAL ROTATION
LOCKING KNOB
VANE
2-1/2” NH
COUPLING
ELEVATION
LOCKING
KNOB
2 1/2" NH
COUPLING
WITH LOCK
MANUAL OVERRIDE KNOB
FOR ELEVATION
ELEVATION TRAVEL STOP
SEE SECTION 4.2
HORIZONTAL ROTATION
TRAVEL STOP
SEE SECTION 4.2
ELECTRIC NOZZLE
CONNECTION
ELECTRICAL
CONNECTOR
POWER AND
COMMUNICATION
CORD
QUICK CONNECT INLET
(2 1/2" ANSI 150 FLANGE SHOWN)
COUPLING LOCK
RELEASE PULLPIN
INLET FLANGE
MODEL & SERIAL
NUMBER ON LABEL
OSCILLATION
UNIT
GREASE FITTING
FOR HORIZONTAL ROTATION
OSCILLATION
ENGAGE KNOB
OSCILLATION
SWEEP SETTING
ELEVATION
GREASE FITTING
ELECTRIC
NOZZLE
CONNECTION
INLET FLANGE
TORNADO TORNADO OSC
