TFT Tornado RC Instructions For Installation, Operation And Maintenance

©Copyright Task Force Tips LLC 2008-2021 15 LIY-300 January 13, 2021 Rev18

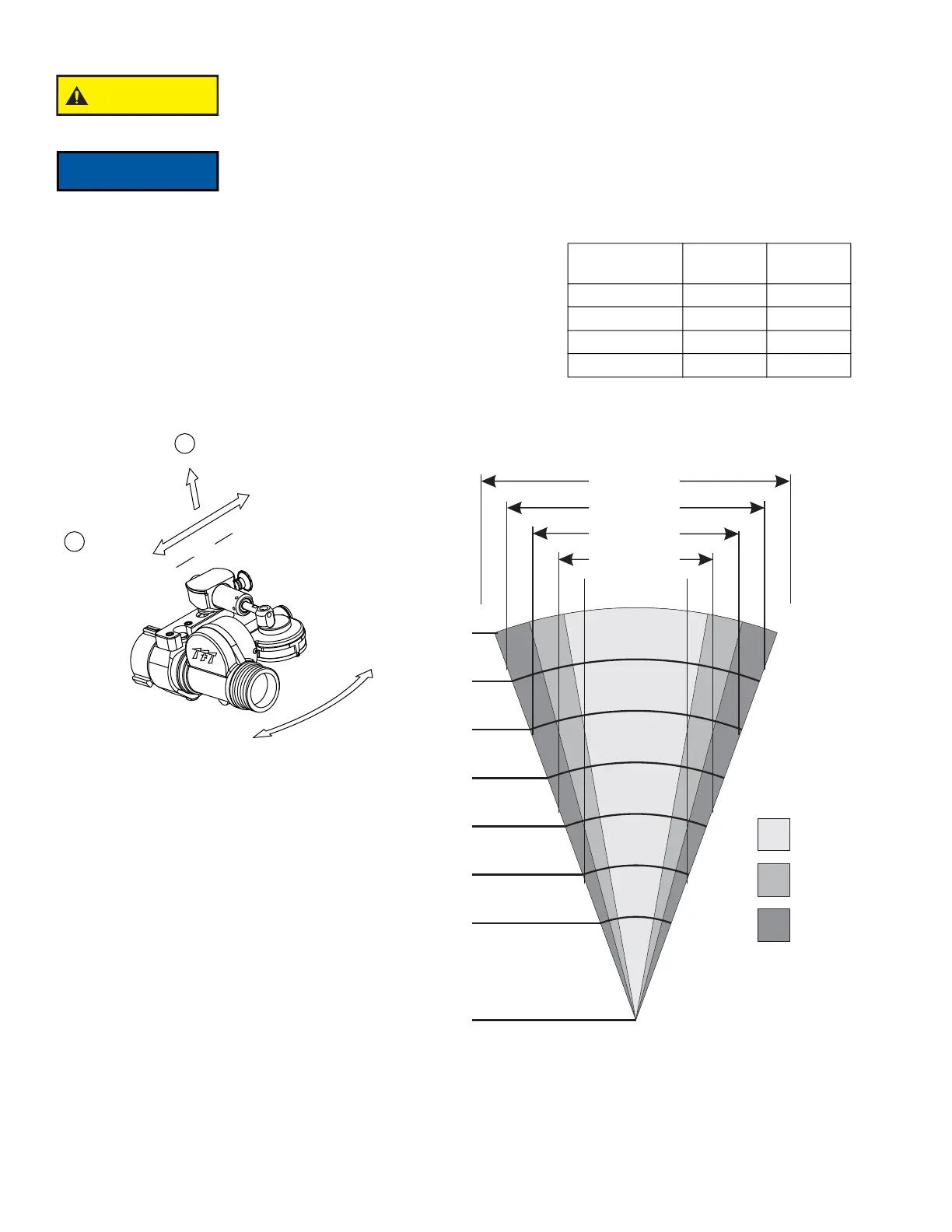

5.2.5 COVERAGE AREA OF THE OSCILLATING MONITOR
To adjust the area of coverage, refer to figure 6.3. Engage the oscillating mechanism once the desired angle has been set.
Oscillation speed: The chart shows how many times per minute the
oscillator makes one complete cycle as a function of flow. The higher the
flow, the faster it oscillates.
Nozzle reach: Refer to the operating manual for the specific nozzle. For
reach with oscillation, subtract 20% from the distance.
Figure 5.2
CAUTION
Because the nozzle attached to the oscillator must slow down, stop and reverse direction at the end
of each sweep, the ends of the covered area will receive more water than the center. If the center
area of coverage needs the most cooling, occasionally narrow the area of coverage or use the
oscillator manually.
NOTICE
The type of nozzle and flow pressure are critical to the coverage area. The graph shows coverage
area based on the movement capability of the oscillating mechanism. Actual coverage will depend
on flow, pressure, type of nozzle, angle of fog pattern, and wind conditions.
OSCILLATION SPEED
APPROXIMATE
CYCLES/MIN
GPM L/min
8 175 650
13 250 1000
21 375 1500
28 500 2000
200' / 61m
175' / 53m
150' / 45m
125' / 38m
100' / 30m
75' / 22m
50' / 15m
0'
20 DEGREES
30 DEGREES
40 DEGREES
WIDTH OF COVERAGE
150' / 45m
125' / 38m
100' / 30m
75' / 23m
50' / 15m
COVERAGE AREA OF OSCILLATING MONITOR
DISTANCE
30°
40°
20°
SLIDE TO
CHANGE
ANGLE
LIFT TO CHANGE
SWEEP SETTING
2
1
SWEEP
