TFT Tornado RC User Manual

5.1.3 INPUTS SIGNAL CONFIGURATION
Figure 5.1.3
Panel Mount Operator Station
The Panel Mount Operator Station is shipped from the factory configured to accept , but can be field changed to
accept . To change the configuration:
1. Remove lid from enclosure.
2. Locate DIP switches on communication board.
3. Slide DIP switch #4 to the OFF position to select GROUND inputs or slide to the ON position to select VOLTAGE inputs.
4. Replace lid. Verify rubber seal is clean and undamaged. Verify that no wires are caught between lid and box.
ground input signals
+12/24 volt DC input signals
VOLTAGE
INPUTS
GROUND
INPUTS
5.1.4 PANEL MOUNT OPERATOR STATION WITH AT STOW RELAY (Y4E-RP)
The Panel Mount Operator Station provides feedback for the user that the monitor is in the AT STOWED position. The Operator station
contains a circuit board that is equipped with a relay that is energized when the monitor is in use and de-energized when the monitor
reaches its final STOW location. The contact rating of the relay is 1 amp @ 30VDC for resistive loads and 0.2 amps @ 30VDC for
inductive loads.
The AT STOW relay has one Form-C contact (common, normally open, normally closed) that can be used. The
figure above shows the terminal blocks available for user wiring.

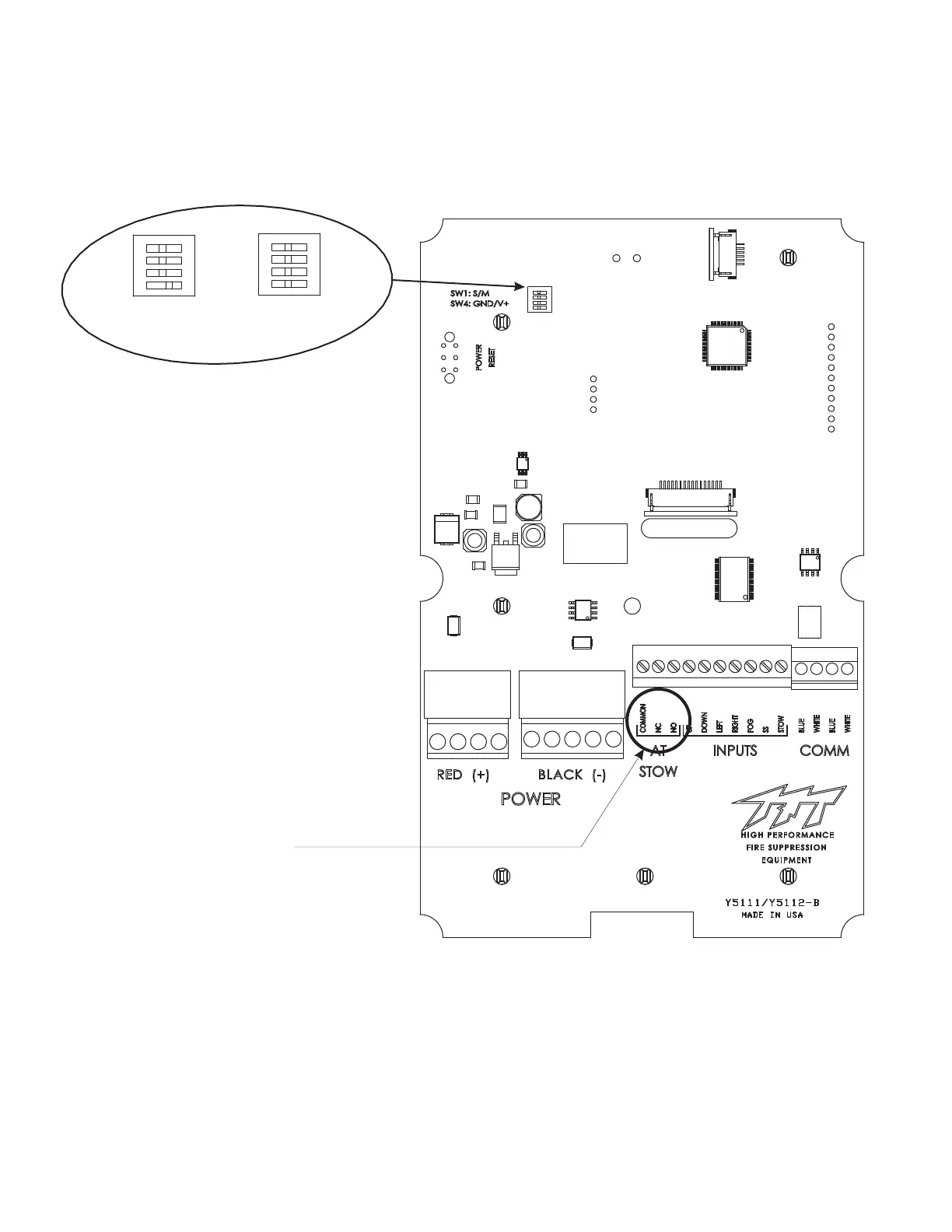

Figure 5.1.4
Relay / Terminal Location
AT STOW RELAY
USER TERMINALS
