TFT Tornado RC - Inlets and Outlets5

3.3 INLETS AND OUTLETS
Available inlets and outlets are shown below and should be specified at time of order.
5

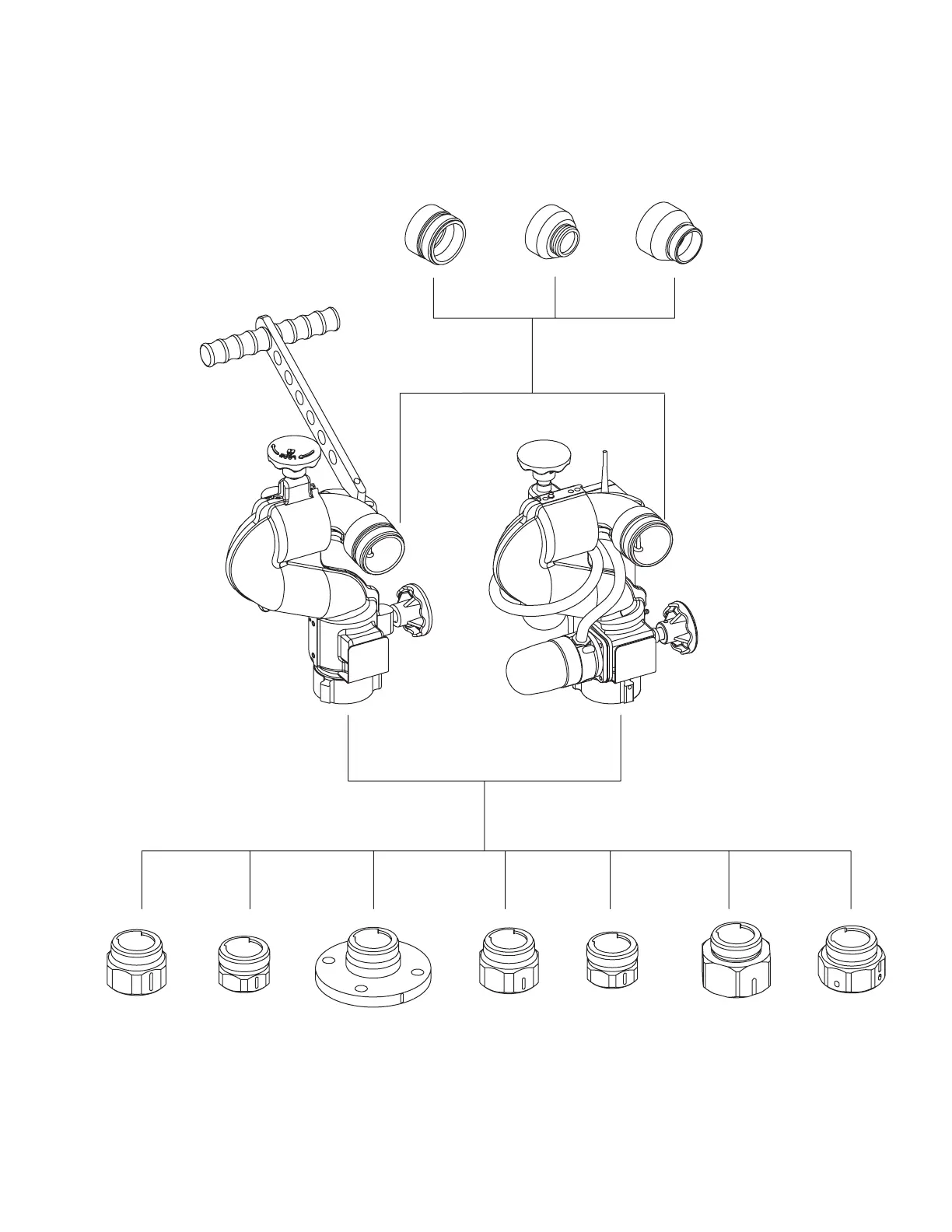

Fig 3.3
Inlets and Outlets
2.5” NH
MALE
(Y2320ANJ)
1.5” NH
MALE
(Y2420ANF)
2.5” BSP
MALE
(Y2420ABJ)
INLET COUPLING
2.5
- 7.5 NH
TORNADO
RC MODELMANUAL TORNADO (TILLER BAR) MODEL
2.0” BSP
FEMALE
(Y2425A)
2.5” BSP
FEMALE
(Y2405A)
2.5” ANSI
150
(Y2430A)
2.5” NPT
FEMALE
(Y2400A)
2.0” NPT
FEMALE
(Y2420A)
3.0” NPT
FEMALE
(Y2403A)
CODE-RLF
(Y2413A)
