TFT Tornado RC User Manual

1
2
3
4
5
6
7
8
9
1 6-32 x 5/16 LONG SHCS WITH HEAD SEAL 4 VT06S32SH312
2 CUP SEAL 1.0625 x .5625 x 1/4 1 Y4620
3 MOTOR SOCKET, ANGLED FITTING 1 Y4617
41
51
61
71
81
91
# DESCRIPTION QTY PART #
O-RING-018, 3/4 ID 1/16 CS VO-018
CONDUIT FITTING Y5213
HOSE - 3/8" ID PUSH-LOK Y5250
O-RING-038, 2-5/5 ID 1/16 CS VO-038
GEAR MOTOR WITH ENCODER Y4611
ENCLOSURE Y4616

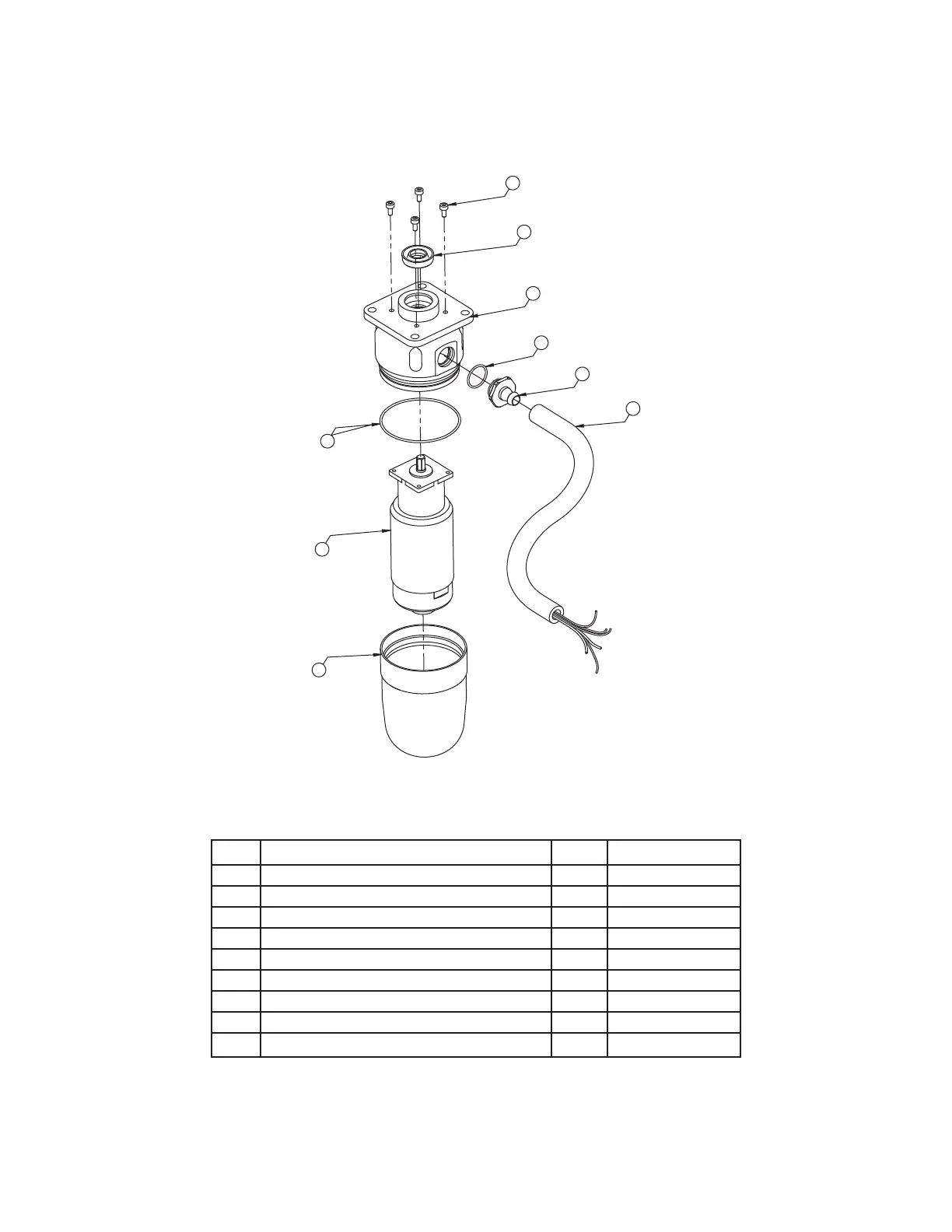

Fig 9.0C
Motor Subassembly
9.0 TORNADO RC DRAWING & PARTS LIST
35
