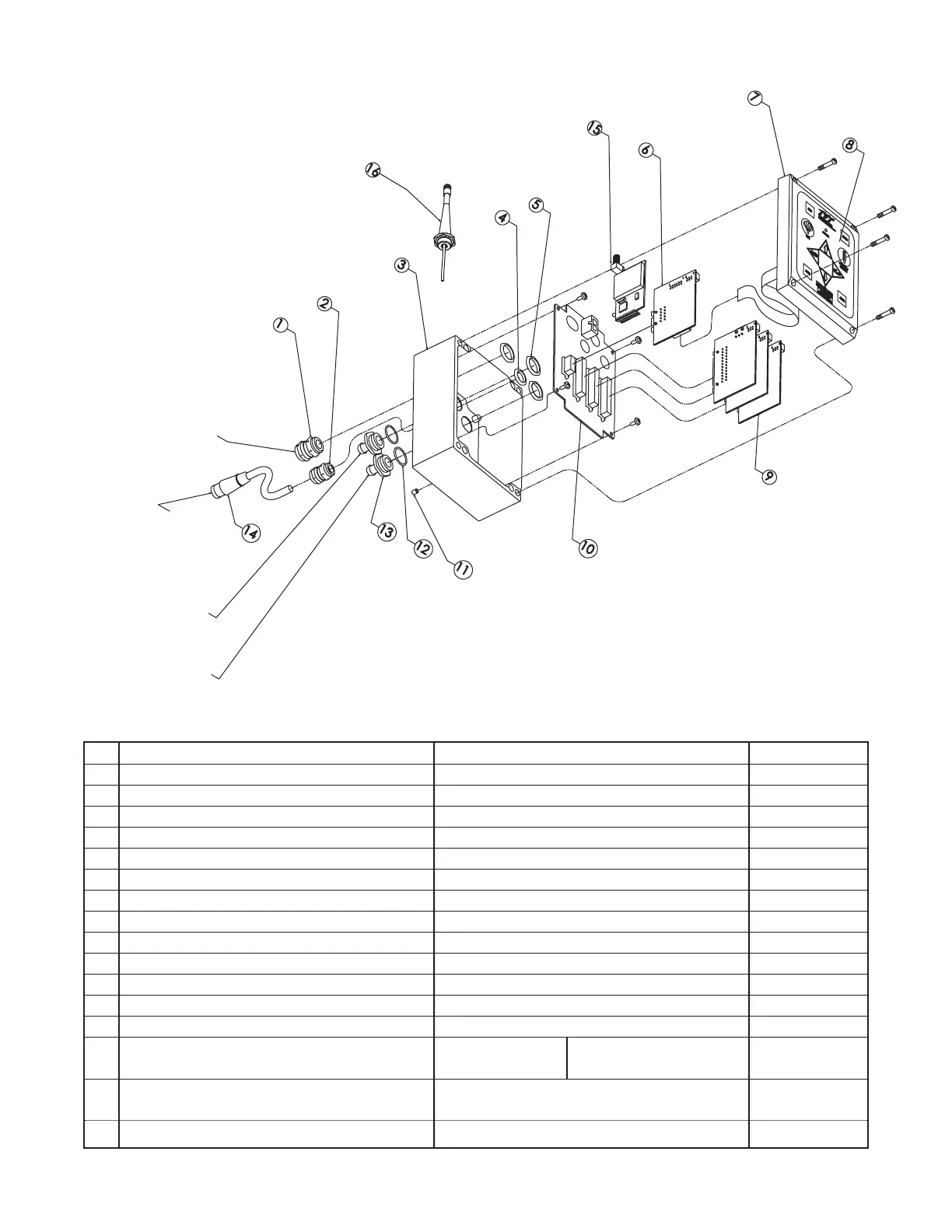

9.0 TORNADO RC DRAWING & PARTS LIST
# DESCRIPTION QTY. PART NO.
1 CABLE FITTING PG11 1 Y5205
2 CABLE FITTING PG9 1 Y5245
3 ENCLOSURE - BOX 1 Y5115
4 LOCKNUT - PG9 1 Y5246
5 LOCKNUT - PG11 3 Y5206
6 BOARD - COMMUNICATION 1 Y5110-B
7 ENCLOSURE - LID 1 Y5115
8 CONTROL SWITCH PAD 1 Y5700
9 BOARD - MOTOR CONTROL 3 Y5100
10 BOARD - MAIN 1 Y5105
11 V10-32 x 1/4 SET SCREW 1 VT10Y32SS250
12 O-RING-018 2 VO-018
13 CONDUIT HOSE FITTING 2 Y5213
14 FEMALE PLUG - 6 POLE
FOR TORNADO RC NOZZLE CONNECTION
10.0" TOTAL 5.0" EXPOSED CABLE Y5475
LENGTH USED (NOT INCLUDING PLUG)
15 BOARD-OEM 900 MHZ RF MODULE 1 Y5710
(included with part YE-RF-900)
16 ANTENNA W/FITTING 1 Y5881
TO
POWER
CABLE
TO TFT
ER NOZZLE
MALE PLUG
TO HORIZONTAL
GEAR MOTOR
TO VERTICAL
GEAR MOTOR
