Tharo Systems H-427 - LCD Panel Module

6

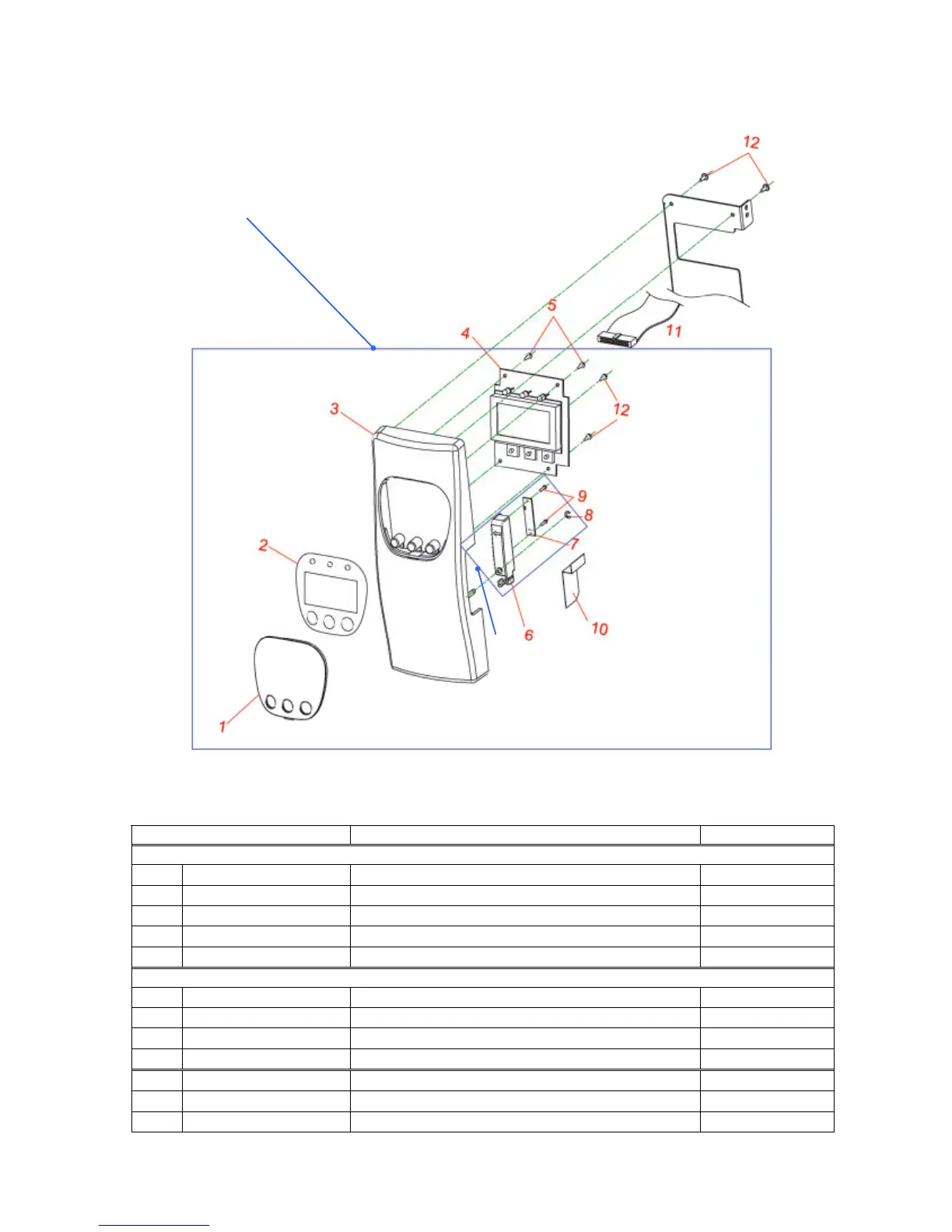

2.03 LCD Panel Module
1
2
NOTE: Use Part Number 023-22P017-060 for replacement Strip Sensor Assembly
NOTE: Use Part Number 023-22P014-060 for replacement LCD Front Panel
Part No. Description Remarks
1. LCD Left Panel Module Parts
1 700-041000-001 LCD PANEL
2 755-006300-010 NAME PLATE
3 700-031703-031 LEFT PANEL
4 160-000103-030 LCD BOARD ASSEMBLY
5 765-230085-245 TAPPING SCREW/T/BK/3*8(TAP/III)
2. Strip Sensor Module Parts
6 700-036003-011 STRIP PCB BOX
7 160-000114-001 STRIP SENSOR ASSEMBLY
8 775-620307-063 E-RING/Φ3.0*Φ7.0*0.6t/mm
9 765-217054-145 TAPPING SCREW/P/NI/1.7*5(TAP/III)
10 745-001800-000 MYLAR PLATE
11 227-126004-060 HOUSING 254FC-26Px2
12 765-230085-245 TAPPING SCREW/T/BK/3*8(TAP/III)
