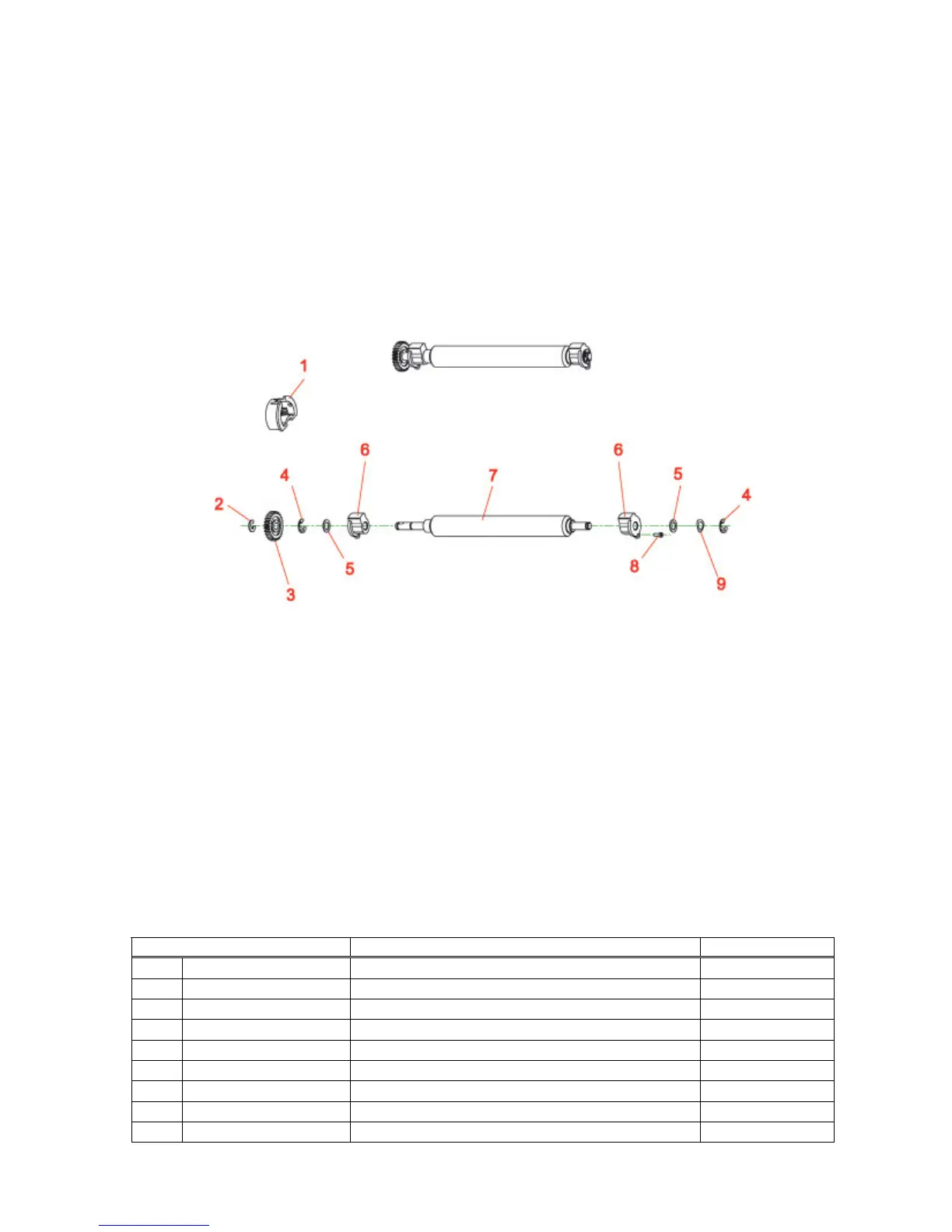

2.05 Platen Roller
NOTE: Use Part Number 023-22P009-060 for replacement Platen Roller Assembly
Part No. Description Remarks
1 700-045800-001 PLATEN-BUSHING-CAP (NL66/Green)
2 775-620409-063 E-RING/Φ4.0*9.0*0.6t/mm(BK)
3 715-012608-100 GEAR/26T*M0.8 (NL66)
4 775-620511-063 E-RING/Φ5.0*Φ11*0.6t/mm
5 775-C60609-053 GRAPHITE WASHER/Φ6.2*9.5*0.5t
6 730-000800-000 PLATEN BUSHING(BRONZE)
7 705-002100-000 PLATEN
8 765-120052-140 MACHINE SCREW/I/NI/M2*5
9 775-520610-013 WAVE WASHER /Φ6.8*Φ10.6*0.15t/mm
To Next Page
