If the R
disk dr
warni
bad sec
possi
eallocated Sector Count or Current Pending Sector of a hard
ive is not zero, the status of the disk will show “Warning”. This
ng is only used to alert the system administrator that there are
tors on the disk, and they should replace those disks as soon as
ble.
RAID Information

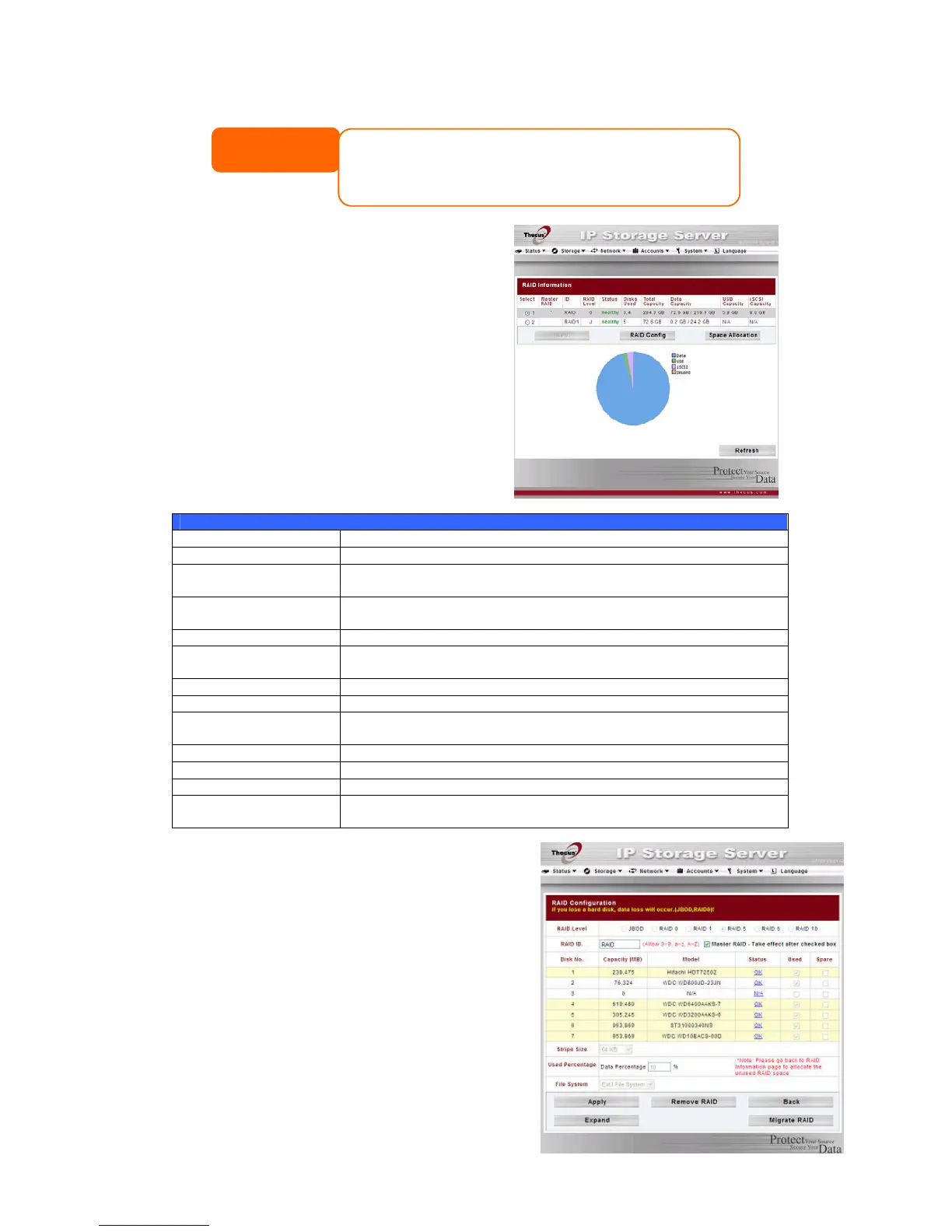

From the Storage menu, choose the RAID
item and the RAID List screen appears.
This screen lists the RAID volumes currently
residing on the N7700. From this screen,
you can get information about the status of
your RAID volumes, as well as the
capacities allocated for data, USB target,
and iSCSI. There is also a graph which
represents how the RAID volume is
currently allocated.
To configure your RAID settings, press the
RAID Config button to go to the RAID
Configuration screen.
RAID Information
Item Description
Select Used to select the current RAID volume.
Master RAID The RAID volume currently designated as the Master RAID
volume.
ID ID of the current RAID volume.
NOTE: All RAID IDs must be unique.
RAID Level Shows the current RAID configuration.
Status Indicates status of the RAID. Can read either Healthy,
Degraded, or Damaged.
Disks Used Hard disks used to form the current RAID volume.
Total Capacity Total capacity of the current RAID.
Data Capacity Indicates the used capacity and total capacity used by user
data.
USB Capacity Indicates the capacity allocated to USB target mode.
iSCSI Capacity Indicates the capacity allocated to iSCSI.
RAID Config Press this to configure RAID volumes.
Space Allocation Press this to adjust the space allocated for data, USB target
mode, and iSCSI.
RAID Configuration
On the RAID List screen, press the RAID
Config button to go to the RAID
Configuration screen. In addition to RAID disk
information and status, this screen lets you
make RAID configuration settings.
For more information on RAID, see Appendix
C: RAID Basics.
