Thecus N0503 User Manual

13
N7700 Series:

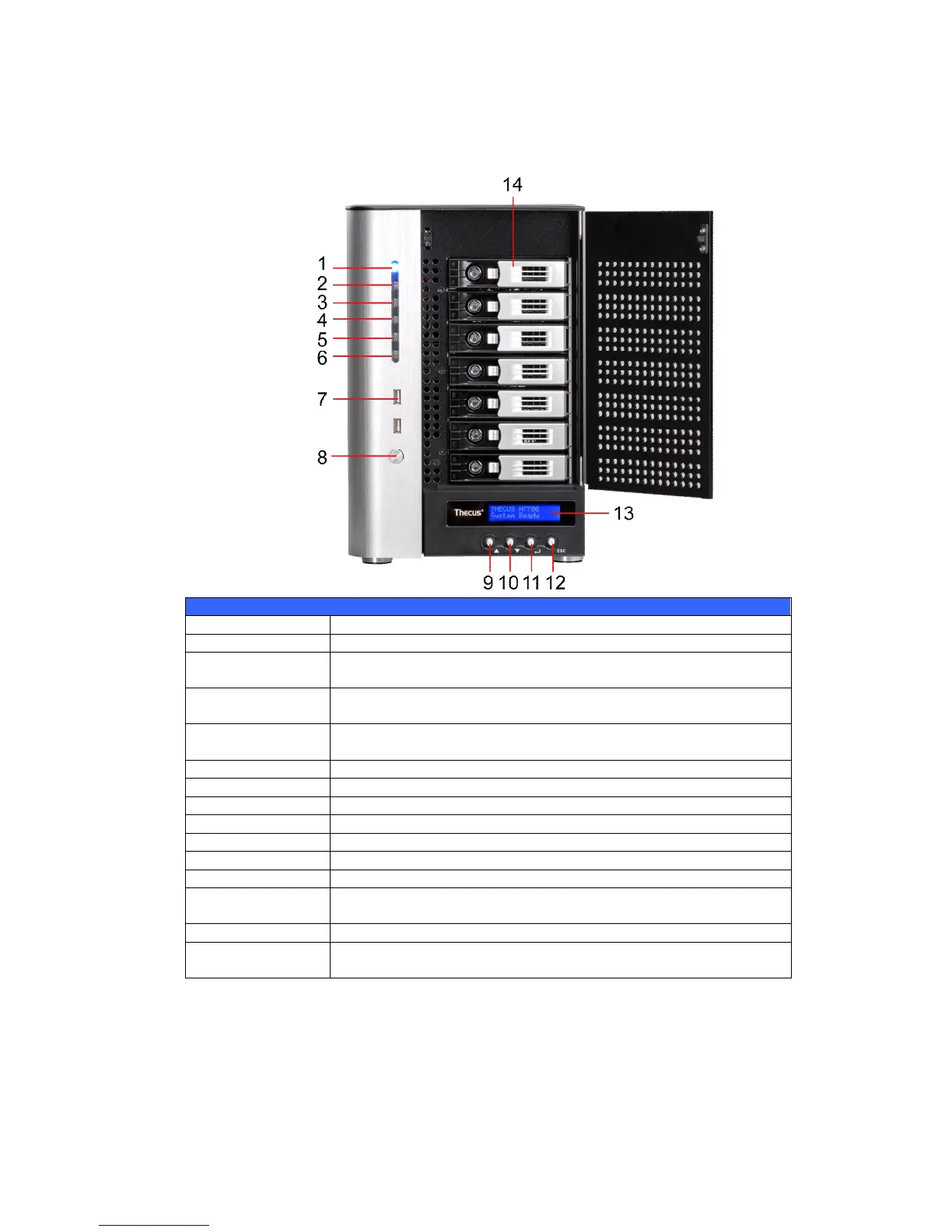

The Thecus N7700 series front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
1.Power LED  Solid blue: System is power on.
2.System LED  Solid orange: system is being upgraded or system startup; data
currently inaccessible
3.WAN/LAN1 LED  Solid green: network link
 Blinking green: network activity
4.LAN2 LED  Solid green: network link
 Blinking green: network activity
5.USB Copy LED  Solid blue: files are being copied from a USB storage device
6.eSATA link LED  Solid blue: external eSATA device has connected
7.USB Port  USB 2.0 port for compatible USB devices, such as USB disks.
8.Power Button  Power on/off N7700
9.Up Button ▲  Push to scroll up when using the LCD display
10.Down Button ▼
 Push to enter USB copy operation screen
11.Enter Button   Push to enter LCD operate password for basic system setting
12.Escape Button
ESC
 Push to leave the current LCD menu
13.LCD Display  Displays current system status and warning messages
14.HDD Trays  Seven 3.5” SATA HDD trays
 Locks are provided for added security

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
