Thecus N0503 User Manual

14
1U4600:

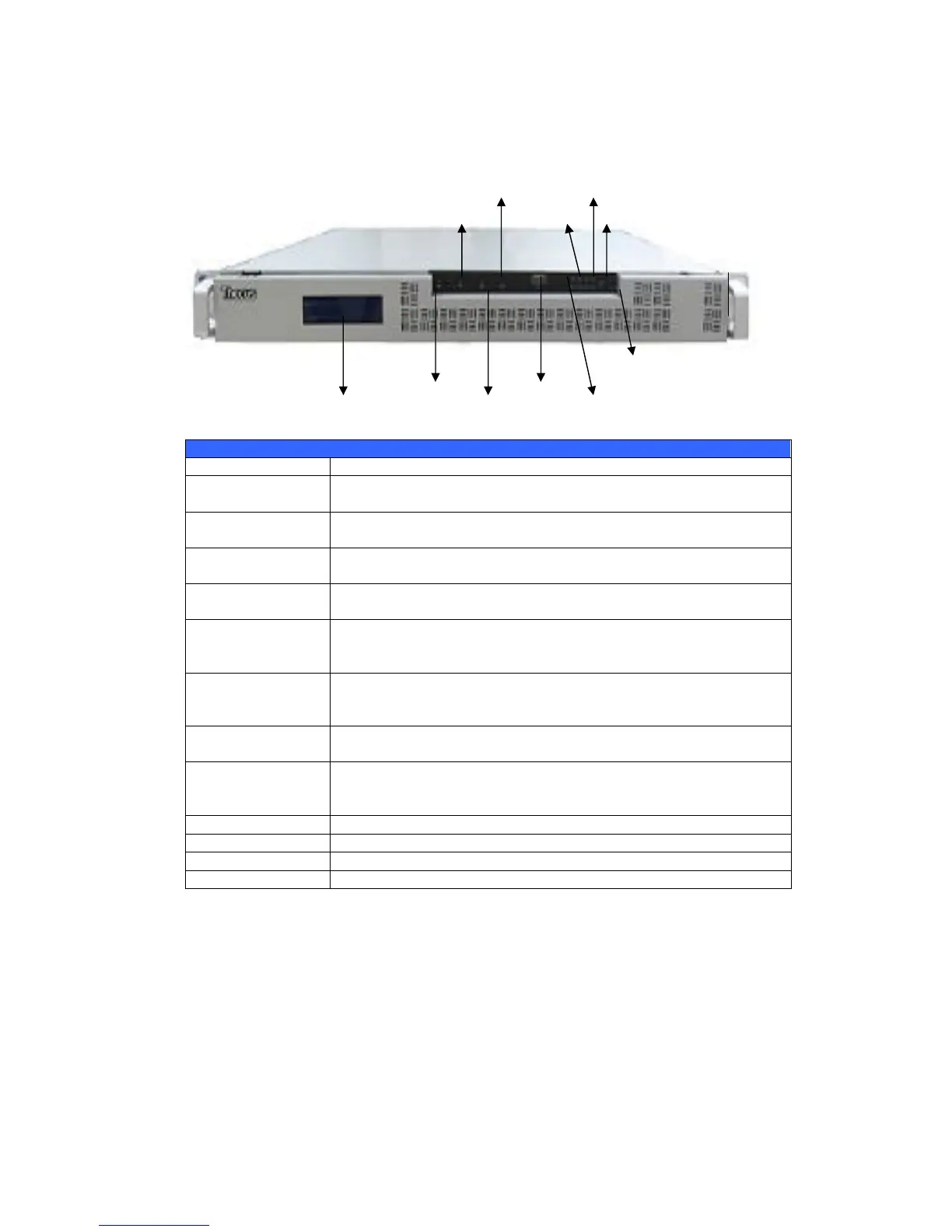

The Thecus 1U4600 front panel has the device’s controls, indicators, and hard disk
trays:
Escape Button PWR LED
Down Button LAN2 LED Power Button
Busy LED WAN/LAN1 LED Reset Button
Up Button USB Port
LCD Display Enter Button Busy LED
Front Panel
Item Description
WAN/LAN1 LED  Solid green: network link
 Blinking green: network activity
LAN2 LED  Solid green: network link
 Blinking green: network activity
Busy LED  Blinking orange: system startup or system maintenance; data
currently inaccessible
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers
Power Button  Power on/off 1U4600
 Solid blue: Device is powered on
 Blinking blue: eSATA hard disk is connected and active
Reset Button  Resets the 1U4600
 Press for five seconds during boot process to reset IP address and
admin password
HDD Trays  Four 3.5” SATA HDD trays
 Locks are provided for added security
LCD Display  Displays current system status and warning messages
 Displays hostname, WAN/LAN1/LAN2 IP address, RAID status, and
current time
Up Button ▲  Push to scroll up when using the LCD display
Down Button ▼  Push to scroll down when using the LCD display
Enter Button   Push to confirm information entered into the LCD display
Escape Button ESC
 Push to leave the current LCD menu

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
