1U4600R:

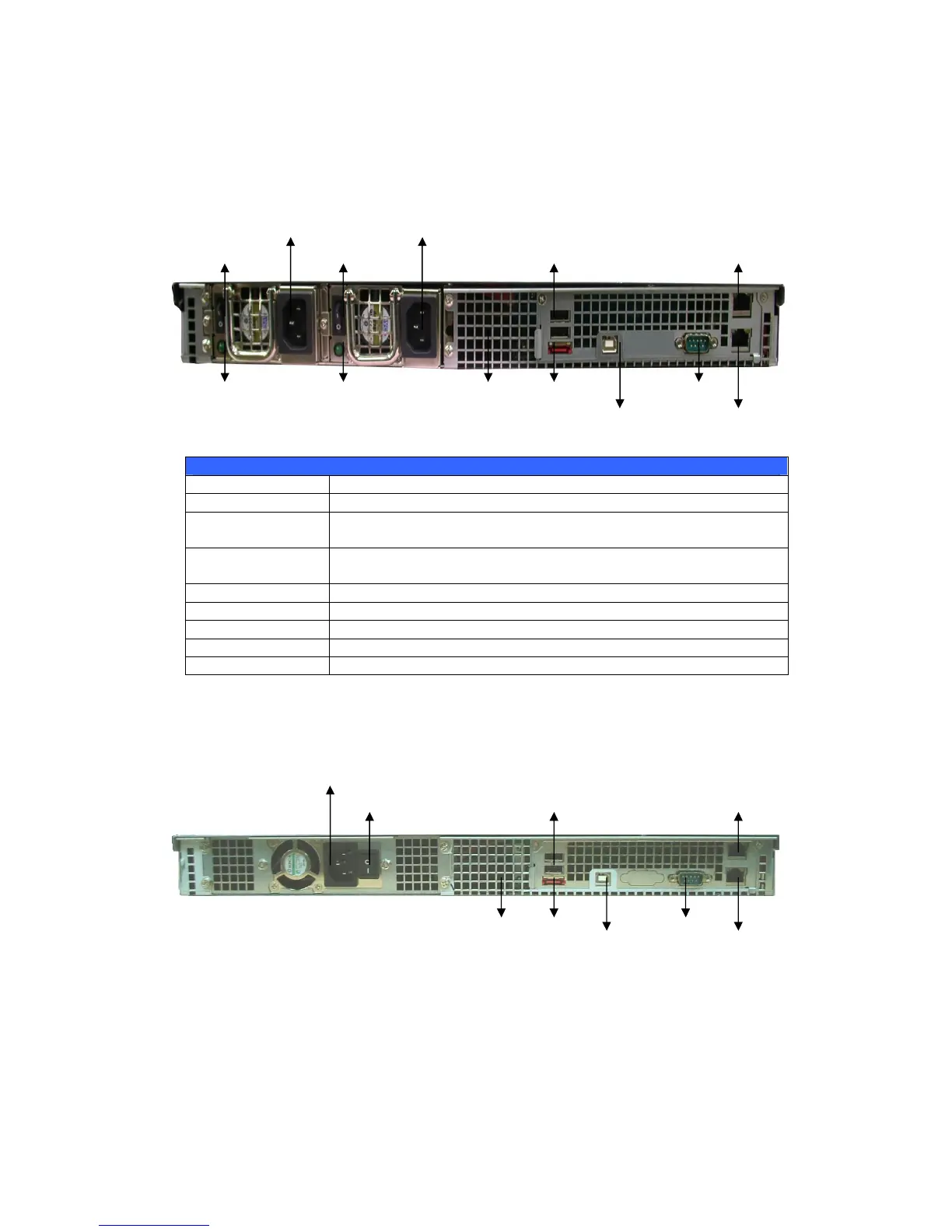

The rear panel of the 1U4600R houses most of the USB and Ethernet connections,
as well as the eSATA port, system fan, and power connector. See the table below for
descriptions of each:
Power Connector Power Connector
Power Switch Power Switch USB Ports (A Type) LAN2 Port
Power LED Power LED System Fan eSATA Port Serial Port
USB Ports (B Type) WAN/LAN1
Port
1U4600 Back Panel
Item Description
eSATA Port  eSATA port for high-speed storage expansion
USB Ports  USB 2.0 ports for compatible USB devices, such as digital
cameras, USB disks, and USB printers
WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router
LAN2 Port  LAN2 port that can be used for connection sharing
Power Switch  Switch for power supply
System Fan  System fan that exhausts heat from the unit
Serial Port  This port is for factory use only
Power Connector  Connect the included power cords to these connectors
1U4600S:
The rear panel of the 1U4600S is similar to the 1U4600R, but with a single power
connector:
Power Connector
Power Switch USB Ports (A Type) LAN2 Port
System Fan eSATA Port Serial Port
USB Ports (B Type) WAN/LAN1
Port

Thecus N0503 Specifications

General

RAID levels	0, 10, 1, JBOD, 5, 6
Storage drive size	3.5 \
Storage drive capacity	500 GB
Storage drive interface	Serial ATA
Storage drives installed	Yes
Installed storage drive type	-
Total installed storage capacity	1.5 TB
Maximum supported storage capacity	6 TB
Number of storage drives installed	3
Number of storage drives supported	5
Internal memory	1 GB
Internal memory type	DDR2
Processor family	Intel Atom®
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 7/2000/XP/2003/Vista Mac OSX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Power supply unit (PSU) capacity	96 W
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Stainless steel
Type	NAS
Device class	Home & Home Office
