N5500:

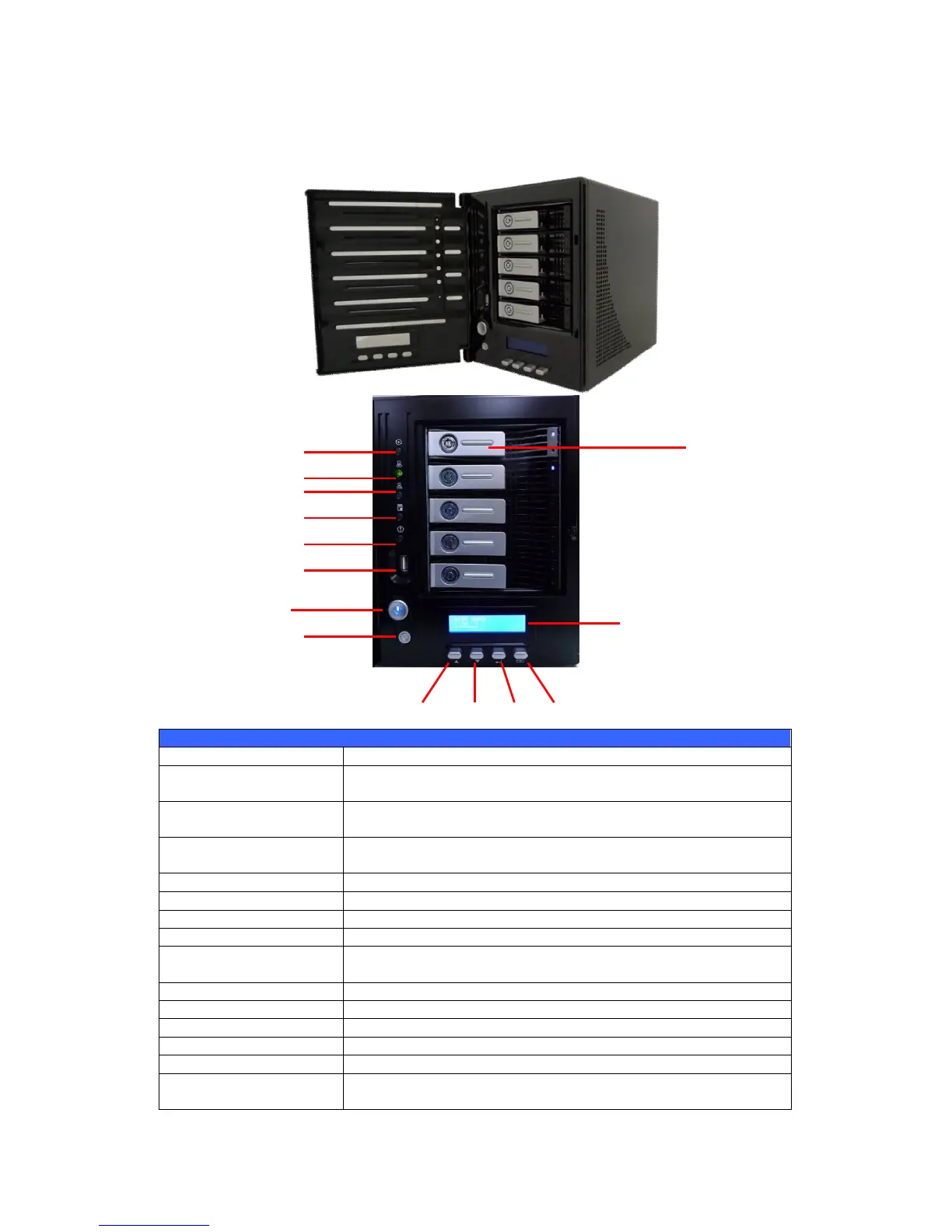

The Thecus N5500 front panel has the device’s controls, indicators, and hard disk
trays:
Front Panel
Item Description
1.System LED Blinking orange: system is being upgraded or system startup;
data currently inaccessible
2.WAN/LAN1 LED
Solid green: network link
Blinking green: network activity
3.LAN2 LED
Solid green: network link
Blinking green: network activity
4.USB Copy LED Solid blue: files are being copied from a USB storage device
5.Syetem Warning LED Solid RED: System error.
6.Reset Button Reset system configuration to default value.
7.USB Port USB 2.0 port for compatible USB devices, such as USB disks.
8.Power Button/ Power
LED
Power on/off N5500 and Power LED.
Solid blue: System is power on.
9.Up Button Push to scroll up when using the LCD display
10.Down Button Push to enter USB copy operation screen
11.Enter Button Push to enter LCD operate password for basic system setting
12.Escape Button ESC Push to leave the current LCD menu
13.LCD Display Displays current system status and warning messages
14.HDD Trays Five 3.5” SATA HDD trays
Locks are provided for added security
14
13
9
10 11 12
8
7
1
2
3
4
5
6
