Thermia ATEC Installation Guide

Avoid locating the outdoor unit:
▪
close to windows or walls to bedrooms etc.
▪
facing nearby neighbours.
▪
in an inner corner of the building. It gives a very large effect on the direction of sound propagation.
N
Adhere to national regulations regarding noise interference.

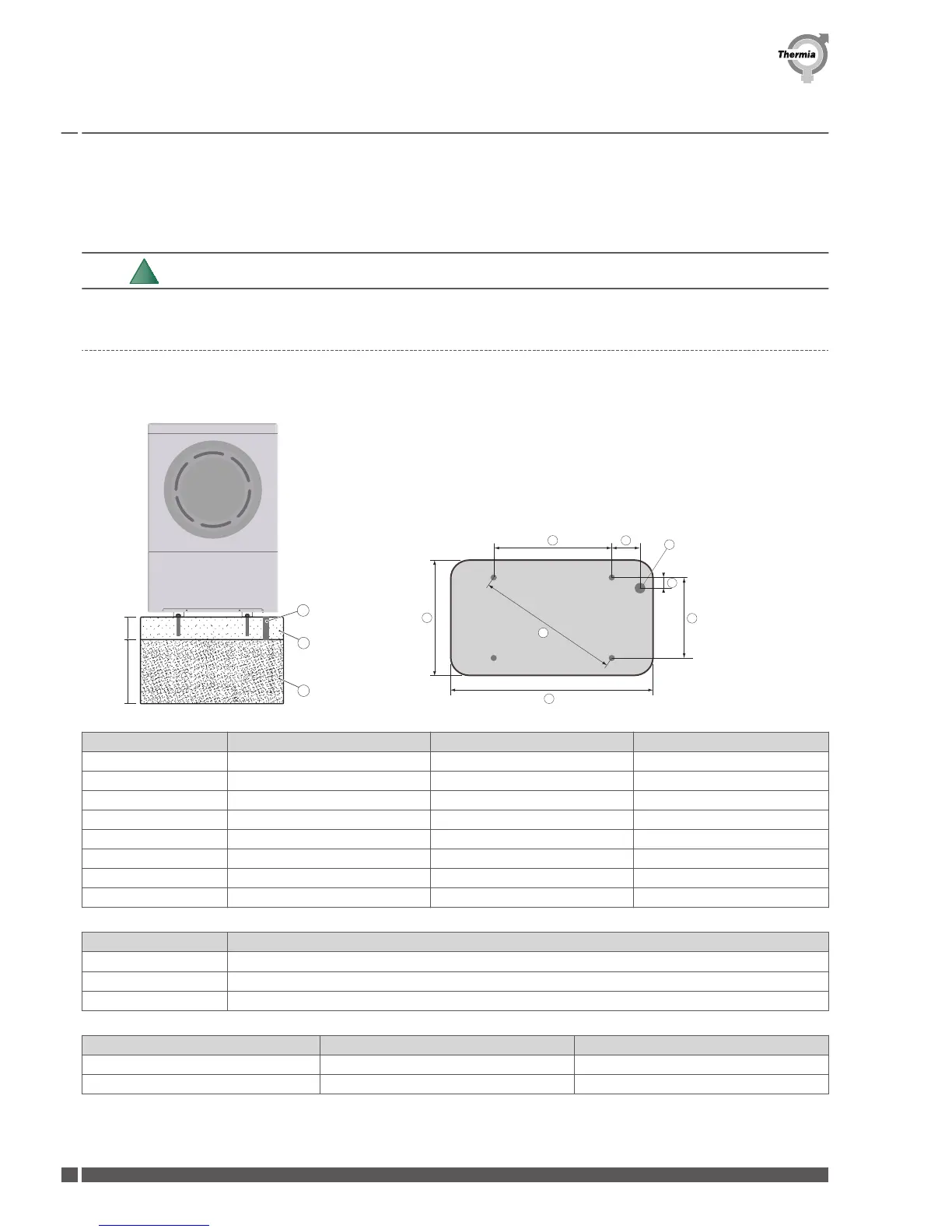

2.3.1 Heat pump foundation
1. The heat pump must be positioned outdoors on a stable base that can take the total weight of the heat pump, see Technical data.
2. Secure all four mounting points on a stable base, for example a cast foundation.
100 mm
~900 mm
b
c
a
7
5
4
3
6
1
8
2
Measurements
6-9 kW 11-13 kW 16-18 kW
1 450 mm 470 mm 710 mm
2 424 mm 480 mm 480 mm
3 618 mm 672 mm 857 mm
4 130 mm 190 mm 145 mm
5 61 mm 65 mm 65 mm
6 ~1,000 mm ~1,200 mm ~1300 mm
7 ~650 mm ~720 mm ~720 mm
8 Ø 65 mm Ø 65 mm Ø 65 mm
Position Description
a Drainage hole
b Foundation
c Gravel
Bolt size
6-9 kW 11-13 kW 16-18 kW
M10 (4x) M12 (4x) M12 (4x)
Installation Guide Atec
VMBQY102 Thermia Värmepumpar
8
