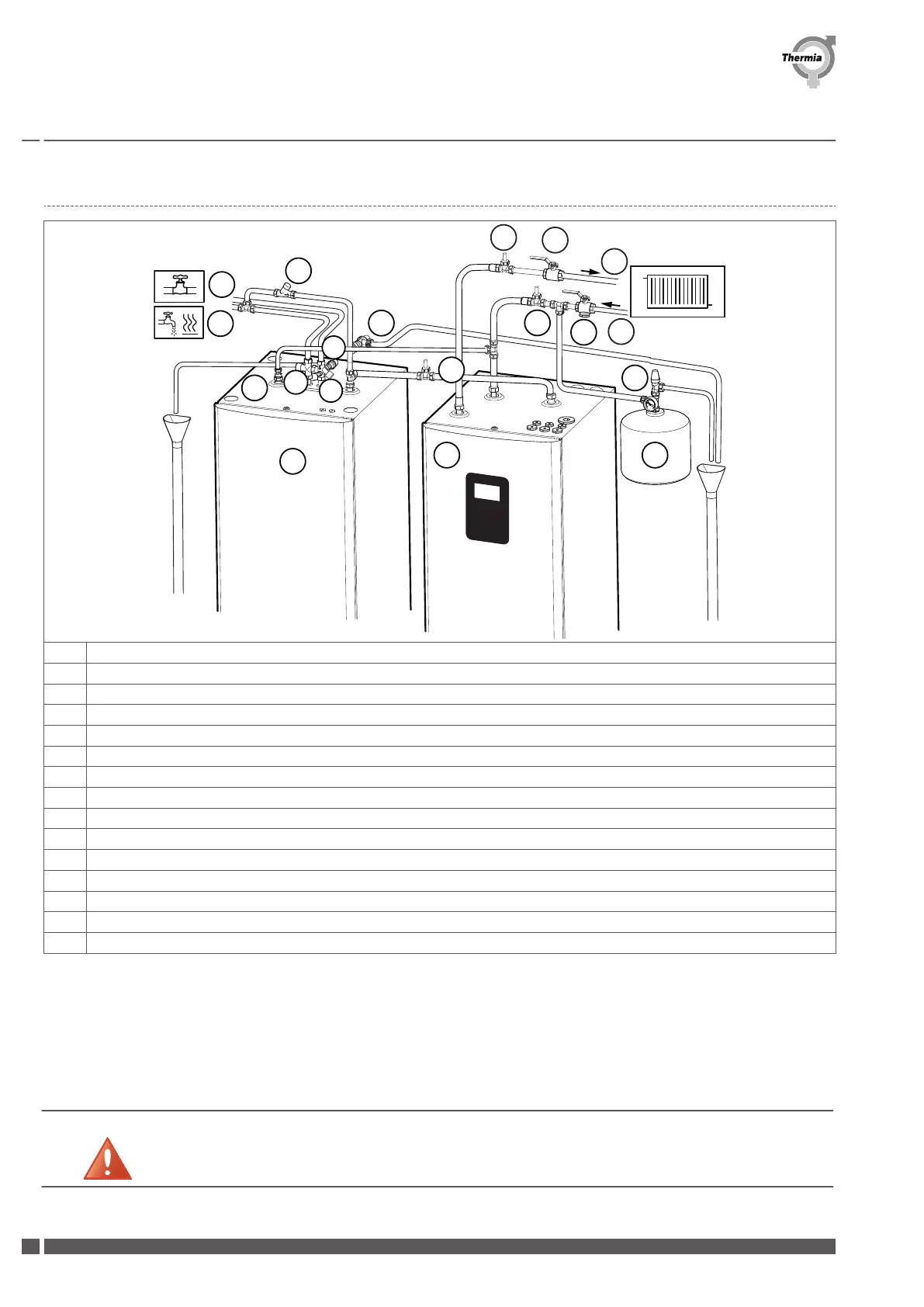

4.2 MBH 200, Atlas Duo & Calibra Duo
118
113
86
91
13
12
85
85
18
1
81
11
10
88
85
80
87
85
75
1 Heat pump
10 Heating system supply pipe
11 Heating system return pipe
12 Cold water line
13 Hot water line
18 Coil tank
75 Mixer valve hot water, with exchange valve**
80 Shut-off valve
81 Filling valve
85 Venting valve*
86 Safety valve (Max 3 bar, heat pump), recommended: 1,5 bar
87 Safety valve (9 bar, hot water)
88 Valve pipe (cold water)
91 Dirt strainer with shut-off valve, DN 25
113 Expansion vessel
Make sure that a free flow is always possible on the heating circuit. Very small water volumes or stop in the heating circuit may cause
operational disturbances.
*Note: On models with inbuilt HGW (Atlas) it has been found preferred by many installers to fit an automatic air bleeder in position 85*
on the hot water tank to avoid a later revisit to bleed the TWS coil. The reason why an automatic air bleeder may be more desired on the
TWS coil on HGW models is that the high temperatures will de-gass the water more efficiently than conventional technique.
Installation Guide Atlas & Calibra
BWCA01IG0202 Thermia AB
14
Warning **As the water temperature becomes hot (Atlas, up to 95°C), a mixer
valve must be installed between the cold water and hot water pipes
to en-sure a lower domestic hot water temperature.
