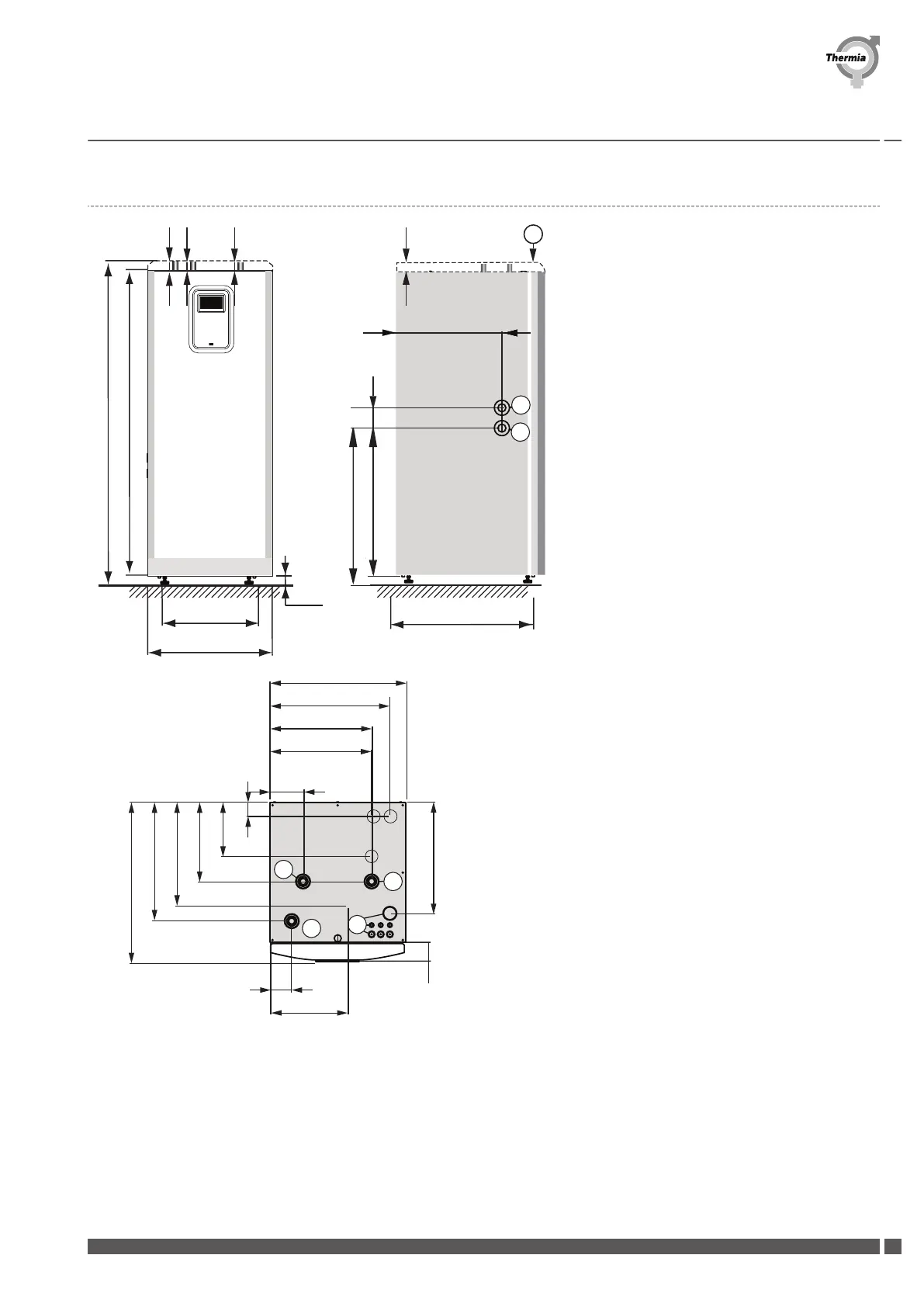

2.2 Atlas Duo and Calibra Duo
455
598
40 ±10
1450 (±10)
1360
686
701
75
726
498
85
3
5
6
4
600
526
449
445
148
240
350
455 523
710
64
92
343
493
1
2
48 40 53 40
7
1 Brine in, 28 mm (left or right)
2
Brine out, 28 mm (left or right)
3 Heating system supply pipe, 28 mm
4 Heating system return pipe, 28 mm
5 Connection for bleed valve, 28 mm
6 Lead-in for supply, sensor and communication
cables
7 Top hood, Atlas (accessory for Calibra)
The brine lines (1) and (2) can be connected on either
the
left or right-hand side or to the two knock out holes on
the top.
Installation Guide Atlas & Calibra
Thermia AB BWCA01IG0202
9
