Refrigeration Service Operations 11-16

Assembly/Installation

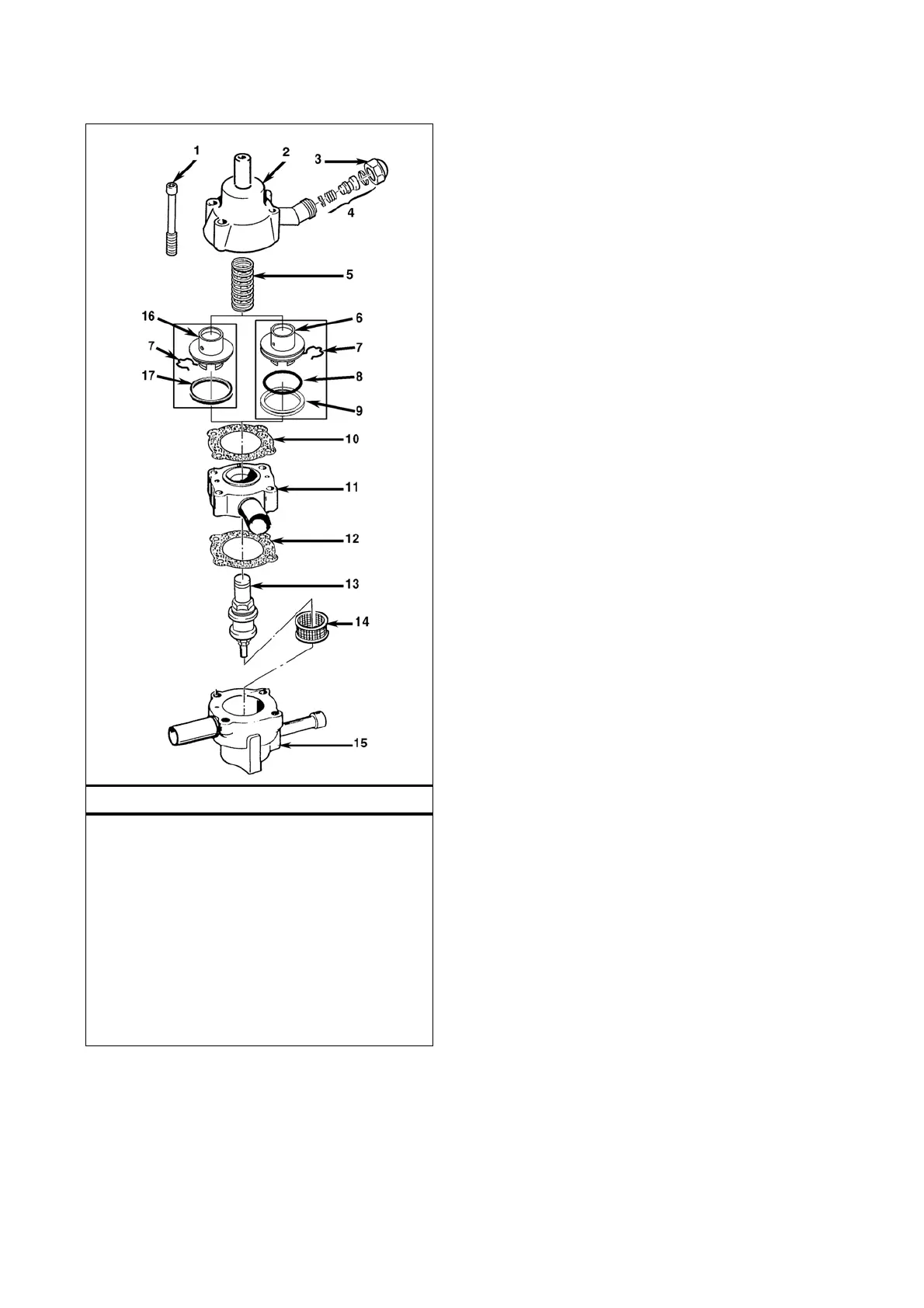

Three-Way Valve Assembly

1. Screw

2. Top Cap

3. Check Valve Cap

4. Check Valve Assembly

5. Spring

6. Piston (Valves built before 11/97)

7. Clip

8. Teflon Seal (Valves built before 11/97)

9. O-ring (Valves built before 11/97)

10. Gasket

11. Seat

12. Gasket

13. Stem Assembly

14. Screen

15. Bottom Cap

16. Piston for PTFE Seal (Valves built 11/97 and after)

17. PTFE Seal (Valves built 11/97 and after)
