Structural Maintenance
150

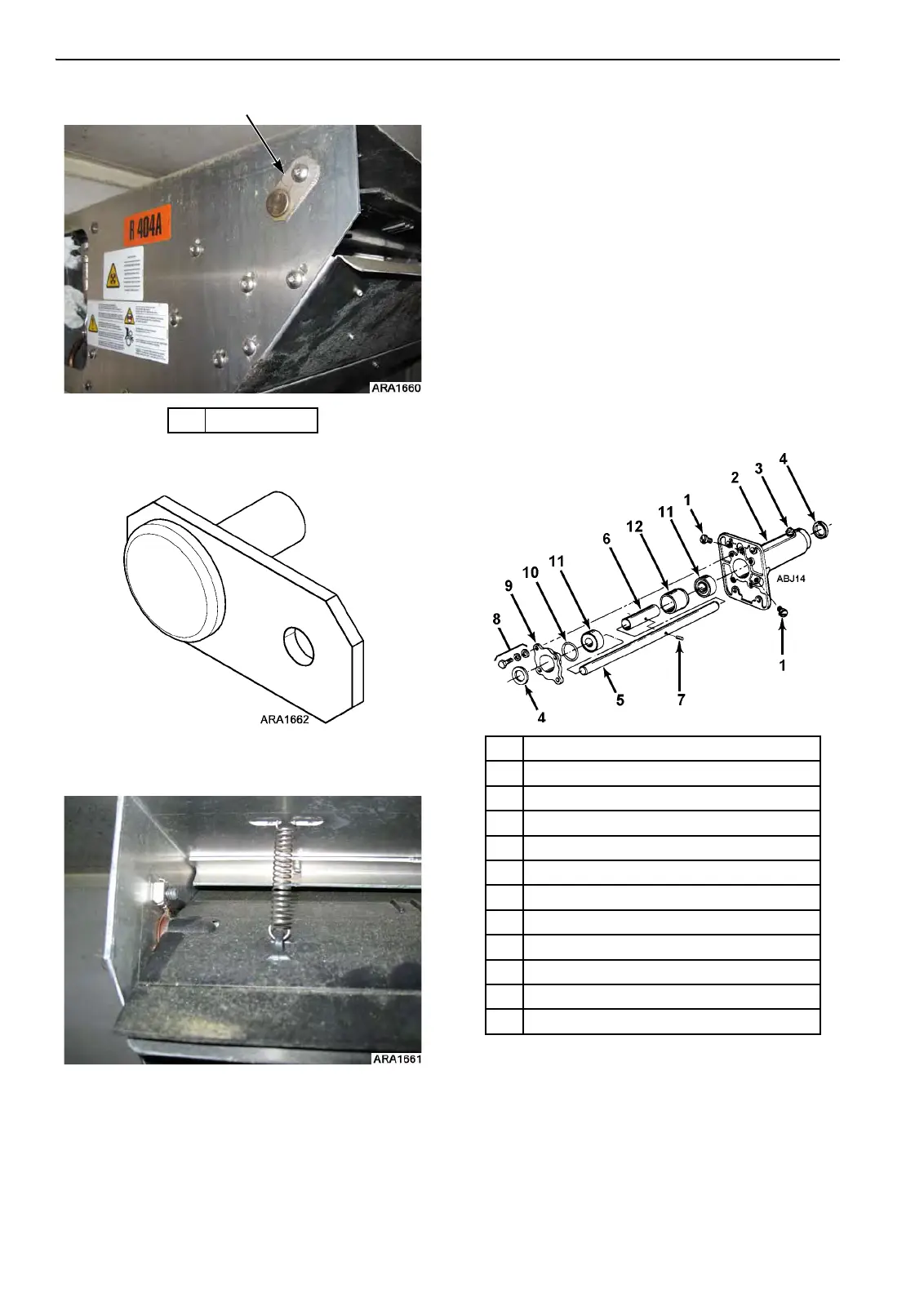

Figure 230: Close Up of Blade Pivot
Figure 231: End of Plastic Damper Blade
Fanshaft Assembly
The unit is equipped with one-piece fanshaft
assemblies that contain tapered roller bearings in a
sealed oil reservoir. A fanshaft assembly does not
require any maintenance. There is a level plug and
a fill plug, but they are not normally utilized
except after removal and repair of the fanshaft
assembly. The condenser end oil seal and the
evaporator end oil seal should be checked during
the pretrip inspection for oil leakage. If there is
any sign of leakage, the fanshaft assembly should
be removed and repaired.
NOTE: The fanshaft assembly requires a special
lubricant (P/N 203-278).
Disassembly
1. Remove the fanshaft assembly from the unit.
Remove both oil plugs and drain the oil from
the housing.
1. Blade Pivot
Figure 229: Blade Pivot Location
1. Oil Plug Screw with O-ring
2. Housing
3. Breather Vent
4. Oil Seal
5. Shaft
6. Sleeve
7. Pin
8. Screw with Flatwasher and Lockwasher
9. Cap and Shims
10. O-ring
11. Roller Bearing
12. Splash Guard Tube
Figure 232: Fanshaft Assembly
