External
beam
port

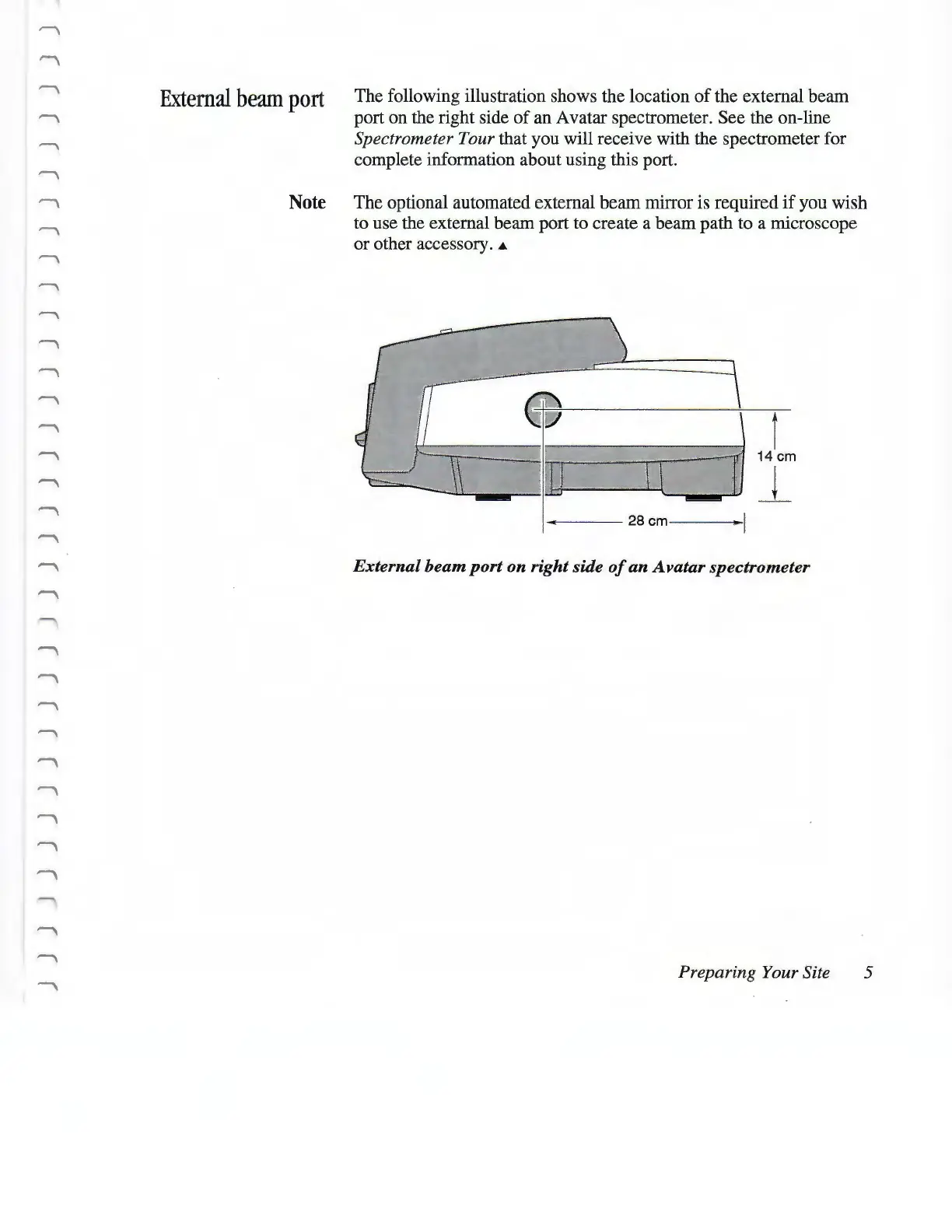

The following illustration shows the location
of
the external beam
port on the right side
of
an Avatar spectrometer. See the on-line
Spectrometer Tour that you will receive with the spectrometer for
complete information about using this port.
Note
The optional automated external beam mirror is required
if
you wish
to use the external beam port to create a beam path to a microscope
or other accessory. •
D
=J
t
nj
I f
14 cm
_i
\.
28cm
External
beam
port
on right side
of
an
Avatar
spectrometer
Preparing Your Site 5
