Centaurµs
microscopes
30 Nicolet
The Centaurµs microscope weighs approximately 30 kg (65 lb). The
beam port on the Centaurµs can attach
to
right side
of
an Avatar
spectrometer. When the beam port attachment is present, 7.6 cm
(3
in) is added to the width
of
the microscope.
In
addition,
if
the
optional eyepiece is installed, 11.5 cm (4.5 in) is added to the height.

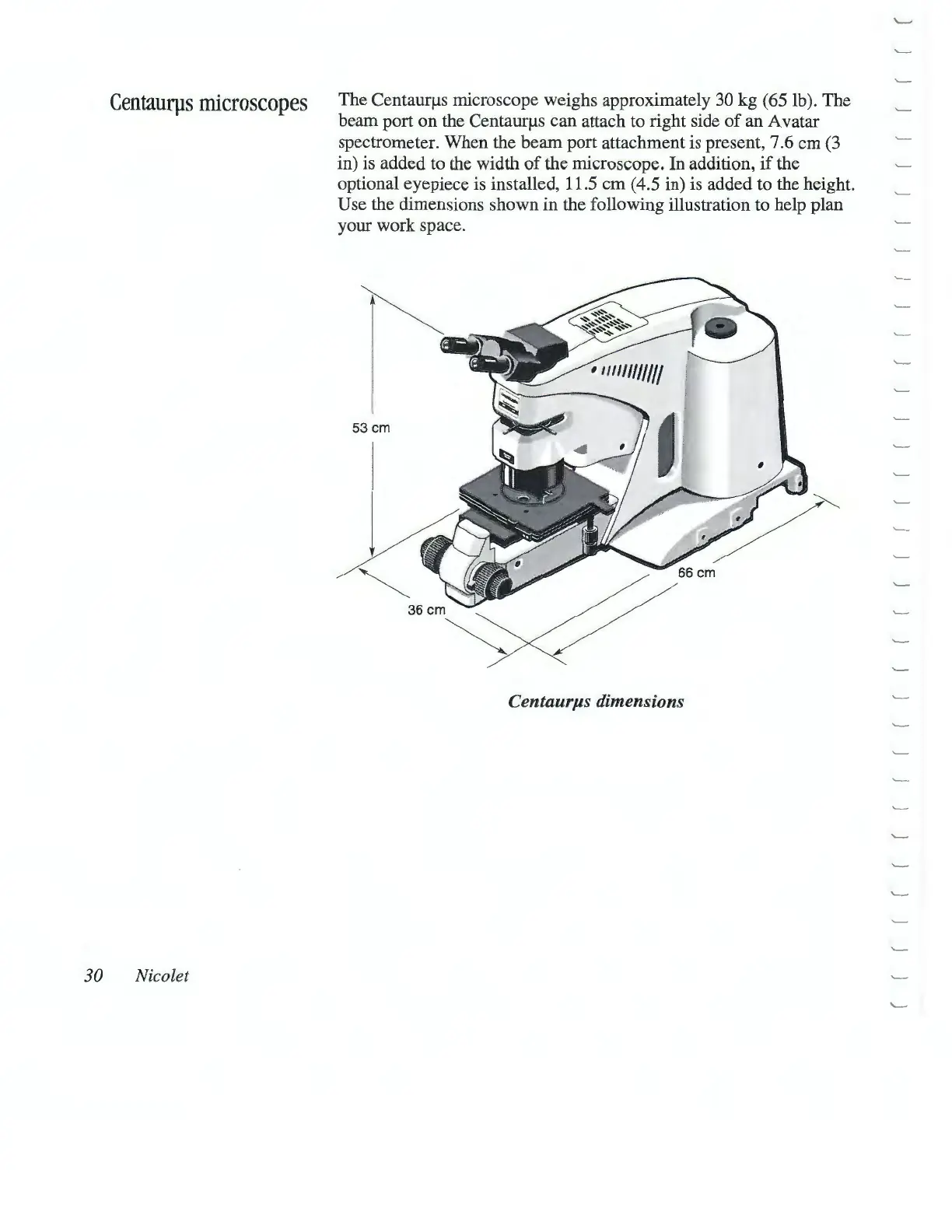

Use the dimensions shown in the following illustration to help plan
your work space.
53cm
66 cm
~
Centaurµs dimensions
