Sample
compartment
baseplate
dimensions
6 Nicolet
The following illustration shows the dimensions
of
the sample
compartment baseplate. See the on-line Spectrometer Tour and
Replacing Parts tutorials that you will receive with your spectrometer
for
complete information about installing
and
using
Snap-In™
baseplates.
Clearance to sample compartment
cover is approx. 18.5 cm (7.25 in)

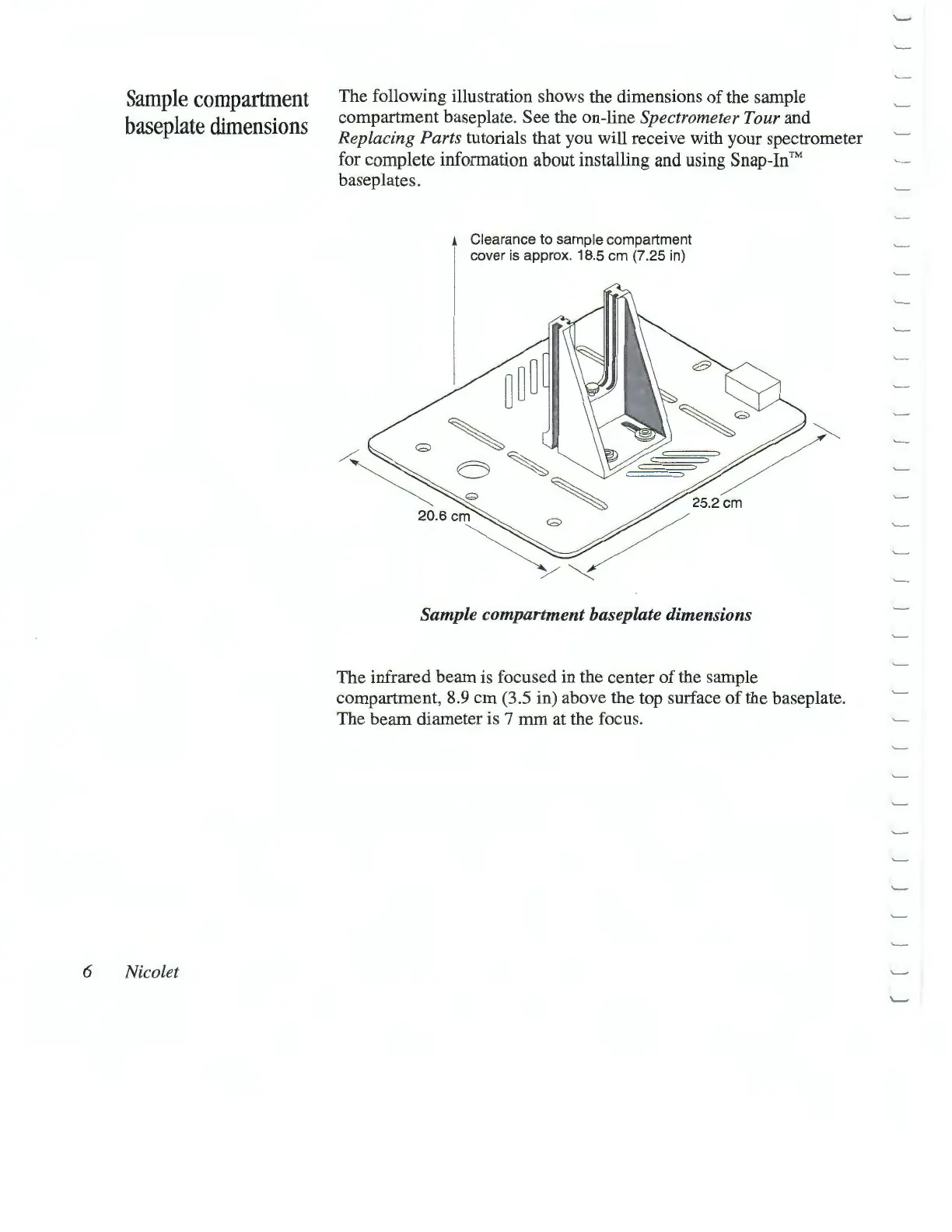

Sample compartment baseplate dimensions
The infrared beam is focused in the center
of
the sample
compartment, 8.9
cm
(3.5 in) above the top surface
of
the baseplate.
The beam diameter is 7
mm
at the focus.
