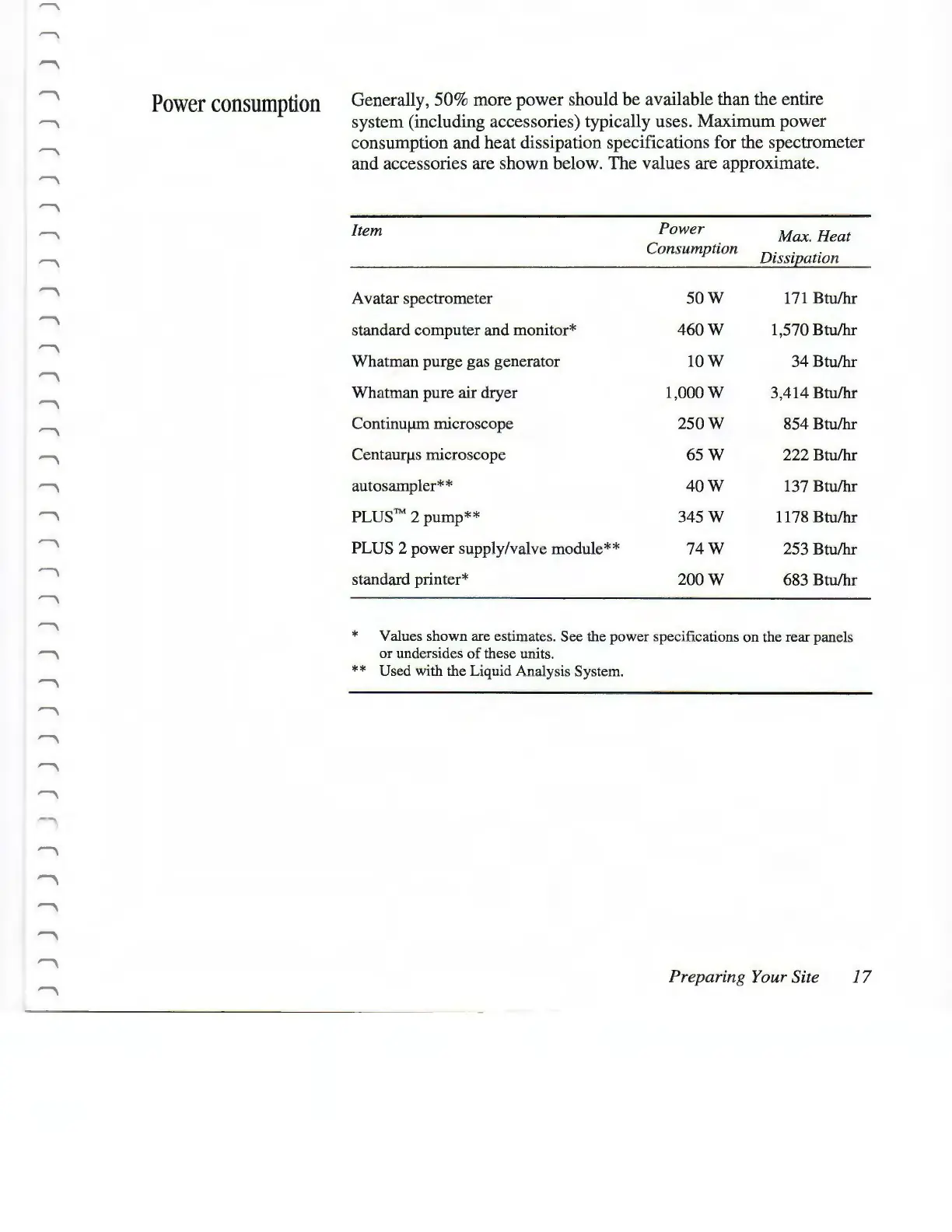

Power
consumption
Generally, 50% more power should be available than the entire
system (including accessories) typically uses. Maximum power
consumption and heat dissipation specifications for the spectrometer
and accessories are shown below. The values are approximate.
Item
Power
Max. Heat
Consumption
Dissipation
Avatar spectrometer
sow
171
Btu/hr
standard computer and monitor*
460W
1,570 Btu/hr
Whatman purge gas generator
lOW
34 Btu/hr
Whatman pure air dryer
l,000W
3,414 Btu/hr
Continuµm microscope
250W
854 Btu/hr
Centaurµs microscope
65W
222 Btu/hr
autosampler* *
40W
137 Btu/hr
PLUS™
2 pump**
345W
1178 Btu/hr
PLUS 2 power supply/valve module**
74W
253 Btu/hr
standard printer*
200W
683 Btu/hr
*
Values shown are estimates. See the power specifications on the rear panels
or undersides
of
these units.
**
Used with the Liquid Analysis System.
Preparing Your Site
17
