I _
45
.7
cm
I
i---
{18in)-
-~•-
Front
80cm
(31.5 in) _
__
__
0
0
D
Right Side

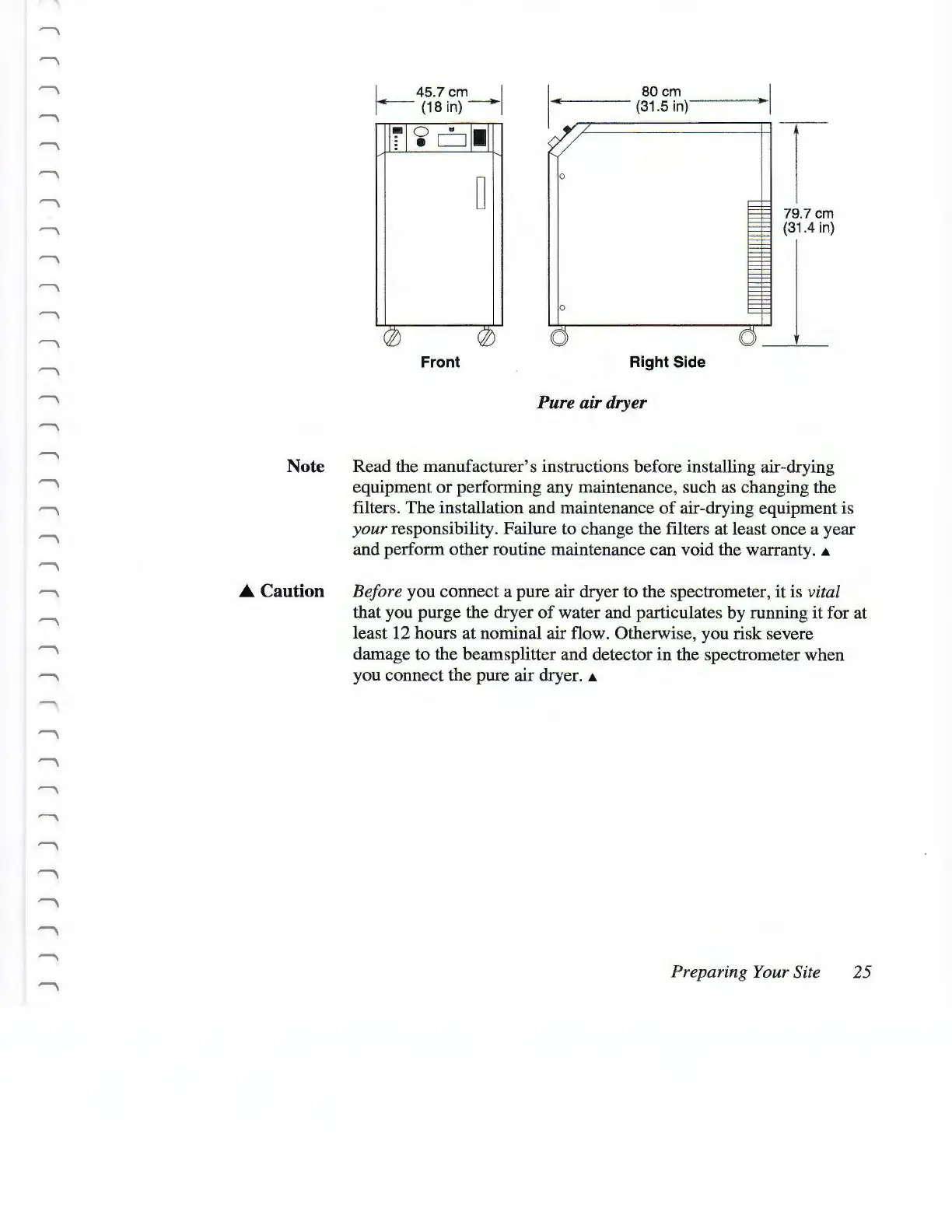

Pure air dryer
79.7 cm
(31.4
in)
Note Read the manufacturer's instructions before installing air-drying
equipment
or
performing any maintenance, such
as
changing the
filters. The installation and maintenance
of
air-drying equipment is
your responsibility. Failure to change the filters at least once a year
and perform other routine maintenance can void the warranty .
.a.
...._
Caution Before you connect a pure air dryer to the spectrometer, it is vital
that you purge the dryer
of
water and particulates by running it for at
least 12 hours at nominal air flow. Otherwise, you risk severe
damage to the beamsplitter and detector in the spectrometer when
you connect the pure air dryer .
.a.
