27

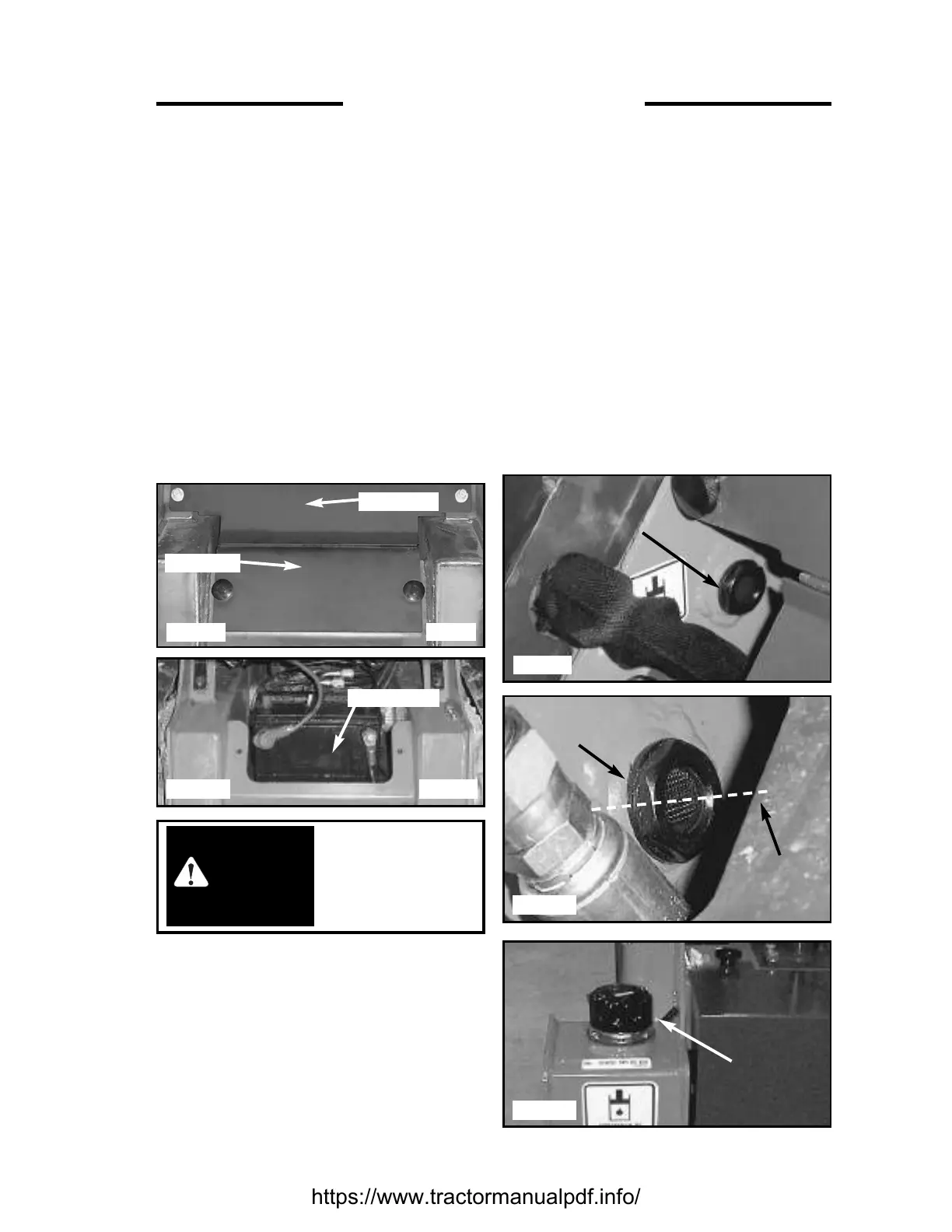

4. MAINTENANCE
4.5 BATTERY MAINTENANCE
NOTE: Raise lift arms and apply lift arm support
device. See section 4.4.
1. Remove the access panel by removing the two
black knobs (See Figs. 4.5 & 4.5A).
2. Check the battery hold down bracket for
tightness. Do not overtighten.
3. Remove any acid corrosion from the battery
terminals and cables with baking soda and
water solution. Coat the terminals with a
dielectric grease.
4. Ensure boot is securely in place over positive
(+) terminal.
SIGHT
GLASS
DESIRED
OIL LEVEL
SIGHT
GLASS
C4157
C4156
4.6 HYDRAULIC/HYDROSTATIC
SYSTEM MAINTENANCE
HYDRAULIC OIL LEVEL CHECK
1. Ensure that the Mini-Skid is standing level, the
lift arms are down and the tilt cylinder is closed.
2. Check visible oil level in sight glass, located on
the left hand side of the operator’s area. A dark
color indicates oil presence (See Figs. 4.6 &
4.6A).
3. If it’s necessary to add oil, remove the reservoir
cap (See Fig. 4.6B) and add oil until it appears
approximately half full in the sight glass. Use a
good quality 10W30 oil which meets the API
classification SE/CD.
BATTERYACCESS
PANEL
BATTERY
C4163
Fig. 4.5
C4164
Never work under lift
arms without the lift
arm support engaged
in the raised position.
WARNING
OIL RESERVOIR
CAP
Fig. 4.5A
Fig. 4.6
Fig. 4.6A
Fig. 4.6B
UPPER
LOWER
